Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 27.5" -
Travel Front 140mm -
Fork Cane Creek HELM
-
Groupset XTR -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Cane Creek Helm Works 140mm
Drivetrain
Rear Derailleur
Shimano XTR RD-M9100 12 Speed Rear Derailleur SGS Cage(Long)
Shift Levers
Shimano XTR M9100 Right I-Spec EV 12 Speed Shifter
Cassette
Shimano XTR CS-M9100 12 Speed Cassette 10-51t
Crank
Shimano XTR FC-M9120 Crank Arms 175mm
Bottom Bracket
Shimano XTR BB93 Bottom Bracket
Chain
Shimano CN-M9100 Chain - 12 Speed
Wheels
Rims
WTB KOM Rims wih i9 1/1 Hubs
Tires
Kenda Nevegal 2 Pro ATC 29"x2.4" or Kenda Havok Pro 27.5"x3.0"
Cockpit
Stem
FSA Omega stem +/- 6° Rise
Handlebar
Afterburner Low Rise Handlebar 31.8 x 15 x 740mm Black
Headset
Cane Creek 40 IS42/28.6 - IS52/40
Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.5 mm | 1.43 mm | 1.34 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm | 294 mm |
| Front Center | 727 mm | 747 mm | 773 mm | 806 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 100 mm | 100 mm | 100 mm | 99 mm |
| Stack | 640 mm | 640 mm | 644 mm | 648 mm |
| Reach | 406 mm | 426 mm | 450 mm | 482 mm |
| Top Tube Length | 591 mm | 611 mm | 637 mm | 671 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 375 mm | 410 mm | 455 mm | 505 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 111 mm | 111 mm | 116 mm | 120 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1157 mm | 1177 mm | 1202 mm | 1237 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 703 mm | 728 mm | 761 mm | 804 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

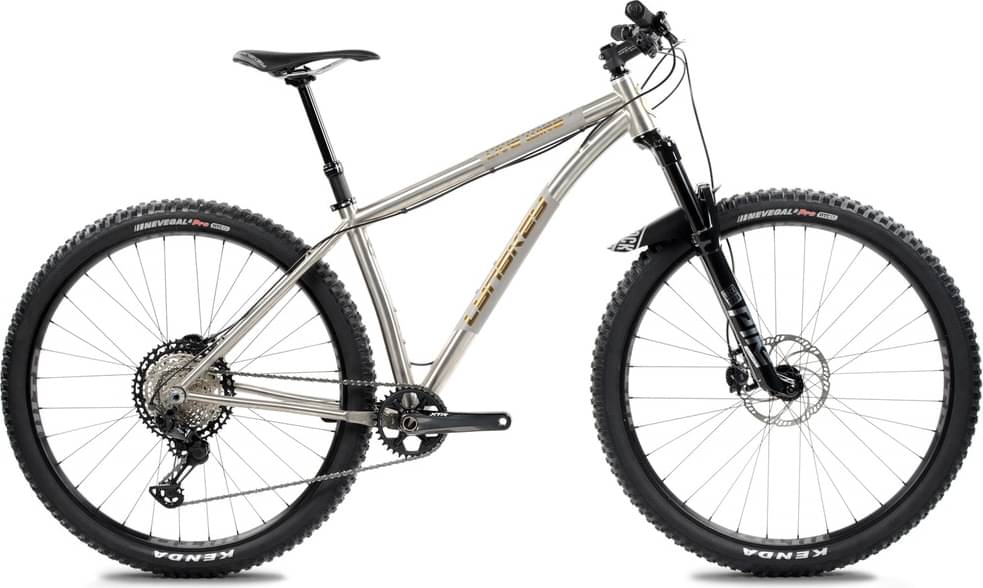

Live Wire Shimano XTR 1×12 belongs to the Lynskey Live model. Lynskey released 35 bikes variations of this model so far. You can easily view all of the Lynskey Live bikes models from 2021, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
The Live Wire Shimano XTR 1×12 comes factory-installed with the Cane Creek HELM fork. This has a travel range of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Lynskey Live Wire Shimano XTR 1×12 2021, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Live Wire Shimano XTR 1×12 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Lynskey Live Wire Shimano XTR 1×12 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
