Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 27.5" -
Travel Front 130mm -
Fork Cane Creek HELM
-
Groupset NX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Cane Creek Helm Works 130mm
Drivetrain
Rear Derailleur
SRAM NX Eagle Rear Derailleur - 12 Speed, Long Cage
Shift Levers
SRAM NX Eagle Trigger Shifter - 12 Speed - Discrete Clamp
Cassette
SRAM PG-1230 GX Eagle Cassette 11-50t, 12 Speed
Crank
SRAM NX Eagle DUB Boost 148, 175mm, 32t Crankset
Bottom Bracket
SRAM DUB Bottom Bracket English Threaded 73mm
Chain
SRAM NX Eagle 12-Speed Chain, with PowerLock
Wheels
Rims
Stans Arch 27.5 or Stans Arch 29
Tires
Kenda Nevegal 2 Tire 29x2.4 or Kenda Havok Pro 27.5x3.0
Brakes
Brake Levers
Magura MT4 Brake Lever with MT4 Disc Caliper
Disk Rotors
Magura Storm SL 160mm Rotor
Cockpit
Stem
FSA Omega stem +/- 6° Rise
Handlebar
FSA Comet Low Rise Handlebars
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Black
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.53 mm | 1.46 mm | 1.41 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm | 294 mm |
| Front Center | 677 mm | 706 mm | 738 mm | 762 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 86 mm | 88 mm |
| Stack | 627 mm | 629 mm | 638 mm | 648 mm |
| Reach | 382 mm | 410 mm | 438 mm | 459 mm |
| Top Tube Length | 569 mm | 598 mm | 629 mm | 653 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 394 mm | 432 mm | 470 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 111 mm | 114 mm | 123 mm | 134 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1108 mm | 1137 mm | 1170 mm | 1194 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 781 mm | 806 mm | 832 mm | 883 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

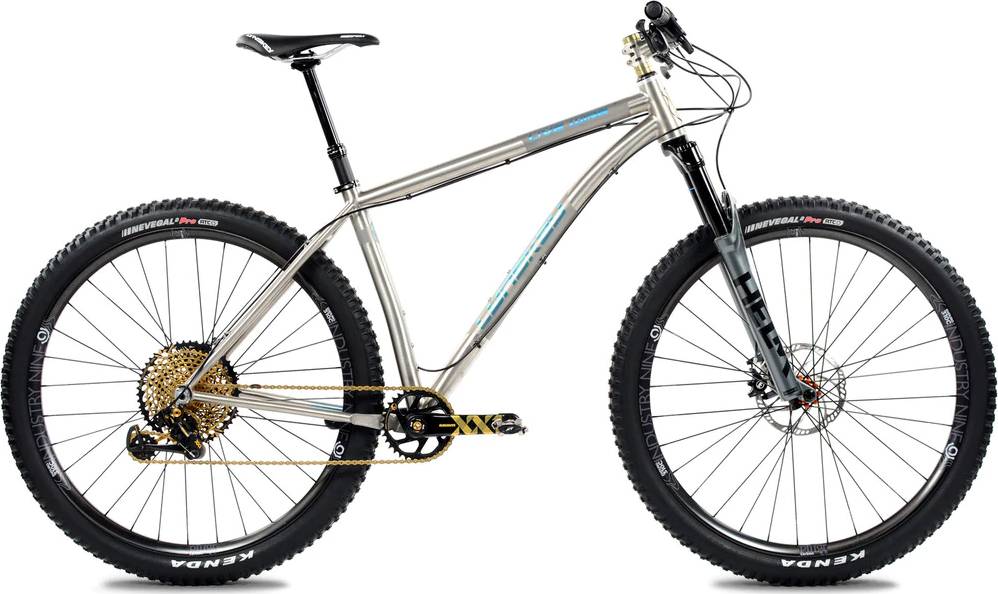

About this model
Live Wire SRAM NX Eagle 1×12 is part of the Lynskey Live model. 35 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Live Wire SRAM NX Eagle 1×12 components
Fork
The Cane Creek HELM is included from the factory. It has a travel distance of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the Live Wire SRAM NX Eagle 1×12 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
