Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 27.5" -
Travel Front 130mm -
Fork Cane Creek HELM
-
Groupset X01 Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Cane Creek Helm Works 130mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle Rear Derailleur - 12 Speed, Long Cage, Lunar
Shift Levers
SRAM X01 Eagle Trigger Shifter - 12 Speed - Discrete Clamp, Lunar
Cassette
SRAM XG-1295 X01 Eagle Cassette 10-52t, 12 Speed, Black
Crank
SRAM X01 Eagle Carbon DUB Boost 148, 175mm, 32t Crankset, Black
Bottom Bracket
SRAM DUB Bottom Bracket English Threaded 73mm
Chain
SRAM X01 Eagle 12-Speed Chain, with PowerLock
Wheels
Rims
Stan's Flow MK3
Tires
Kenda Nevegal 2 Pro ATC 29"x2.4" or Kenda Havok Pro 27.5"x3.0"
Brakes
Brake Levers
Magura MT8 Brake Lever with MT8 Disc Caliper
Cockpit
Stem
FSA Omega stem +/- 6° Rise
Handlebar
Afterburner Low Rise Handlebar 31.8 x 15 x 740mm Black
Headset
Cane Creek 40 IS 42/28.6 - IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Black
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.53 mm | 1.46 mm | 1.41 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm | 294 mm |
| Front Center | 677 mm | 706 mm | 738 mm | 762 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 86 mm | 88 mm |
| Stack | 627 mm | 629 mm | 638 mm | 648 mm |
| Reach | 382 mm | 410 mm | 438 mm | 459 mm |
| Top Tube Length | 569 mm | 598 mm | 629 mm | 653 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 394 mm | 432 mm | 470 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 111 mm | 114 mm | 123 mm | 134 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1108 mm | 1137 mm | 1170 mm | 1194 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 781 mm | 806 mm | 832 mm | 883 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

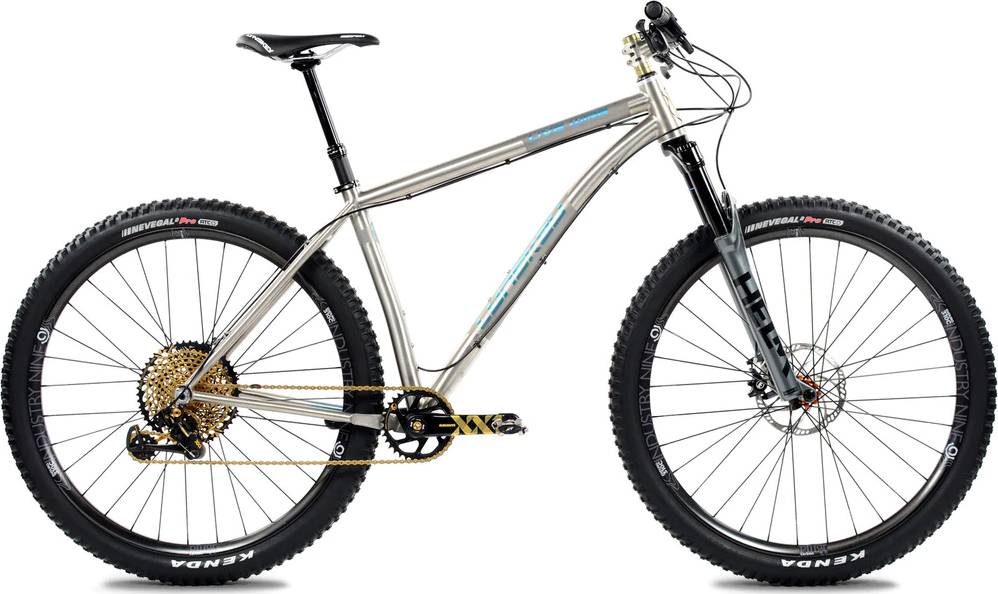

Live Wire SRAM X01 Eagle 1×12 is part of the Lynskey Live model. Lynskey launched 35 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Live Wire SRAM X01 Eagle 1×12 components
Fork
This bike has the Cane Creek HELM fork installed. The fork’s travel is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the Live Wire SRAM X01 Eagle 1×12 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Lynskey Live Wire SRAM X01 Eagle 1×12 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
