Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 27.5" -
Travel Front 140mm -
Fork Cane Creek HELM
-
Groupset XX1 Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Cane Creek Helm Works 140mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS Rear Derailleur - 12 Speed, Long Cage
Shift Levers
SRAM XX1 Eagle AXS Trigger Shifter - 12 Speed - Discrete Clamp
Cassette
SRAM XG-1299 XX1 Eagle Cassette 10-52t, 12 Speed, Rainbow
Crank
SRAM XX1 Eagle AXS Carbon DUB Boost 148, 175mm, 34t Crankset
Bottom Bracket
SRAM DUB Bottom Bracket English Threaded 73mm
Chain
SRAM Eagle 12-Speed Chain, with PowerLock, Rainbow
Wheels
Rims
WTB KOM Rims wih i9 1/1 Hubs
Tires
Kenda Nevegal 2 Pro ATC 29"x2.4" or Kenda Havok Pro 27.5"x3.0"
Brakes
Brake Levers
Magura MT8 Brake Lever with MT8 Disc Caliper
Cockpit
Stem
FSA Omega Stem +/- 6° Rise
Handlebar
Afterburner Low Rise Handlebar 31.8 x 15 x 740mm Black
Headset
Cane Creek 40 IS 42/28.6 - IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.5 mm | 1.43 mm | 1.34 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm | 294 mm |
| Front Center | 727 mm | 747 mm | 773 mm | 806 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 100 mm | 100 mm | 100 mm | 99 mm |
| Stack | 640 mm | 640 mm | 644 mm | 648 mm |
| Reach | 406 mm | 426 mm | 450 mm | 482 mm |
| Top Tube Length | 591 mm | 611 mm | 637 mm | 671 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 375 mm | 410 mm | 455 mm | 505 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 111 mm | 111 mm | 116 mm | 120 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1157 mm | 1177 mm | 1202 mm | 1237 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 703 mm | 728 mm | 761 mm | 804 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

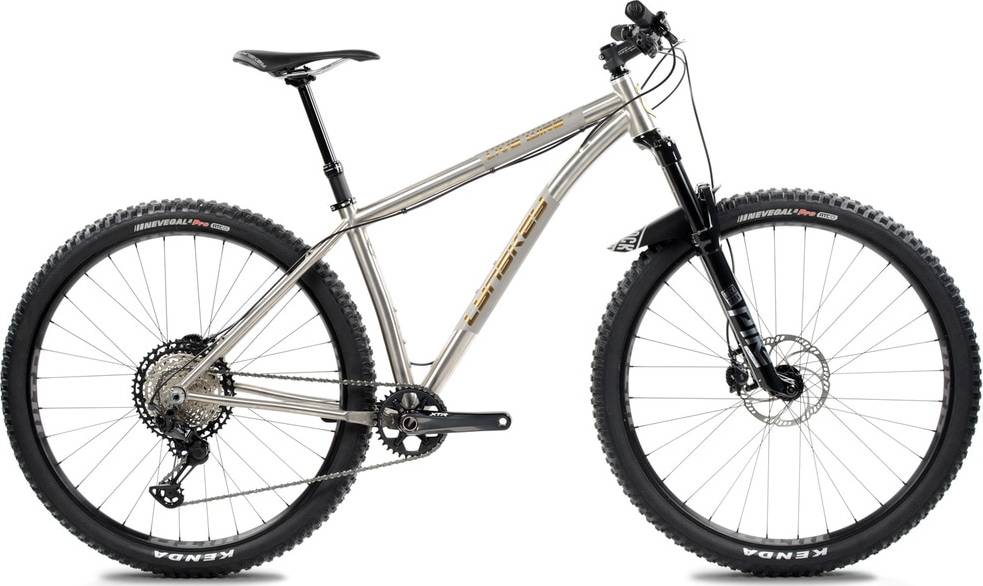

Live Wire SRAM XX1 Eagle AXS 1×12 is part of the Lynskey Live model. There are 35 bikes that carry this model name. Take a sneak peek at all Lynskey Live bikes models from 2020, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Live Wire SRAM XX1 Eagle AXS 1×12 components
Fork
The Cane Creek HELM is included from the factory. It has a travel distance of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Lynskey Live Wire SRAM XX1 Eagle AXS 1×12 2020, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Live Wire SRAM XX1 Eagle AXS 1×12 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Lynskey Live Wire SRAM XX1 Eagle AXS 1×12 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
