Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Titanium -
Wheels 27.5" -
Fork Cane Creek HELM -
Groupset XTR -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Cane Creek Helm MKII Air
Drivetrain
Rear Derailleur
Shimano XTR RD-M9100 12 Speed Rear Derailleur SGS Cage (Long)
Shift Levers
Shimano XTR M9100 Right I-Spec EV 12 Speed Shifter
Cassette
Shimano XTR CS-M9100 12 Speed Cassette 10-51t
Crank
Shimano XTR FC-M9120 Crank Arms 175mm
Bottom Bracket
Shimano XTR BB93 Bottom Bracket
Chain
Shimano CN-M9100 Chain - 12 Speed
Wheels
Rims
WTB KOM Rims with i9 1/1 Hubs
Tires
Kenda Nevegal2 Pro ATC 120tpi, 27.5x2.4
Cockpit
Stem
FSA Omega stem +/- 6° Rise
Handlebar
FSA Comet Low Rise Handlebars
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Black
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.37 mm | 1.33 mm | 1.33 mm | 1.33 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 665 mm | 680 mm | 697 mm | 719 mm | 742 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 93 mm | 92 mm | 93 mm | 93 mm | 93 mm |
| Stack | 583 mm | 583 mm | 586 mm | 606 mm | 626 mm |
| Reach | 411 mm | 426 mm | 441 mm | 456 mm | 471 mm |
| Top Tube Length | 582 mm | 596 mm | 612 mm | 634 mm | 655 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 355 mm | 394 mm | 432 mm | 470 mm | 533 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 108 mm | 108 mm | 111 mm | 133 mm | 154 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1098 mm | 1114 mm | 1130 mm | 1153 mm | 1175 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 697 mm | 729 mm | 755 mm | 786 mm | 840 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

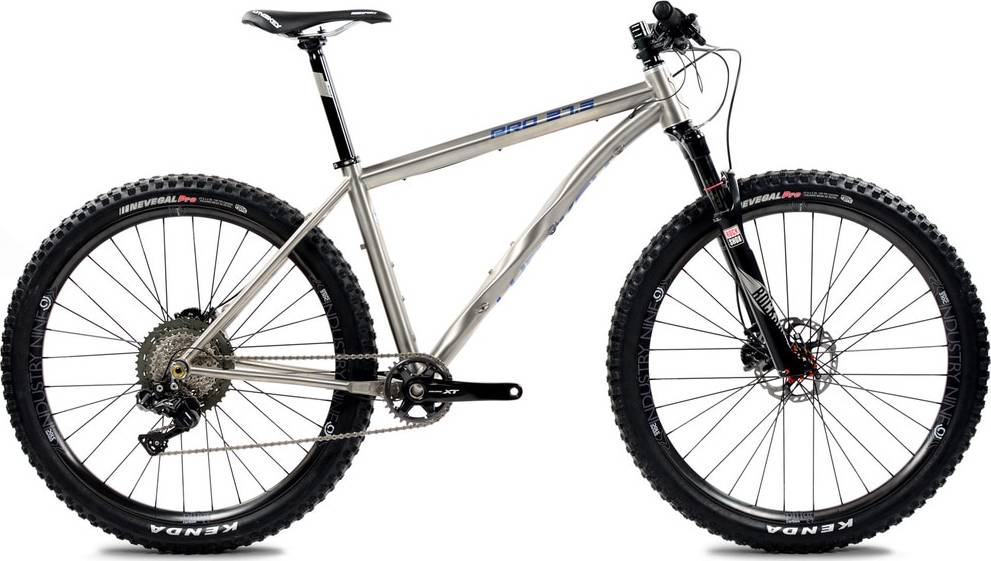

PRO 27.5 Shimano XTR 1×12 is part of the Lynskey Pro Shimano model. Lynskey released 14 bikes variations of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
The Cane Creek HELM is included from the factory. It has a travel distance of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on PRO 27.5 Shimano XTR 1×12 are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The PRO 27.5 Shimano XTR 1×12 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Lynskey PRO 27.5 Shimano XTR 1×12 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
