Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Titanium -
Wheels 27.5" -
Fork Cane Creek HELM -
Groupset XX1 Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Cane Creek Helm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle Rear Derailleur - 12 Speed, Long Cage, Lunar
Shift Levers
SRAM XX1 Eagle Trigger Shifter - 12 Speed - Discrete Clamp, Lunar
Cassette
SRAM XG-1299 XX1 Eagle Cassette 10-52t, 12 Speed, Copper
Crank
SRAM XX1 Eagle Carbon DUB Boost 148, 175mm, 34t Crankset, Black
Bottom Bracket
SRAM DUB Bottom Bracket English Threaded 73mm
Chain
SRAM XX1 Eagle 12-Speed Chain, with PowerLock, Copper
Wheels
Rims
WTB KOM Rims with i9 1/1 Hubs
Tires
Kenda Nevegal2 Pro ATC 120tpi, 27.5x2.4
Brakes
Brake Levers
Magura MT8 Brake Lever with MT8 Disc Caliper
Disk Rotors
Magura Storm SL 160mm Rear Rotor
Cockpit
Stem
FSA Omega stem +/- 6° Rise
Handlebar
FSA Comet Low Rise Handlebars
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Black
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.37 mm | 1.33 mm | 1.33 mm | 1.33 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 665 mm | 680 mm | 697 mm | 719 mm | 742 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 93 mm | 92 mm | 93 mm | 93 mm | 93 mm |
| Stack | 583 mm | 583 mm | 586 mm | 606 mm | 626 mm |
| Reach | 411 mm | 426 mm | 441 mm | 456 mm | 471 mm |
| Top Tube Length | 582 mm | 596 mm | 612 mm | 634 mm | 655 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 355 mm | 394 mm | 432 mm | 470 mm | 533 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 108 mm | 108 mm | 111 mm | 133 mm | 154 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1098 mm | 1114 mm | 1130 mm | 1153 mm | 1175 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 697 mm | 729 mm | 755 mm | 786 mm | 840 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

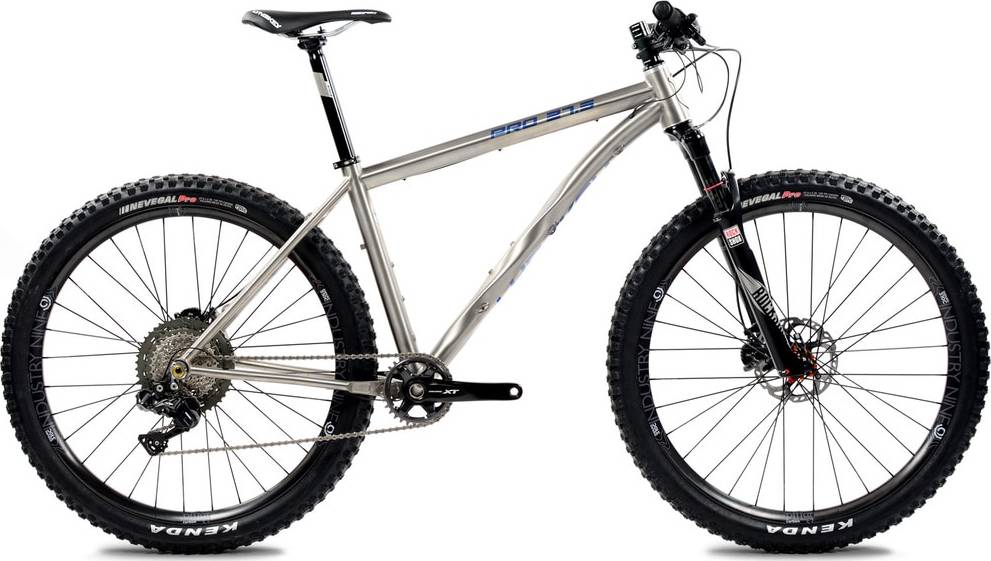

PRO 27.5 SRAM XX1 Eagle 1×12 belongs to the Lynskey Pro Sram model. Lynskey launched 22 bikes of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The fork installed on this bike is the Cane Creek HELM model. The travel on this model is mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on PRO 27.5 SRAM XX1 Eagle 1×12 are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The PRO 27.5 SRAM XX1 Eagle 1×12 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
