Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 29" -
Travel Front 120mm -
Fork Cane Creek HELM
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Cane Creek Helm MKII Air 120mm
Drivetrain
Rear Derailleur
SRAM GX Eagle 12 speed Lunar Max 52T
Shift Levers
SRAM GX Eagle Trigger Shifter - 12 Speed - Discrete Clamp
Cassette
SRAM XG-1275 Eagle 10-52 12 speed Black
Crank
SRAM GX Eagle DUB 12s 175 w Direct Mount 32t X-SYNC 2- Lunar
Bottom Bracket
SRAM DUB Bottom Bracket English Threaded 73mm
Chain
SRAM GX Eagle 12-Speed Chain, with PowerLock
Wheels
Rims
WTB KOM Rims with i9 1/1 Hubs
Tires
Kenda Nevegal 2 Tire 29x2.4 or Kenda Havok Pro 27.5x3.0
Brakes
Brake Levers
Magura MT8 Brake Lever with MT8 Disc Caliper
Disk Rotors
Magura Storm SL 180mm Front Rotor, 160mm Rear Rotor
Cockpit
Stem
FSA Omega stem +/- 6° Rise
Handlebar
FSA Comet Low Rise Handlebars
Headset
Cane Creek 40 IS 42/28.6 - IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Black
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.48 mm | 1.44 mm | 1.4 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 699 mm | 714 mm | 731 mm | 747 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 101 mm | 101 mm | 100 mm | 101 mm |
| Stack | 634 mm | 634 mm | 638 mm | 642 mm |
| Reach | 414 mm | 429 mm | 444 mm | 459 mm |
| Top Tube Length | 598 mm | 613 mm | 629 mm | 645 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 432 mm | 470 mm | 533 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 108 mm | 108 mm | 112 mm | 116 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1131 mm | 1146 mm | 1163 mm | 1179 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 715 mm | 751 mm | 778 mm | 890 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

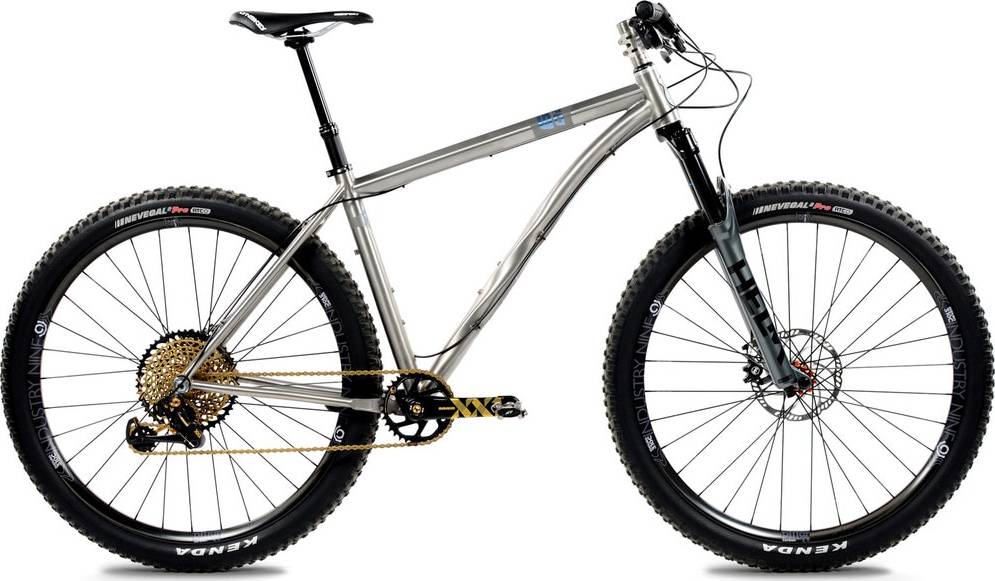

PRO 29 SRAM GX Eagle 1×12 is a Lynskey Pro Sram model. Lynskey launched 22 bikes of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
The fork installed on this bike is the Cane Creek HELM model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
As for the wheels, Lynskey PRO 29 SRAM GX Eagle 1×12 2019, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The PRO 29 SRAM GX Eagle 1×12 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Lynskey PRO 29 SRAM GX Eagle 1×12 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
