Bike details
Overview
Key information split into simple groups.

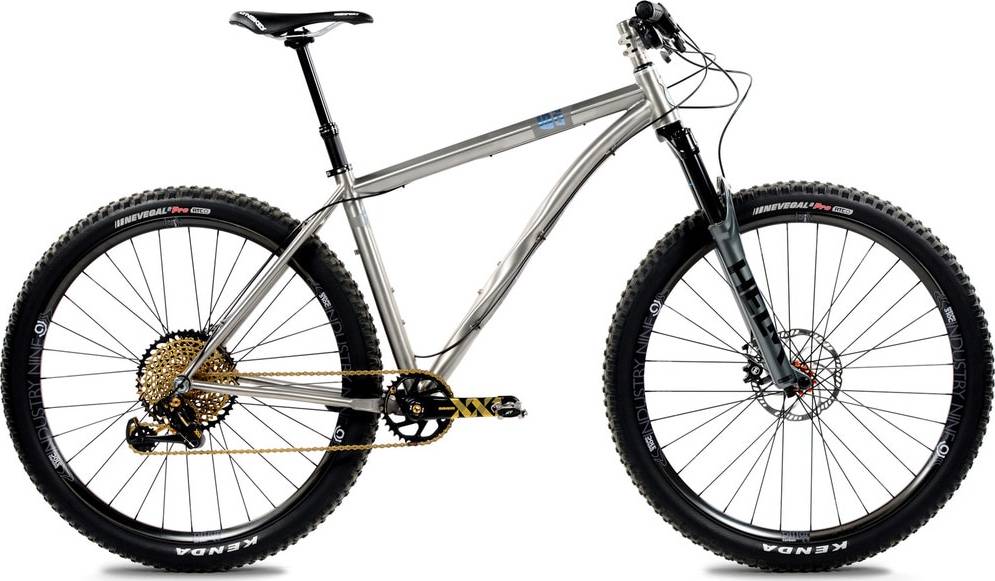

Bike summary
-
-
Frame Titanium -
Wheels 29" -
Travel Front 130mm -
Fork Cane Creek HELM
-
Groupset XX1 Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Cane Creek Helm Works 130mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS Rear Derailleur - 12 Speed, Long Cage
Shift Levers
SRAM XX1 Eagle AXS Trigger Shifter - 12 Speed - Discrete Clamp
Cassette
SRAM XG-1299 XX1 Eagle Cassette 10-50t, 12 Speed
Crank
SRAM XX1 Eagle AXS Carbon DUB Boost 148, 175mm, 34t Crankset
Bottom Bracket
SRAM DUB Bottom Bracket English Threaded 73mm
Chain
SRAM Eagle 12-Speed Chain, with PowerLock, Rainbow
Wheels
Rims
Stans Arch
Tires
Kenda Nevegal 2 Tire 29x2.4 or Kenda Havok Pro 27.5x3.0
Brakes
Brake Levers
Magura MT8 Brake Lever with MT8 Disc Caliper
Disk Rotors
Magura Storm SL 160mm Rotor
Cockpit
Stem
FSA Omega stem +/- 6° Rise
Handlebar
FSA Comet Low Rise Handlebars
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Black
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.41 mm | 1.37 mm | 1.34 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 308 mm |
| Front Center | 684 mm | 699 mm | 715 mm | 732 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 87 mm | 87 mm | 86 mm | 82 mm |
| Stack | 606 mm | 606 mm | 610 mm | 614 mm |
| Reach | 414 mm | 429 mm | 444 mm | 459 mm |
| Top Tube Length | 590 mm | 605 mm | 621 mm | 637 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 432 mm | 470 mm | 533 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 108 mm | 108 mm | 112 mm | 116 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1116 mm | 1131 mm | 1148 mm | 1164 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 66 mm |
| Standover Height | 711 mm | 743 mm | 778 mm | 882 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
PRO 29 SRAM XX1 Eagle AXS completes the Lynskey Pro Sram model. There are 22 bikes that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
PRO 29 SRAM XX1 Eagle AXS components
Fork
This bike has the Cane Creek HELM fork installed. The fork’s travel is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the PRO 29 SRAM XX1 Eagle AXS model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
