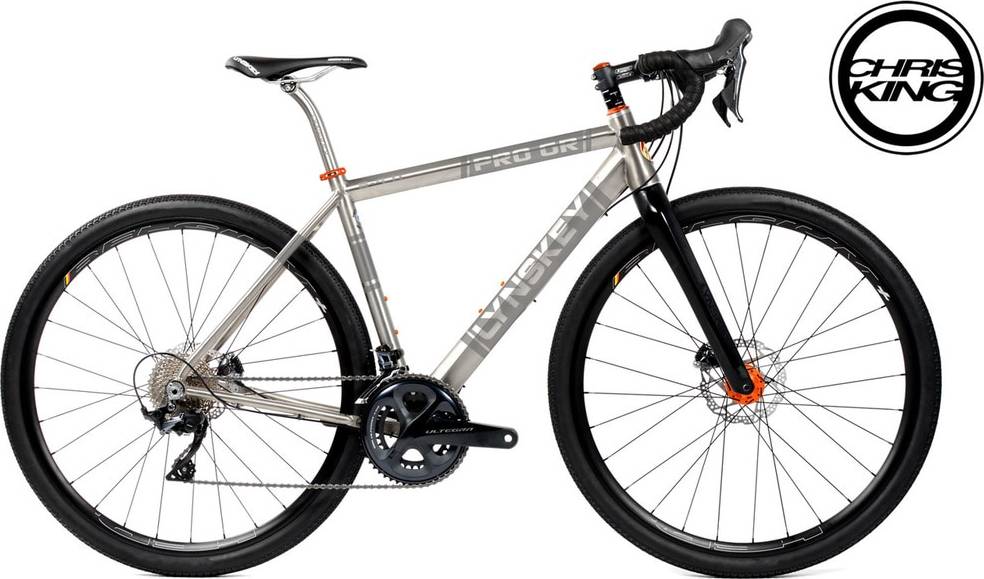

Lynskey PRO GR Limited Edition Shimano Ultegra 8020 Hydraulic Disc 2019
2019 Road
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c / 650b -
Groupset Ultegra -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
XS
155cm - 168cm
SM
163cm - 174cm
SM
163cm - 174cm
MD
170cm - 181cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
LG
181cm - 193cm
XL
188cm - 200cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Lynskey Carbon Gravel Fork with 12mm Thru Axle
Drivetrain
Rear Derailleur
Shimano Ultegra RX Series 8000 11 speed rear Derailleur GS cage
Front Derailleur
Shimano Ultegra 8000 Double 11 Speed Clamp-on Front Derailleur
Cassette
Shimano Ultegra 8000 11 speed road cassette 11-34t
Crank
Shimano Ultegra 8000 11-SPD Crankset
Bottom Bracket
Chris King - 24mm Spindle
Chain
Shimano CN-HG601 QL Chain - 11 spd
Wheels
Rims
Chris King - HED BELGIUM PLUS DISC R45D 28/28
Tires
Kenda Happy Medium Gravel Tires 700 x 40c
Brakes
Brakes
Shimano ST-R8020 2x11 Speed STI Shifter Set with Calipers
Disk Rotors
Magura Storm SL 160mm Rotors (Front and Rear)
Cockpit
Stem
FSA Omega Stem +/- 6° Rise
Handlebar
FSA Omega Compact Alloy Handlebar
Headset
Chris King Dropset 2
Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA SL-280 27.2 x 350mm x 20mm Setback Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | SM | SM | MD | MD | MD/LG | MD/LG | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.47 mm | 1.47 mm | 1.5 mm | 1.5 mm | 1.53 mm | 1.53 mm | 1.58 mm | 1.58 mm | 1.59 mm | 1.59 mm |
| Bottom Bracket Height | 269 mm | mm | 271 mm | mm | 271 mm | mm | 274 mm | mm | 274 mm | mm | 276 mm | mm |
| Front Center | 595 mm | 595 mm | 605 mm | 605 mm | 612 mm | 612 mm | 625 mm | 625 mm | 633 mm | 633 mm | 650 | 650 |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 64 mm | 74 mm | 67 mm | 69 mm | 63 mm | 69 mm | 63 mm | 67 mm | 61 mm | 67 mm | 61 mm |
| Stack | 529 mm | 529 mm | 549 mm | 549 mm | 569 mm | 569 mm | 589 mm | 589 mm | 614 mm | 614 mm | 634 mm | 634 mm |
| Reach | 369 mm | 369 mm | 374 mm | 374 mm | 379 mm | 379 mm | 384 mm | 384 mm | 389 mm | 389 mm | 399 mm | 399 mm |
| Top Tube Length | 523 mm | 523 mm | 537 mm | 537 mm | 549 mm | 549 mm | 564 mm | 564 mm | 579 mm | 579 mm | 599 mm | 599 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 450 mm | 470 mm | 470 mm | 490 mm | 490 mm | 510 mm | 510 mm | 530 mm | 530 mm | 550 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 110 mm | 126 mm | 126 mm | 145 mm | 145 mm | 169 mm | 169 mm | 193 mm | 193 mm | 217 mm | 217 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1017 mm | 1017 mm | 1027 mm | 1027 mm | 1035 mm | 1035 mm | 1049 mm | 1049 mm | 1056 mm | 1056 mm | 1074 mm | 1074 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 78 mm | 78 mm | 78 mm | 78 mm | 75 mm | 75 mm | 75 mm | 75 mm | 73 mm | 73 mm |
| Standover Height | 715 mm | 715 mm | 736 mm | 736 mm | 757 mm | 757 mm | 779 mm | 779 mm | 799 mm | 799 mm | 823 mm | 823 mm |
| Wheels | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 |
| Rider Min Height | 155 cm | 155 cm | 163 cm | 163 cm | 170 cm | 170 cm | 175 cm | 175 cm | 181 cm | 181 cm | 188 cm | 188 cm |
| Rider Max Height | 168 cm | 168 cm | 174 cm | 174 cm | 181 cm | 181 cm | 187 cm | 187 cm | 193 cm | 193 cm | 200 cm | 200 cm |
Model Overview
PRO GR Limited Edition Shimano Ultegra 8020 Hydraulic Disc belongs to the Lynskey Pro Gr model. 81 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Lynskey PRO GR Limited Edition Shimano Ultegra 8020 Hydraulic Disc 2019, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Lynskey PRO GR Limited Edition Shimano Ultegra 8020 Hydraulic Disc has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Lynskey PRO GR Limited Edition Shimano Ultegra 8020 Hydraulic Disc bike has 12 sizes, in the range of 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
