Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c / 650b -
Groupset GRX 600, GRX 800 -
Suspension Rigid -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
XS
155cm - 168cm
SM
163cm - 174cm
SM
163cm - 174cm
MD
170cm - 181cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
LG
181cm - 193cm
XL
188cm - 200cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Lynskey Pro GR Gravel Fork with 12mm Thru Axle
Drivetrain
Rear Derailleur
Shimano GRX 11 speed rear Derailleur - Long Cage for 1x
Shift Levers
Optional: Please select preferred setup.
Cassette
Shimano M8000 11 speed cassette 11-42t
Crank
Shimano GRX 810 1x11-SPD CRANKSET
Bottom Bracket
Shimano BBR60 68mm English Threaded Bottom Bracket
Chain
Shimano CN-HG701 QL Chain - 11 Speed
Wheels
Rims
Vision Team 30 Disc
Tires
Kenda Flintridge Pro 700x40c
Brakes
Brakes
Shimano ST-RX810 2x11 Speed STI Right Shifter Set (W/ BR-RX810 FM Caliper)
Disk Rotors
160mm
Cockpit
Stem
FSA Omega Stem +/- 6° Rise
Handlebar
FSA Omega Compact Alloy Handlebar
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA SL-280 27.2 x 350mm x 20mm Setback Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | SM | SM | MD | MD | MD/LG | MD/LG | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.47 mm | 1.47 mm | 1.5 mm | 1.5 mm | 1.53 mm | 1.53 mm | 1.58 mm | 1.58 mm | 1.59 mm | 1.59 mm |
| Bottom Bracket Height | 269 mm | mm | 271 mm | mm | 271 mm | mm | 274 mm | mm | 274 mm | mm | 276 mm | mm |
| Front Center | 595 mm | 595 mm | 605 mm | 605 mm | 612 mm | 612 mm | 625 mm | 625 mm | 633 mm | 633 mm | 650 | 650 |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 64 mm | 74 mm | 67 mm | 69 mm | 63 mm | 69 mm | 63 mm | 67 mm | 61 mm | 67 mm | 61 mm |
| Stack | 529 mm | 529 mm | 549 mm | 549 mm | 569 mm | 569 mm | 589 mm | 589 mm | 614 mm | 614 mm | 634 mm | 634 mm |
| Reach | 369 mm | 369 mm | 374 mm | 374 mm | 379 mm | 379 mm | 384 mm | 384 mm | 389 mm | 389 mm | 399 mm | 399 mm |
| Top Tube Length | 523 mm | 523 mm | 537 mm | 537 mm | 549 mm | 549 mm | 564 mm | 564 mm | 579 mm | 579 mm | 599 mm | 599 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 450 mm | 470 mm | 470 mm | 490 mm | 490 mm | 510 mm | 510 mm | 530 mm | 530 mm | 550 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 110 mm | 126 mm | 126 mm | 145 mm | 145 mm | 169 mm | 169 mm | 193 mm | 193 mm | 217 mm | 217 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1017 mm | 1017 mm | 1027 mm | 1027 mm | 1035 mm | 1035 mm | 1049 mm | 1049 mm | 1056 mm | 1056 mm | 1074 mm | 1074 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 78 mm | 78 mm | 78 mm | 78 mm | 75 mm | 75 mm | 75 mm | 75 mm | 73 mm | 73 mm |
| Standover Height | 715 mm | 715 mm | 736 mm | 736 mm | 757 mm | 757 mm | 779 mm | 779 mm | 799 mm | 799 mm | 823 mm | 823 mm |
| Wheels | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 |
| Rider Min Height | 155 cm | 155 cm | 163 cm | 163 cm | 170 cm | 170 cm | 175 cm | 175 cm | 181 cm | 181 cm | 188 cm | 188 cm |
| Rider Max Height | 168 cm | 168 cm | 174 cm | 174 cm | 181 cm | 181 cm | 187 cm | 187 cm | 193 cm | 193 cm | 200 cm | 200 cm |
About this model

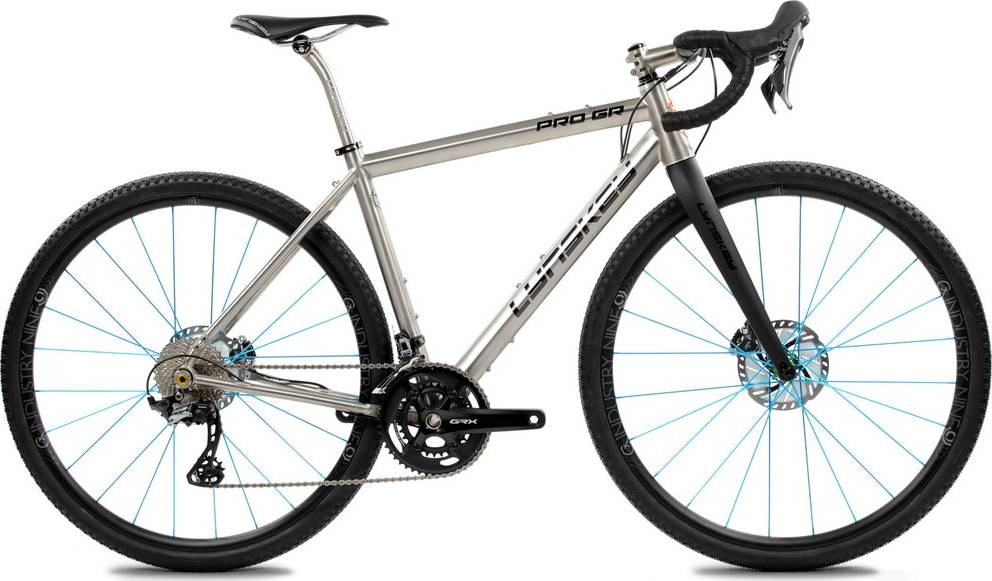

PRO GR Shimano GRX 810 1×11 is a Lynskey Pro Gr model. 81 bikes variations carry this model name so far. You can easily view all of the Lynskey Pro Gr bikes models from 2020, here.
Model range prices
The most economical model, the Lynskey PRO GR Shimano GRX 400 2×10 2020 has a starting price of 4450$. Lynskey PRO GR SRAM Rival 22 2020 on the other hand is the most expensive at 4450$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
PRO GR Shimano GRX 810 1×11 components
Wheels size
The PRO GR Shimano GRX 810 1×11 2020 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The PRO GR Shimano GRX 810 1×11 comes with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Lynskey PRO GR Shimano GRX 810 1×11 bike has 12 sizes, in the range of 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
