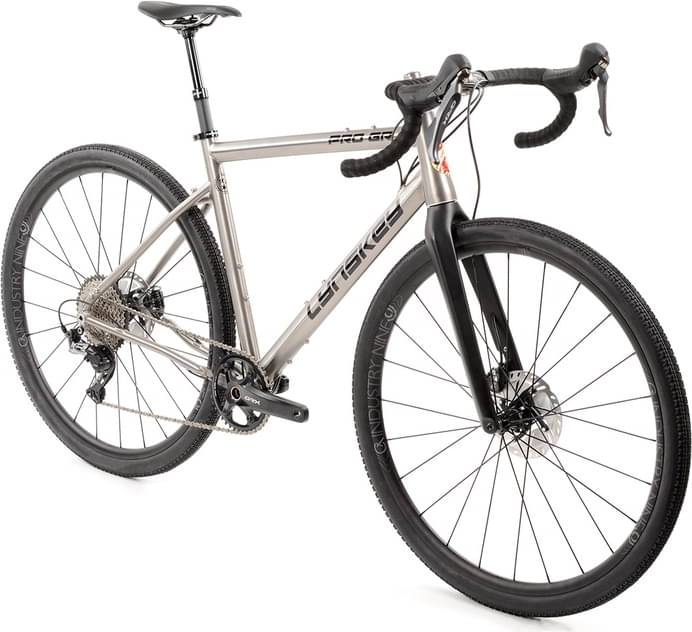

Lynskey PRO GR SRAM Force AXS XPLR 1x 2022
2022 Road
Estimate price |
5,580$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset Force XPLR eTap -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 157cm
SM
160cm - 165cm
MD
167cm - 172cm
MD/LG
175cm - 180cm
LG
182cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components

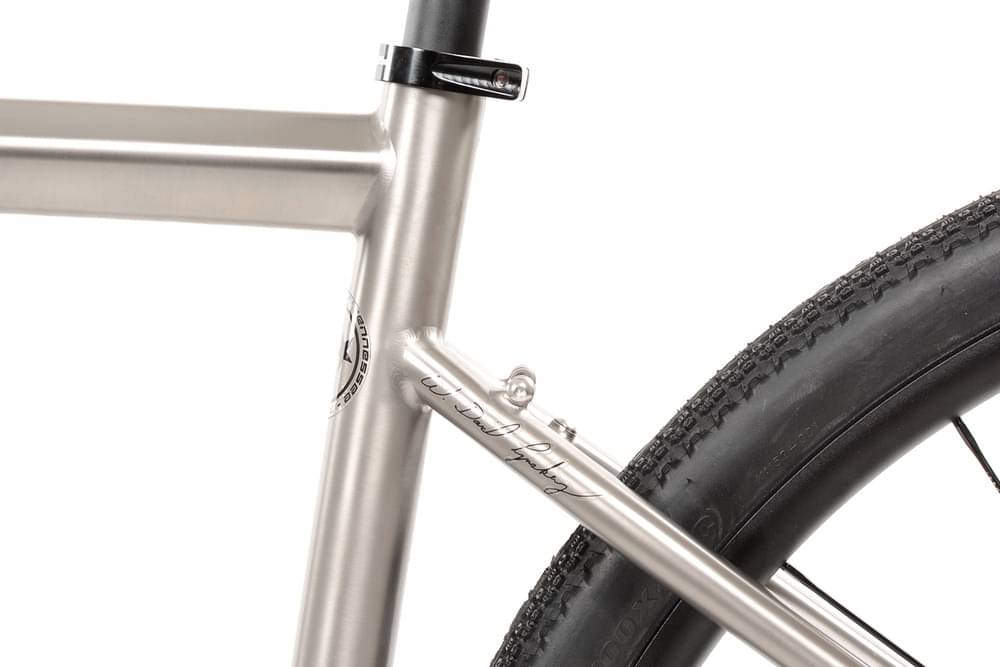

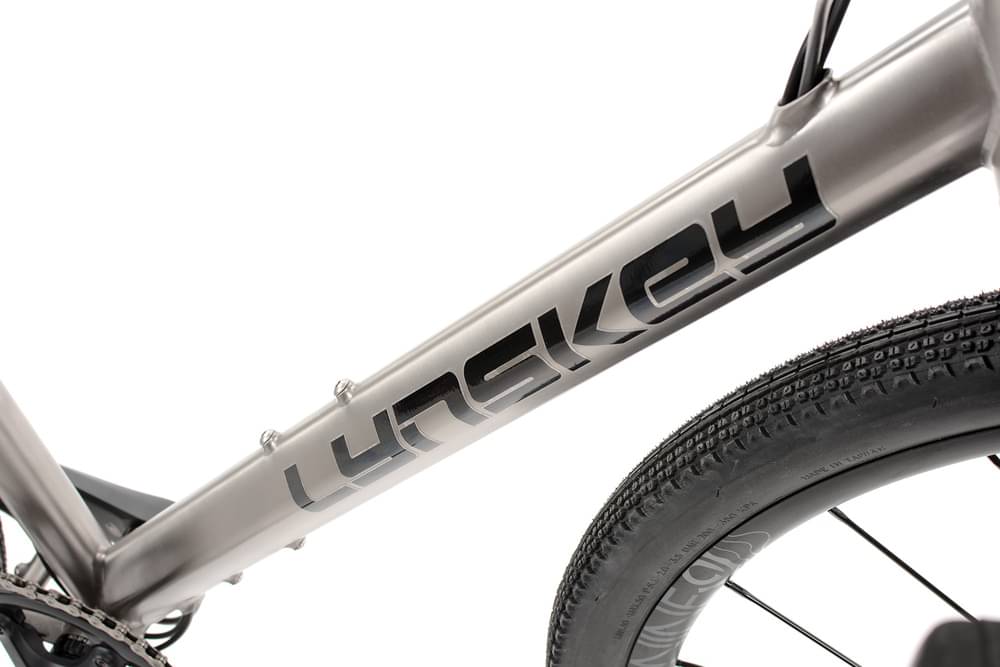

Frame
Frame
Titanium
Suspension Fork
Lynskey Pro GR Gravel Fork with 12mm Thru Axle
Drivetrain
Rear Derailleur
SRAM Force XPLR eTap AXS D1 12-Speed Max 44T
Shift Levers
Optional: Please select preferred setup.
Cassette
SRAM XG-1271 D1 Silver 12 Speed 10-44

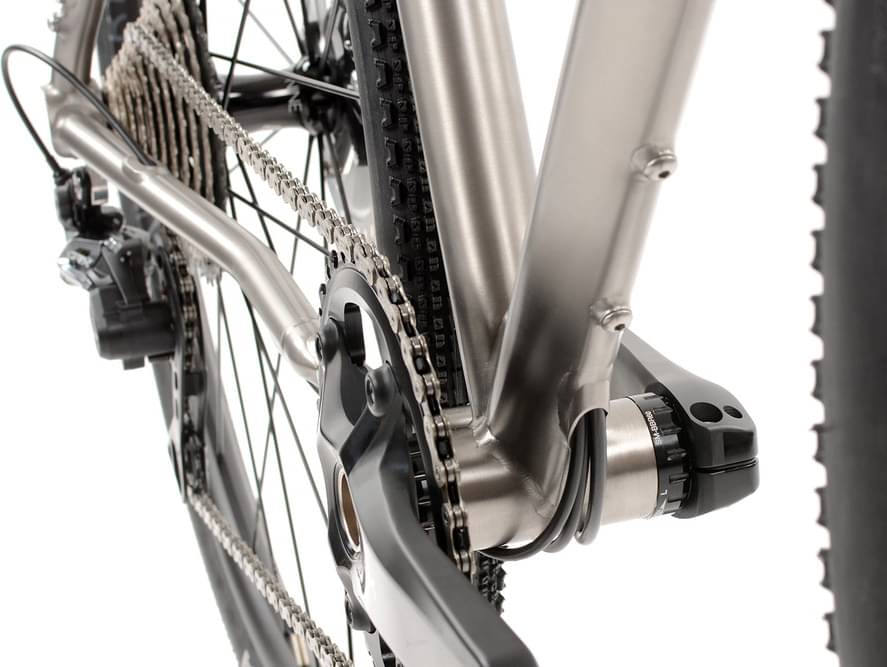

Crank
SRAM Force AXS 1x Crankset
Bottom Bracket
SRAM DUB Bottom Bracket - BSA 68mm English threaded
Chain
SRAM Force D1 12 Speed Chain
Wheels
Rims
Vision Team 30 Disc Wheelset
Tires
Kenda or WTB 700c depending on availability
Brakes
Brakes
SRAM Force AXS HRD Rear(right) Shifter w/Caliper

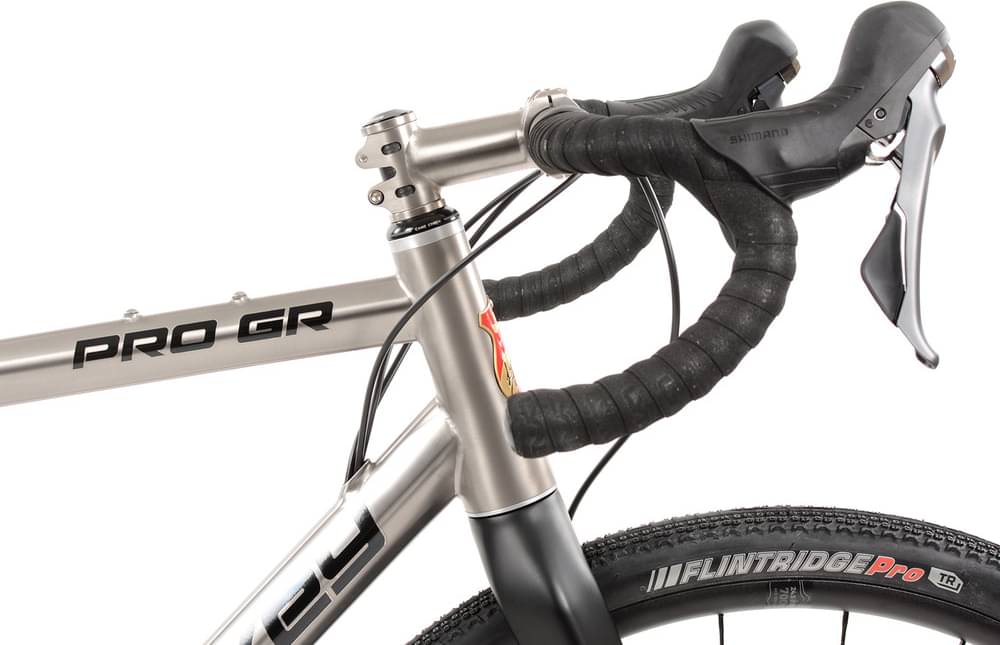

Cockpit
Stem
FSA Omega stem +/- 6° Rise 31.8
Handlebar
FSA Omega Compact Alloy Handlebar
Headset
Cane Creek 40 IS 42/28.6- IS 52/40

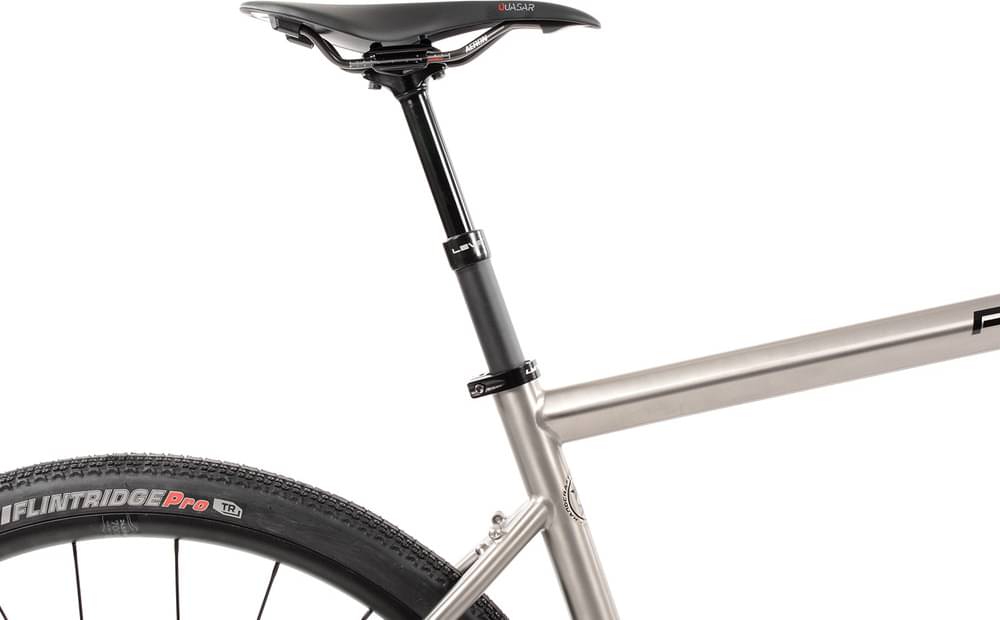

Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA SL-280 27.2 x 350mm x 20mm Setback Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.47 mm | 1.5 mm | 1.53 mm | 1.58 mm | 1.59 mm |
| Bottom Bracket Height | 269 mm | 271 mm | 271 mm | 274 mm | 274 mm | 276 mm |
| Front Center | 595 mm | 605 mm | 612 mm | 625 mm | 633 mm | 650 |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 71 mm | 74 mm | 69 mm | 69 mm | 67 mm | 67 mm |
| Stack | 529 mm | 549 mm | 569 mm | 589 mm | 614 mm | 634 mm |
| Reach | 369 mm | 374 mm | 379 mm | 384 mm | 389 mm | 399 mm |
| Top Tube Length | 523 mm | 537 mm | 549 mm | 564 mm | 579 mm | 599 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 470 mm | 490 mm | 510 mm | 530 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 126 mm | 145 mm | 169 mm | 193 mm | 217 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1017 mm | 1027 mm | 1035 mm | 1049 mm | 1056 mm | 1074 mm |
| Bottom Bracket Drop | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm | 73 mm |
| Standover Height | 715 mm | 736 mm | 757 mm | 779 mm | 799 mm | 823 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 160 cm | 167 cm | 175 cm | 182 cm | 190 cm |
| Rider Max Height | 157 cm | 165 cm | 172 cm | 180 cm | 188 cm | cm |
Model Overview
PRO GR SRAM Force AXS XPLR 1x is a Lynskey Pro Gr model. Lynskey launched 81 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Lynskey PRO GR Shimano GRX 815 Di2 2×11 2022 is the most economical model, with a starting price of 5580$. Lynskey PRO GR Shimano GRX 600 1×11 2022 on the other hand costs 5580$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 5580$. Comparing this to the average Gravel bike price, we see that the price is 126.65% more expensive.
PRO GR SRAM Force AXS XPLR 1x components
Wheels size
When leaving the production line, the PRO GR SRAM Force AXS XPLR 1x model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
