Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset Dura-Ace Di2, RED eTAP -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Lynskey Pro Road Carbon #5 Fork w/ Axle
Drivetrain
Rear Derailleur
Shimano Dura-Ace 9150 Di2 11 speed rear Derailleur short cage
Front Derailleur
Shimano Dura-Ace 9150 Di2 2x11 Speed Braze-on Front Derailleur
Shift Levers
Yes: Shimano Di2, SRAM Etap (removable guides)
Cassette
Shimano Dura-Ace 9100 11 speed road cassette 11-30t
Crank
Shimano Dura-Ace 9100 11-SPD CRANKSET 50/34t
Bottom Bracket
Shimano BB-R9100 68mm English Threaded Bottom Bracket
Chain
Shimano CN-HG901-11 QL Chain - 11 Speed
Wheels
Rims
Vision Team 30 Disc
Tires
Kenda Valkyrie 700x28
Brakes
Brakes
Shimano Dura-Ace ST-R9170 2x11 Speed STI Right Shifter (w/ FM BR-R9170 caliper)
Disk Rotors
Shimano Dura-Ace RT900S 160mm Centerlock IceTech Disc Brake Rotor
Cockpit
Stem
FSA Omega Stem +/- 6° Rise
Handlebar
FSA Omega Compact Alloy Handlebar
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA SL-280 27.2 x 350mm x 20mm Setback Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.49 mm | 1.52 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 268 mm | 268 mm | 269 mm |
| Front Center | 562 mm | 569 mm | 581 mm | 589 mm | 603 mm | 615 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 65 mm | 59 mm | 59 mm | 55 mm | 55 mm | 55 mm |
| Stack | 512 mm | 534 mm | 548 mm | 567 mm | 586 mm | 606 mm |
| Reach | 351 mm | 361 mm | 368 mm | 374 mm | 383 mm | 388 mm |
| Top Tube Length | 492 mm | 517 mm | 533 mm | 549 mm | 565 mm | 582 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 72.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 141 mm | 156 mm | 176 mm | 196 mm | 218 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 958 mm | 966 mm | 977 mm | 986 mm | 1001 mm | 1013 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 68 mm | 68 mm | 67 mm |
| Standover Height | 730 mm | 742 mm | 762 mm | 782 mm | 798 mm | 822 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
Model Overview

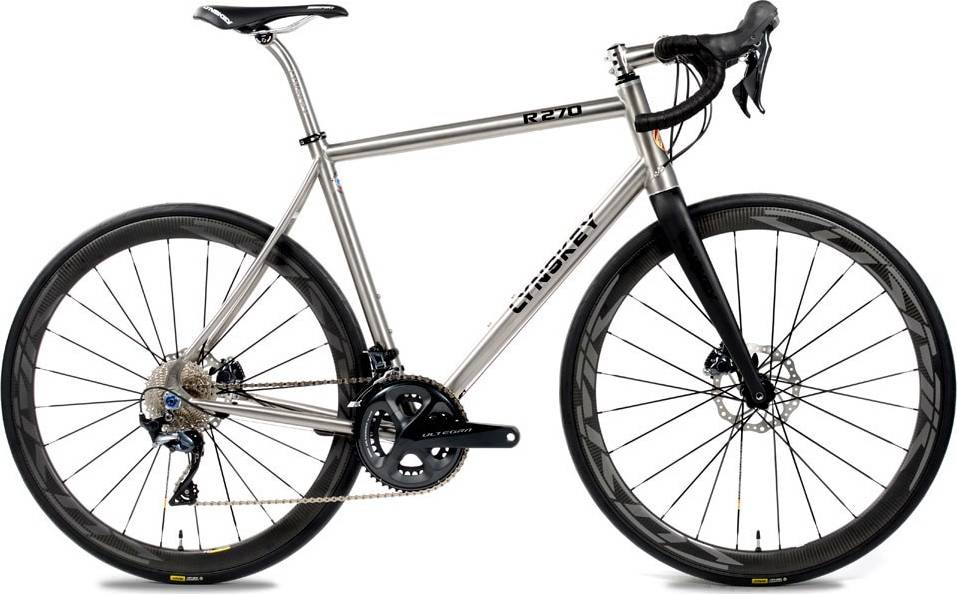

R270 Shimano Dura-Ace Di2 Hydraulic Disc belongs to the Lynskey R270 model. Lynskey launched 15 bikes of this model so far. Take a sneak peek at all Lynskey R270 bikes models from 2019, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the R270 Shimano Dura-Ace Di2 Hydraulic Disc bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The R270 Shimano Dura-Ace Di2 Hydraulic Disc comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, you can easily find one that suits you.
