Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset Ultegra Di2, RED eTAP -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Lynskey Pro Road Carbon #5 Fork w/ Axle
Drivetrain
Rear Derailleur
Shimano Ultegra R8050 Di2 11 Speed Rear Derailleur GS Cage
Front Derailleur
Shimano Ultegra 8050 Di2 2x11 Speed Braze-on Front Derailleur
Shift Levers
Yes: Shimano Di2, SRAM Etap (removable guides)
Cassette
Shimano Ultegra 8000 11 speed road cassette 11-34t
Crank
Shimano Ultegra 8000 11-SPD CRANKSET
Bottom Bracket
Shimano BBR60 68mm English Threaded Bottom Bracket
Chain
Shimano CN-HG701 QL Chain - 11 Speed
Wheels
Rims
Vision Team 30 Disc
Tires
Kenda Valkyrie 700x28
Brakes
Brakes
Shimano ST-R8070 2x11 Speed STI Right Shifter Set (w/ BR8070 FM Caliper)
Disk Rotors
Shimano Ultegra RT800S 160mm Centerlock IceTech Disc Brake Rotor
Cockpit
Stem
FSA Omega Stem +/- 6° Rise
Handlebar
FSA Omega Compact Alloy Handlebar
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA SL-280 27.2 x 350mm x 20mm Setback Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.4 mm | 1.4 mm | 1.44 mm | 1.43 mm | 1.42 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 268 mm | 268 mm | 269 mm |
| Front Center | 571 mm | 574 mm | 590 mm | 595 mm | 615 mm | 635 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 65 mm | 58 mm | 58 mm | 56 mm | 57 mm | 56 mm |
| Stack | 502 mm | 519 mm | 533 mm | 554 mm | 572 mm | 589 mm |
| Reach | 364 mm | 370 mm | 381 mm | 386 mm | 400 mm | 414 mm |
| Top Tube Length | 502 mm | 522 mm | 542 mm | 557 mm | 577 mm | 602 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 72.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 111 mm | 126 mm | 141 mm | 161 mm | 180 mm | 201 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 968 mm | 971 mm | 987 mm | 993 mm | 1012 mm | 1033 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 68 mm | 68 mm | 67 mm |
| Standover Height | 722 mm | 737 mm | 752 mm | 772 mm | 792 mm | 808 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
Model Overview

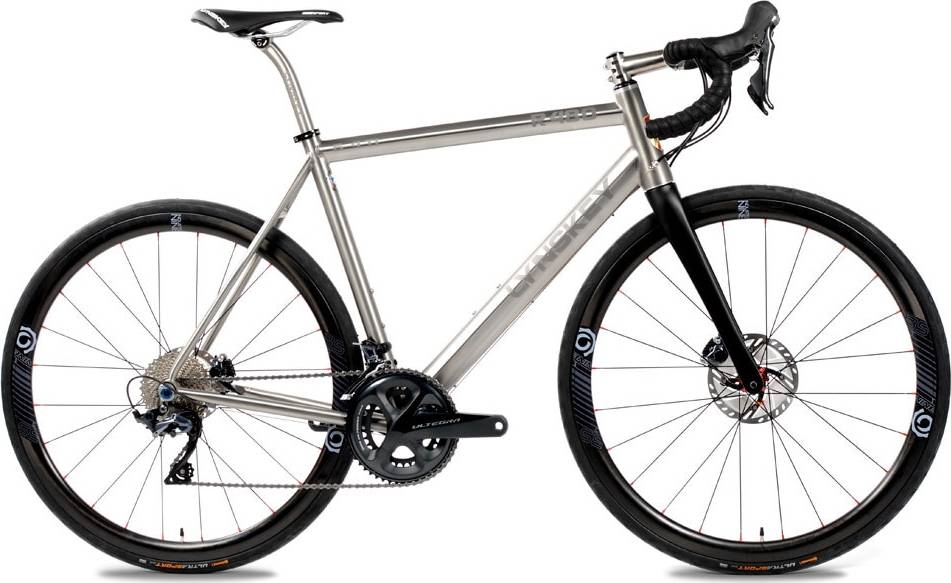

R480 Shimano Ultegra Di2 Hydraulic Disc is a Lynskey R480 model. Lynskey launched 30 bikes of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
R480 Shimano Ultegra Di2 Hydraulic Disc has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Lynskey R480 Shimano Ultegra Di2 Hydraulic Disc 2019, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The R480 Shimano Ultegra Di2 Hydraulic Disc has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
R480 Shimano Ultegra Di2 Hydraulic Disc comes in 6 sizes, that range from 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
