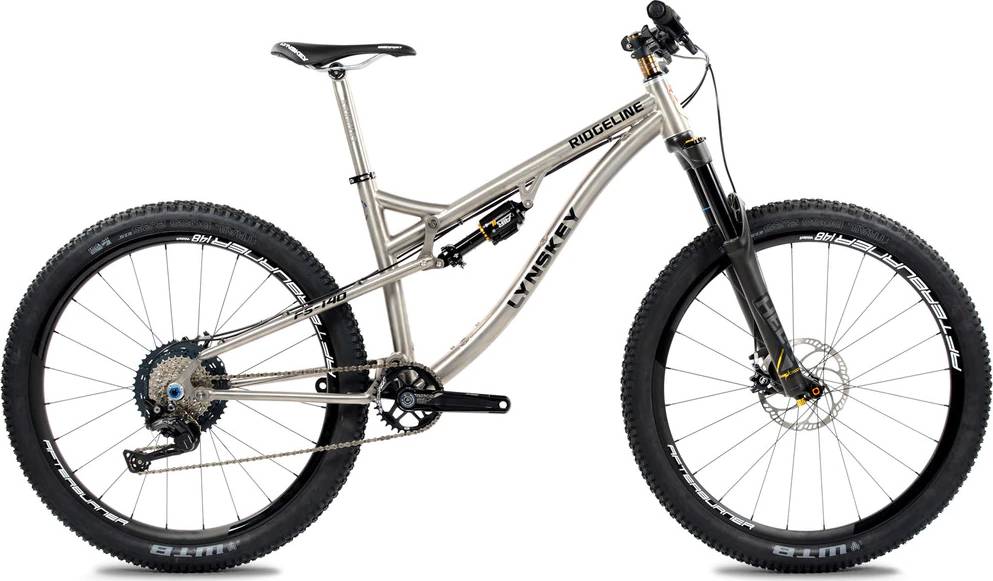

Lynskey Ridgeline Full Suspension 27.5-140 Shimano XTR 1×11 2020
2020 Mountain
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 27.5" -
Fork Cane Creek HELM -
Groupset XTR -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Cane Creek Helm Works
Rear Shock
Cane Creek DBair IL
Drivetrain
Rear Derailleur
Shimano XTR RD-M9000 11 Speed Rear Derailleur SGS Cage(Shadow)
Shift Levers
Shimano XTR M9000 11 Speed Shifter
Cassette
Shimano XTR CS-M9000 11 Speed Cassette 11-40t
Crank
Shimano XTR Boost Trail Crank Arms 175mm
Bottom Bracket
Shimano XTR BB93 Bottom Bracket
Chain
Shimano CN-HG901 QL Chain - 11 Speed
Wheels
Rims
FSA Afterburner WideR
Tires
Kenda Nevegal 2 Pro ATC 27.5x2.4
Brakes
Disk Rotors
Shimano XTR SM-RT99 Center Lock
Cockpit
Stem
FSA Omega stem +/- 6° Rise
Handlebar
FSA Comet Low Rise Handlebars
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Black
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.32 mm | 1.28 mm | 1.23 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 734 mm | 757 mm | 780 mm | 813 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 95 mm | 95 mm | 95 mm | 94 mm |
| Stack | 590 mm | 590 mm | 598 mm | 607 mm |
| Reach | 424 mm | 446 mm | 466 mm | 495 mm |
| Top Tube Length | 569 mm | 591 mm | 614 mm | 647 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 393 mm | 420 mm | 450 mm | 495 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 111 mm | 111 mm | 120 mm | 130 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1160 mm | 1182 mm | 1205 mm | 1239 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 691 mm | 693 mm | 711 mm | 723 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Ridgeline Full Suspension 27.5-140 Shimano XTR 1×11 is a Lynskey Ridgeline model. There are 46 bikes that carry this model name. You can easily view all of the Lynskey Ridgeline bikes models from 2020, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The fork installed on this bike is the Cane Creek HELM model. The travel on this model is mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
As for the wheels, Lynskey Ridgeline Full Suspension 27.5-140 Shimano XTR 1×11 2020, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Lynskey Ridgeline Full Suspension 27.5-140 Shimano XTR 1×11 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
