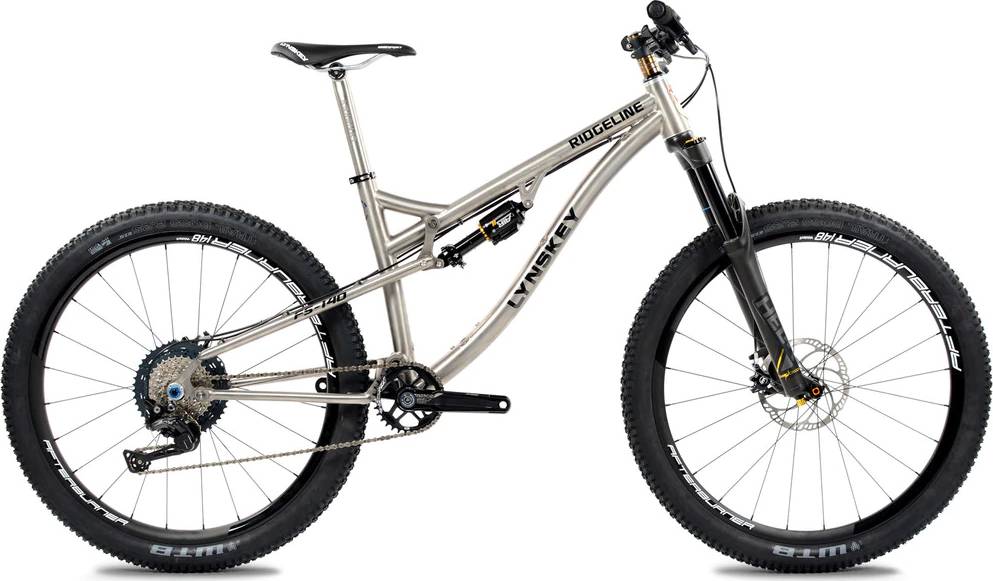

Lynskey Ridgeline Full Suspension 27.5-140 SRAM X01 Eagle 1×12 2019
2019 Mountain
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 27.5" -
Fork Cane Creek HELM -
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Cane Creek Helm Air
Rear Shock
Cane Creek DBair IL
Drivetrain
Rear Derailleur
SRAM X01 Eagle Rear Derailleur - 12 Speed, Long Cage, Black
Shift Levers
SRAM X01 Eagle Trigger Shifter - 12 Speed - Discrete Clamp, Black
Cassette
SRAM XG-1295 X01 Eagle Cassette 10-50t, 12 Speed
Crank
SRAM X01 Eagle Carbon DUB Boost 148, 175mm, 34t Crankset, Black
Bottom Bracket
SRAM DUB Bottom Bracket English Threaded 73mm
Chain
SRAM X01 Eagle 12-Speed Chain, with PowerLock
Wheels
Rims
Stan's Flow MK3
Tires
Kenda Nevegal 2 Pro ATC 27.5"x2.4"
Brakes
Brake Levers
Magura MT8 Brake Lever with MT8 Disc Caliper
Cockpit
Stem
FSA Omega stem +/- 6° Rise
Handlebar
Afterburner Low Rise Handlebar 31.8 x 15 x 740mm Black
Headset
Cane Creek 40 IS 42/28.6 - IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Black
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.32 mm | 1.28 mm | 1.23 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 734 mm | 757 mm | 780 mm | 813 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 95 mm | 95 mm | 95 mm | 94 mm |
| Stack | 590 mm | 590 mm | 598 mm | 607 mm |
| Reach | 424 mm | 446 mm | 466 mm | 495 mm |
| Top Tube Length | 569 mm | 591 mm | 614 mm | 647 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 393 mm | 420 mm | 450 mm | 495 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 111 mm | 111 mm | 120 mm | 130 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1160 mm | 1182 mm | 1205 mm | 1239 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 691 mm | 693 mm | 711 mm | 723 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Ridgeline Full Suspension 27.5-140 SRAM X01 Eagle 1×12 belongs to the Lynskey Ridgeline model. Lynskey released 46 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Ridgeline Full Suspension 27.5-140 SRAM X01 Eagle 1×12 components
Fork
The Cane Creek HELM is included from the factory. It has a travel distance of mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The Ridgeline Full Suspension 27.5-140 SRAM X01 Eagle 1×12 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ridgeline Full Suspension 27.5-140 SRAM X01 Eagle 1×12 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
