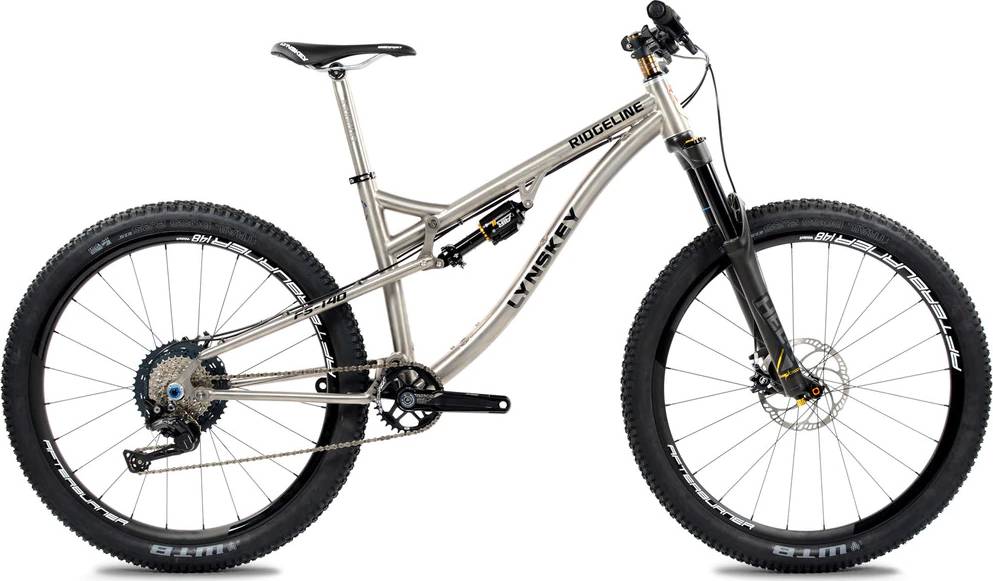

Lynskey Ridgeline Full Suspension 27.5-140 SRAM X01 Eagle AXS 1×12 2019
2019 Mountain
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 27.5" -
Fork Cane Creek HELM -
Groupset X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Cane Creek Helm Air
Rear Shock
Cane Creek DBair IL
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS Rear Derailleur - 12 Speed, Long Cage
Shift Levers
SRAM X01 Eagle AXS Trigger Shifter - 12 Speed - Discrete Clamp
Cassette
SRAM XG-1295 XX1 Eagle Cassette 10-50t, 12 Speed
Crank
SRAM X01 Eagle AXS Carbon DUB Boost 148, 175mm, 34t Crankset
Bottom Bracket
SRAM DUB Bottom Bracket English Threaded 73mm
Chain
SRAM Eagle 12-Speed Chain, with PowerLock, Rainbow
Wheels
Rims
Stan's Flow MK3
Tires
Kenda Nevegal 2 Pro ATC 27.5"x2.4"
Brakes
Brake Levers
Magura MT8 Brake Lever with MT8 Disc Caliper
Cockpit
Stem
FSA Omega stem +/- 6° Rise
Handlebar
Afterburner Low Rise Handlebar 31.8 x 15 x 740mm Black
Headset
Cane Creek 40 IS 42/28.6 - IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.32 mm | 1.28 mm | 1.23 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 734 mm | 757 mm | 780 mm | 813 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 95 mm | 95 mm | 95 mm | 94 mm |
| Stack | 590 mm | 590 mm | 598 mm | 607 mm |
| Reach | 424 mm | 446 mm | 466 mm | 495 mm |
| Top Tube Length | 569 mm | 591 mm | 614 mm | 647 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 393 mm | 420 mm | 450 mm | 495 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 111 mm | 111 mm | 120 mm | 130 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1160 mm | 1182 mm | 1205 mm | 1239 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 691 mm | 693 mm | 711 mm | 723 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Ridgeline Full Suspension 27.5-140 SRAM X01 Eagle AXS 1×12 is part of the Lynskey Ridgeline model. 46 bikes variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Ridgeline Full Suspension 27.5-140 SRAM X01 Eagle AXS 1×12 components
Fork
This bike has the Cane Creek HELM fork installed. The fork’s travel is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the Ridgeline Full Suspension 27.5-140 SRAM X01 Eagle AXS 1×12 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Lynskey Ridgeline Full Suspension 27.5-140 SRAM X01 Eagle AXS 1×12 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
