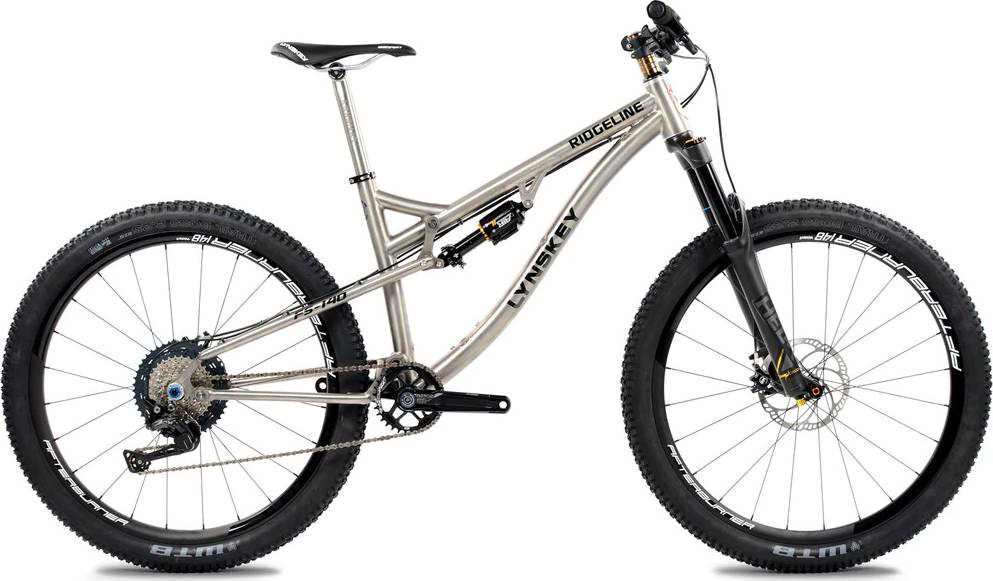

Lynskey Ridgeline Full Suspension 27.5-140 SRAM XX1 Eagle AXS 1×12 2019
2019 Mountain
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 27.5" -
Fork Cane Creek HELM -
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Cane Creek Helm Air
Rear Shock
Cane Creek DBair IL
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS Rear Derailleur - 12 Speed, Long Cage
Shift Levers
SRAM XX1 Eagle AXS Trigger Shifter - 12 Speed - Discrete Clamp
Cassette
SRAM XG-1299 XX1 Eagle Cassette 10-50t, 12 Speed
Crank
SRAM XX1 Eagle AXS Carbon DUB Boost 148, 175mm, 34t Crankset
Bottom Bracket
SRAM DUB Bottom Bracket English Threaded 73mm
Chain
SRAM Eagle 12-Speed Chain, with PowerLock, Rainbow
Wheels
Rims
Stan's Flow MK3
Tires
Kenda Nevegal 2 Pro ATC 27.5"x2.4"
Brakes
Brake Levers
Magura MT8 Brake Lever with MT8 Disc Caliper
Cockpit
Stem
FSA Omega Stem +/- 6° Rise
Handlebar
Afterburner Low Rise Handlebar 31.8 x 15 x 740mm Black
Headset
Cane Creek 40 IS 42/28.6 - IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.32 mm | 1.28 mm | 1.23 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 734 mm | 757 mm | 780 mm | 813 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 95 mm | 95 mm | 95 mm | 94 mm |
| Stack | 590 mm | 590 mm | 598 mm | 607 mm |
| Reach | 424 mm | 446 mm | 466 mm | 495 mm |
| Top Tube Length | 569 mm | 591 mm | 614 mm | 647 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 393 mm | 420 mm | 450 mm | 495 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 111 mm | 111 mm | 120 mm | 130 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1160 mm | 1182 mm | 1205 mm | 1239 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 691 mm | 693 mm | 711 mm | 723 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Ridgeline Full Suspension 27.5-140 SRAM XX1 Eagle AXS 1×12 is a Lynskey Ridgeline model. Lynskey launched 46 bikes of this model so far. You can easily view all of the Lynskey Ridgeline bikes models from 2019, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The Ridgeline Full Suspension 27.5-140 SRAM XX1 Eagle AXS 1×12 comes factory-installed with the Cane Creek HELM fork. This has a travel range of mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Lynskey Ridgeline Full Suspension 27.5-140 SRAM XX1 Eagle AXS 1×12 2019, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Lynskey Ridgeline Full Suspension 27.5-140 SRAM XX1 Eagle AXS 1×12 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Ridgeline Full Suspension 27.5-140 SRAM XX1 Eagle AXS 1×12 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
