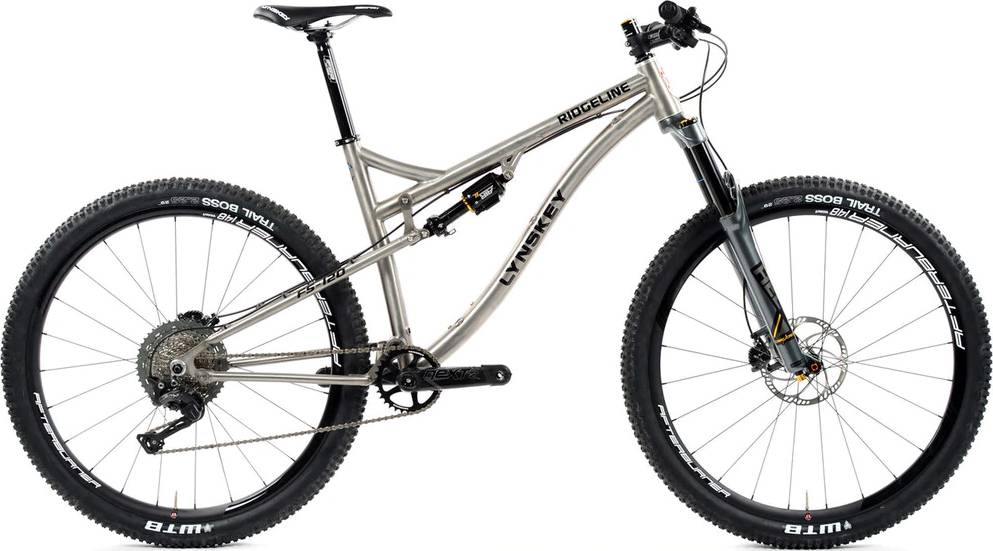

Lynskey Ridgeline Full Suspension 29-120 Shimano XT 1×11 2020
2020 Mountain
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 29" -
Fork Cane Creek HELM -
Groupset XT -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Cane Creek Helm Works
Rear Shock
Cane Creek DBair IL
Drivetrain
Rear Derailleur
Shimano XT RD-M8000 11 Speed Rear Derailleur SGS Cage(Shadow)
Shift Levers
Shimano XT M8000 11 Speed Shifter, I-Spec II
Cassette
Shimano XT CS-M8000 11 Speed Cassette 11-46t
Crank
Shimano XT FC-M8000-B1 Crankset 175mm
Bottom Bracket
Shimano XT Bottom Bracket
Chain
Shimano CN-HG701 QL Chain - 11 Speed
Wheels
Rims
FSA Afterburner WideR
Tires
Kenda Nevegal 2 Tire 29x2.4
Brakes
Disk Rotors
Shimano XT SM-RT81 Center Lock
Cockpit
Stem
FSA Omega stem +/- 6° Rise
Handlebar
FSA Comet Low Rise Handlebars
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Black
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.3 mm | 1.27 mm | 1.29 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 725 mm | 752 mm | 774 mm | 801 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 100 mm | 100 mm | 100 mm | 99 mm |
| Stack | 608 mm | 608 mm | 616 mm | 644 mm |
| Reach | 439 mm | 466 mm | 484 mm | 498 mm |
| Top Tube Length | 586 mm | 613 mm | 635 mm | 656 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 406 mm | 444 mm | 483 mm | 521 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 111 mm | 111 mm | 119 mm | 150 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1178 mm | 1205 mm | 1227 mm | 1253 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 730 mm | 743 mm | 755 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Ridgeline Full Suspension 29-120 Shimano XT 1×11 belongs to the Lynskey Ridgeline model. Lynskey launched 46 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
This bike has the Cane Creek HELM fork installed. The fork’s travel is mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the Ridgeline Full Suspension 29-120 Shimano XT 1×11 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Lynskey Ridgeline Full Suspension 29-120 Shimano XT 1×11 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
