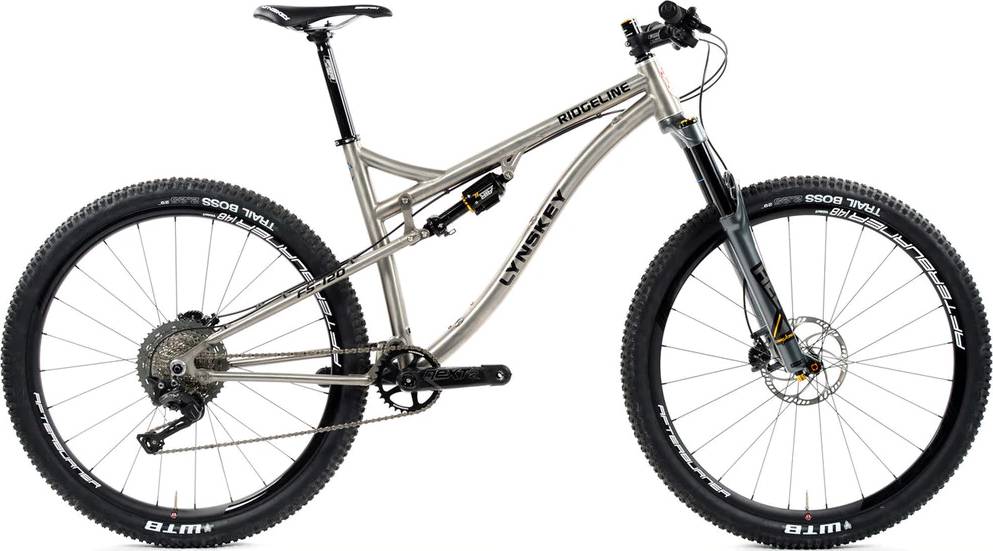

Lynskey Ridgeline Full Suspension 29-120 SRAM X01 Eagle 1×12 2019
2019 Mountain
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 29" -
Fork Cane Creek HELM -
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Cane Creek Helm Air
Rear Shock
Cane Creek DBair IL
Drivetrain
Rear Derailleur
SRAM X01 Eagle Rear Derailleur - 12 Speed, Long Cage, Lunar
Shift Levers
SRAM X01 Eagle Trigger Shifter - 12 Speed - Discrete Clamp, Lunar
Cassette
SRAM XG-1295 X01 Eagle Cassette 10-52t, 12 Speed, Black
Crank
SRAM X01 Eagle Carbon DUB Boost 148, 175mm, 32t Crankset, Black
Bottom Bracket
SRAM DUB Bottom Bracket English Threaded 73mm
Chain
SRAM X01 Eagle 12-Speed Chain, with PowerLock, Silver
Wheels
Rims
Stan's Flow MK3
Tires
Kenda Nevegal 2 Pro ATC 29"x2.4"
Brakes
Brake Levers
Magura MT8 Brake Lever with MT8 Disc Caliper
Cockpit
Stem
FSA Omega stem +/- 6° Rise
Handlebar
Afterburner Low Rise Handlebar 31.8 x 15 x 740mm Black
Headset
Cane Creek 40 IS 42/28.6 - IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Black
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.3 mm | 1.27 mm | 1.29 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 725 mm | 752 mm | 774 mm | 801 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 100 mm | 100 mm | 100 mm | 99 mm |
| Stack | 608 mm | 608 mm | 616 mm | 644 mm |
| Reach | 439 mm | 466 mm | 484 mm | 498 mm |
| Top Tube Length | 586 mm | 613 mm | 635 mm | 656 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 406 mm | 444 mm | 483 mm | 521 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 111 mm | 111 mm | 119 mm | 150 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1178 mm | 1205 mm | 1227 mm | 1253 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 730 mm | 743 mm | 755 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Ridgeline Full Suspension 29-120 SRAM X01 Eagle 1×12 is a Lynskey Ridgeline model. Lynskey launched 46 bikes of this model so far. Take a sneak peek at all Lynskey Ridgeline bikes models from 2019, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
The Cane Creek HELM is included from the factory. It has a travel distance of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Ridgeline Full Suspension 29-120 SRAM X01 Eagle 1×12 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ridgeline Full Suspension 29-120 SRAM X01 Eagle 1×12 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Ridgeline Full Suspension 29-120 SRAM X01 Eagle 1×12 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
