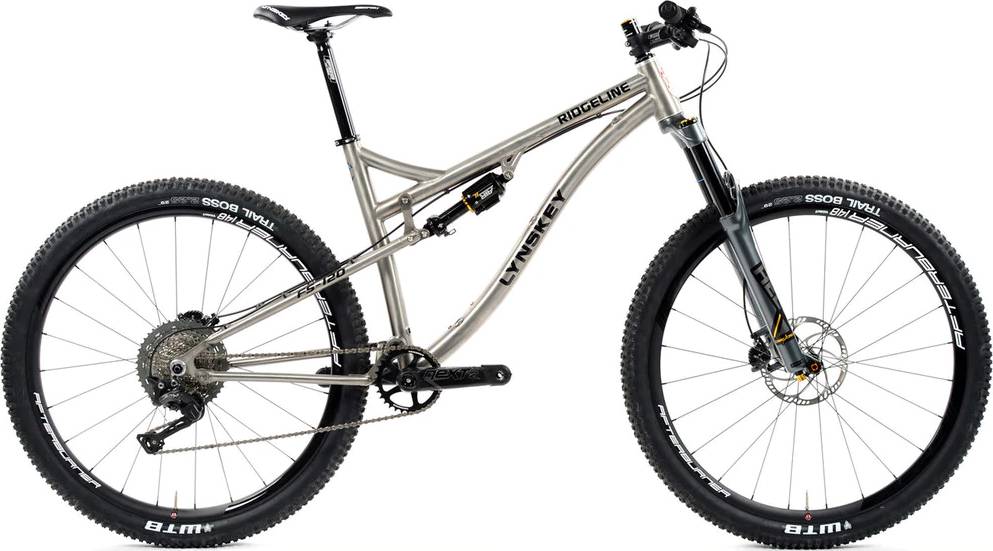

Lynskey Ridgeline Full Suspension 29-120 SRAM X01 Eagle AXS 1×12 2019
2019 Mountain
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 29" -
Fork Cane Creek HELM -
Groupset X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Cane Creek Helm Air
Rear Shock
Cane Creek DBair IL
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS Rear Derailleur - 12 Speed, Long Cage, Lunar
Shift Levers
SRAM X01 Eagle AXS Trigger Shifter - 12 Speed - Discrete Clamp
Cassette
SRAM XG-1295 XX1 Eagle Cassette 10-50t, 12 Speed, Black
Crank
SRAM X01 Eagle AXS Carbon DUB Boost 148, 175mm, 32t Crankset, Lunar
Bottom Bracket
SRAM DUB Bottom Bracket English Threaded 73mm
Chain
SRAM X01 Eagle 12-Speed Chain, with PowerLock, Silver
Wheels
Rims
Stan's Flow MK3
Tires
Kenda Nevegal 2 Pro ATC 29"x2.4"
Brakes
Brake Levers
Magura MT8 Brake Lever with MT8 Disc Caliper
Cockpit
Stem
FSA Omega stem +/- 6° Rise
Handlebar
Afterburner Low Rise Handlebar 31.8 x 15 x 740mm Black
Headset
Cane Creek 40 IS 42/28.6 - IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.3 mm | 1.27 mm | 1.29 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 725 mm | 752 mm | 774 mm | 801 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 100 mm | 100 mm | 100 mm | 99 mm |
| Stack | 608 mm | 608 mm | 616 mm | 644 mm |
| Reach | 439 mm | 466 mm | 484 mm | 498 mm |
| Top Tube Length | 586 mm | 613 mm | 635 mm | 656 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 406 mm | 444 mm | 483 mm | 521 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 111 mm | 111 mm | 119 mm | 150 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1178 mm | 1205 mm | 1227 mm | 1253 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 730 mm | 743 mm | 755 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Ridgeline Full Suspension 29-120 SRAM X01 Eagle AXS 1×12 is a Lynskey Ridgeline model. There are 46 bikes that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
This bike has the Cane Creek HELM fork installed. The fork’s travel is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The Ridgeline Full Suspension 29-120 SRAM X01 Eagle AXS 1×12 2019 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Lynskey Ridgeline Full Suspension 29-120 SRAM X01 Eagle AXS 1×12 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
