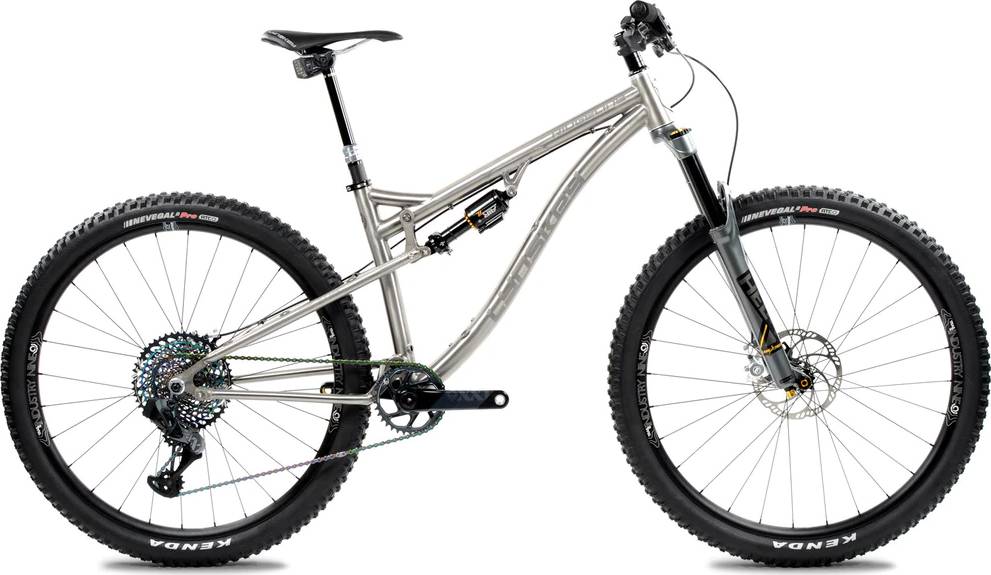

Lynskey Ridgeline Full Suspension 29-140 Shimano XT 1×12 2020
2020 Mountain
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 29" -
Fork Cane Creek HELM -
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Cane Creek Helm Air
Rear Shock
Cane Creek DBair IL
Drivetrain
Rear Derailleur
Shimano XT RD-M8100 12 Speed Rear Derailleur SGS Cage(Long Cage)
Shift Levers
Shimano XT M8100-IL Right I-Spec EV 12 Speed Shifter
Cassette
Shimano XT CS-M8100 12 Speed Cassette 10-51t
Crank
Shimano XT FC-M8120 Boost Crankset 175mm - 178mm Q-Factor
Bottom Bracket
Shimano XT Bottom Bracket
Chain
Shimano CN-M8100 QL Chain - 12 Speed
Wheels
Rims
Stan's Flow MK3
Tires
Kenda Nevegal 2 Pro ATC 29"x2.4"
Cockpit
Stem
FSA Omega stem +/- 6° Rise
Handlebar
Afterburner Low Rise Handlebar 31.8 x 15 x 740mm Black
Headset
Cane Creek 40 IS 42/28.6 - IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Blk
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.38 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 704 mm | 754 mm | 775 mm | 816 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 104 mm | 104 mm | 104 mm | 104 mm |
| Stack | 616 mm | 616 mm | 616 mm | 643 mm |
| Reach | 397 mm | 447 mm | 468 mm | 499 mm |
| Top Tube Length | 549 mm | 599 mm | 620 mm | 658 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 111 mm | 111 mm | 111 mm | 140 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1149 mm | 1199 mm | 1220 mm | 1262 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 722 mm | 735 mm | 747 mm | 773 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Ridgeline Full Suspension 29-140 Shimano XT 1×12 is a Lynskey Ridgeline model. Lynskey launched 46 bikes of this model so far. Take a sneak peek at all Lynskey Ridgeline bikes models from 2020, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The Ridgeline Full Suspension 29-140 Shimano XT 1×12 comes factory-installed with the Cane Creek HELM fork. This has a travel range of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the Ridgeline Full Suspension 29-140 Shimano XT 1×12 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Lynskey Ridgeline Full Suspension 29-140 Shimano XT 1×12 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Lynskey Ridgeline Full Suspension 29-140 Shimano XT 1×12 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
