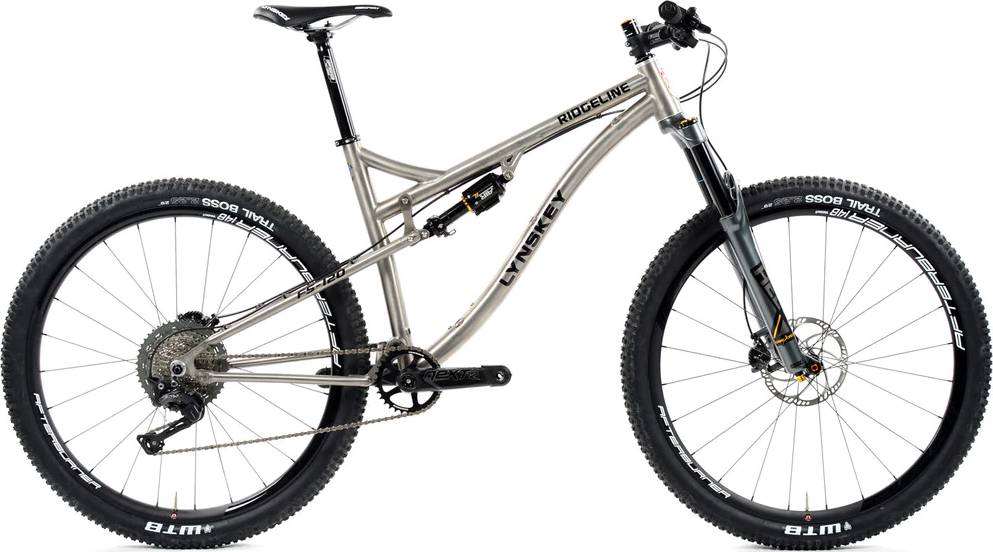

Lynskey Ridgeline Full Suspension 29-140 Shimano XTR 2020
2020 Mountain
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 29" -
Fork Cane Creek HELM -
Groupset XTR -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Cane Creek Helm Works
Rear Shock
Cane Creek DBair IL
Drivetrain
Rear Derailleur
Shimano XTR RD-M9000 11 Speed Rear Derailleur SGS Cage(Shadow)
Shift Levers
Shimano XTR M9000 11 Speed Shifter
Cassette
Shimano XTR CS-M9000 11 Speed Cassette 11-40t
Crank
Shimano XTR Boost Trail Crank Arms 175mm
Bottom Bracket
Shimano XTR BB93 Bottom Bracket
Chain
Shimano CN-HG901 QL Chain - 11 Speed
Wheels
Rims
FSA Afterburner WideR
Tires
Kenda Nevegal 2 Tire 29x2.4
Brakes
Disk Rotors
Shimano XTR SM-RT99 Center Lock
Cockpit
Stem
FSA Omega stem +/- 6° Rise
Handlebar
FSA Comet Low Rise Handlebars
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Black
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.38 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 704 mm | 754 mm | 775 mm | 816 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 104 mm | 104 mm | 104 mm | 104 mm |
| Stack | 616 mm | 616 mm | 616 mm | 643 mm |
| Reach | 397 mm | 447 mm | 468 mm | 499 mm |
| Top Tube Length | 549 mm | 599 mm | 620 mm | 658 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 111 mm | 111 mm | 111 mm | 140 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1149 mm | 1199 mm | 1220 mm | 1262 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 722 mm | 735 mm | 747 mm | 773 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Ridgeline Full Suspension 29-140 Shimano XTR is part of the Lynskey Ridgeline model. There are 46 bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The Ridgeline Full Suspension 29-140 Shimano XTR comes factory-installed with the Cane Creek HELM fork. This has a travel range of mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Lynskey Ridgeline Full Suspension 29-140 Shimano XTR 2020, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ridgeline Full Suspension 29-140 Shimano XTR comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
