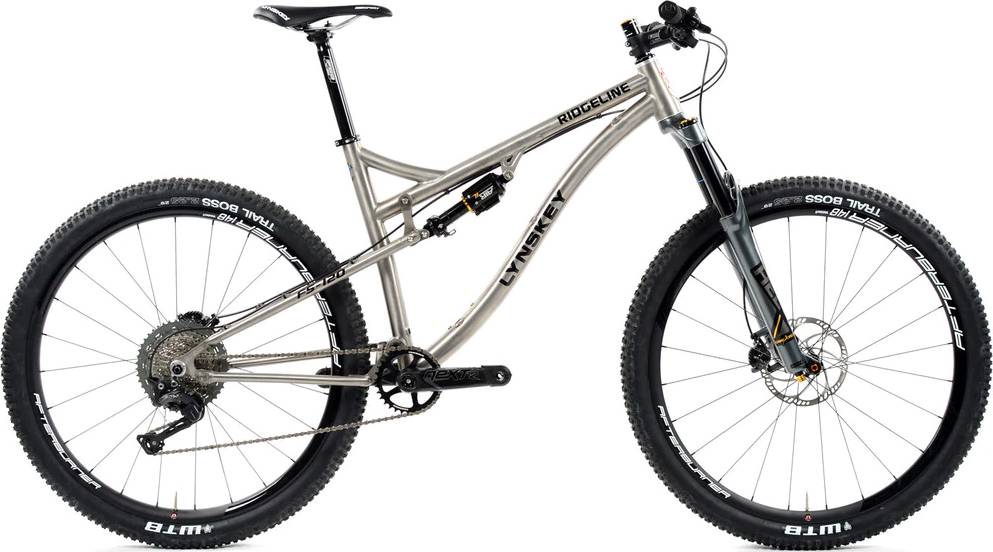

Lynskey Ridgeline Full Suspension 29-140 SRAM GX Eagle 2020
2020 Mountain
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 29" -
Fork Cane Creek HELM -
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
Cane Creek Helm Works
Rear Shock
Cane Creek DBair IL
Drivetrain
Rear Derailleur
SRAM GX Eagle Rear Derailleur - 12 Speed, Long Cage
Shift Levers
SRAM GX Eagle Trigger Shifter - 12 Speed - Discrete Clamp
Cassette
SRAM XG-1275 GX Eagle Cassette 10-50t, 12 Speed
Crank
SRAM GX Eagle DUB Boost 148, 175mm, 32t Crankset
Bottom Bracket
SRAM DUB Bottom Bracket English Threaded 73mm
Chain
SRAM GX Eagle 12-Speed Chain, with PowerLock
Wheels
Rims
FSA Afterburner WideR
Tires
Kenda Nevegal 2 Tire 29x2.4
Brakes
Brake Levers
Magura MT6 Brake Lever with MT6 Disc Caliper
Disk Rotors
Magura Storm SL 160mm Rotor
Cockpit
Stem
FSA Omega stem +/- 6° Rise
Handlebar
FSA Comet Low Rise Handlebars
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seat
Saddle
Lynskey Pro Saddle - Black
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.38 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 704 mm | 754 mm | 775 mm | 816 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 104 mm | 104 mm | 104 mm | 104 mm |
| Stack | 616 mm | 616 mm | 616 mm | 643 mm |
| Reach | 397 mm | 447 mm | 468 mm | 499 mm |
| Top Tube Length | 549 mm | 599 mm | 620 mm | 658 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 111 mm | 111 mm | 111 mm | 140 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1149 mm | 1199 mm | 1220 mm | 1262 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 722 mm | 735 mm | 747 mm | 773 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Ridgeline Full Suspension 29-140 SRAM GX Eagle is part of the Lynskey Ridgeline model. Lynskey released 46 bikes variations of this model so far. You can easily view all of the Lynskey Ridgeline bikes models from 2020, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Ridgeline Full Suspension 29-140 SRAM GX Eagle components
Fork
The Ridgeline Full Suspension 29-140 SRAM GX Eagle comes factory-installed with the Cane Creek HELM fork. This has a travel range of mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the Ridgeline Full Suspension 29-140 SRAM GX Eagle model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ridgeline Full Suspension 29-140 SRAM GX Eagle comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Ridgeline Full Suspension 29-140 SRAM GX Eagle comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
