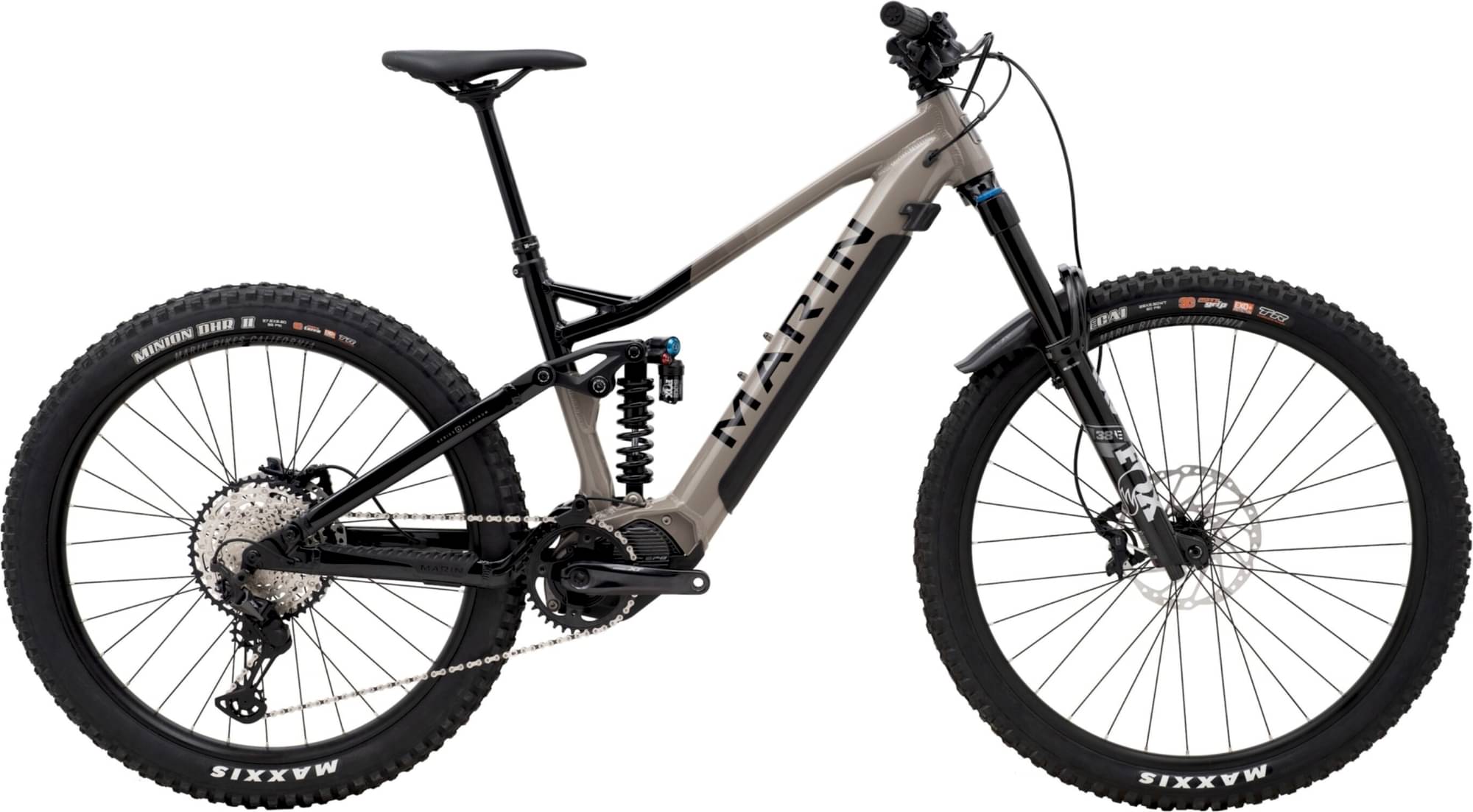

Marin Alpine Trail E2 2023
2023 E-bike
Estimate price |
6,299$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Elite Float 38
-
Groupset XT, SLX -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-EN806, Internal 630Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 169cm
MD
166cm - 179cm
LG
176cm - 189cm
XL
187cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 4 Alloy Frame, 150mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
Suspension Fork
Fox 38 Performance Elite, 160mm travel, 29", 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender
Rear Shock
Fox DHX2, Performance Elite, Low Speed Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount, S/M Spring Rate = 350lb, L/XL Spring Rate = 450lb
Drivetrain
Rear Derailleur
Shimano XT 12-Speed, SGS
Shift Levers
Shimano SLX 12-Speed, I-Spec EV
Cassette
SunRace 12-speed, 11-51
Crank
Shimano XT M8150, 160mm Length, 38t Chainring
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC E12S, eMTB-Specific Chain
Pedals
Marin MTB Plastic
Wheels
Front Hub
Forged Aluminum, 110x15mm, Disc, 32H
Rear Hub
Forged Aluminum, 148x12mm, Disc, 32H
Rims
Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible
Spokes
14g Black Stainless Steel
Tires
Front: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Rear: Vee Tire Co. Crown Gem, 27.5x2.8”, TACKEE Compound, Tubeless Compatible
Brakes
Brakes
TRP DH-R Evo, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor
Brake Levers
TRP DH-R Evo
Cockpit
Stem
Marin CNC, 35mm Length, 35mm Bar Bore
Handlebar
Marin Trail Bar, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Grips
Marin Grizzly Lock On
Headset
FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin eMTB Saddle
Seatpost
X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
Motor & Battery
Motor
Shimano Steps EP801 Drive Unit, 250W, 85Nm
Battery
Shimano BT-EN806, Internal 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.33 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 340.5 mm | 340.5 mm | 340.5 mm | 340.5 mm |
| Front Center | 781 mm | 805 mm | 830 mm | 854 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 153 mm | 154 mm | 153 mm | 154 mm |
| Stack | 620 mm | 629 mm | 638 mm | 647 mm |
| Reach | 452 mm | 472 mm | 492 mm | 512 mm |
| Top Tube Length | 582 mm | 604 mm | 626 mm | 648 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 390 mm | 400 mm | 425 mm | 430 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1222 mm | 1246 mm | 1271 mm | 1295 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 688 mm | 688 mm | 693 mm | 696 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 166 cm | 176 cm | 187 cm |
| Rider Max Height | 169 cm | 179 cm | 189 cm | 193 cm |
About this model
Alpine Trail E2 belongs to the Marin E Alpine model. Marin launched 10 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Marin Alpine Trail E 2023 is the most economical model, with a starting price of 4499$. Marin Alpine Trail E2 2023 on the other hand costs 6299$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6299$. Doing a quick comparison, we notice that Alpine Trail E2 price is 31.64% more expensive than the average cost of an Enduro e-bike.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Elite Float 38 model. The travel on this model is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Fox DHX2 rear shock model, which has a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the Alpine Trail E2 e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Marin Alpine Trail E2 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Marin Alpine Trail E2 e-bike has 4 sizes, in the range of 160 cm – 193 cm (5.25 ft – 6.33 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Marin model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
