Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 6061 Aluminum, Endurance Fit Geometry
Suspension Fork
Carbon w/ Alloy Steerer
Drivetrain
Rear Derailleur
Shimano Tiagra
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano Tiagra 10-Speed
Cassette
SRAM PG-1030 10-Speed, 11-28T
Crank
FSA Gossamer Compact, 50/34T
Bottom Bracket
FSA MegaExo
Chain
KMC X10
Pedals
Resin Road
Wheels
Front Hub
Formula, 28H
Rear Hub
Formula, 32H
Rims
Maddux DRX27, Double Wall, Machined Sidewall, 27mm Height
Tires
Schwalbe Lugano, 700x25C, Kevlar Puncture Protection, Folding
Brakes
Brakes
Tektro R312 Dual Pivot, Cartridge Pads
Brake Levers
Shimano w/ Integrated Shifters
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Compact Drop
Grips
Marin Silicon Gel Tape
Headset
FSA Orbit CE, Sealed Cartridge Bearing
Seat
Saddle
Marin Endurance Concept
Seatpost
Marin Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.47 mm | 1.5 mm | 1.55 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 269 mm | 269 mm |
| Front Center | 587 mm | 595 mm | 600 mm | 605 mm | 615 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 74 mm | 62 mm | 62 mm | 62 mm | 56 mm |
| Stack | 528.5 mm | 554.7 mm | 569 mm | 583.3 mm | 615.6 mm |
| Reach | 369.7 mm | 387.6 mm | 388.1 mm | 388 mm | 398.1 mm |
| Top Tube Length | 511 mm | 536 mm | 551 mm | 566 mm | 586 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 485 mm | 525 mm | 555 mm | 585 mm |
| Head Tube Angle | 70 ° | 72 ° | 72 ° | 72 ° | 73 ° |
| Head Tube Length | 135 mm | 155 mm | 170 mm | 185 mm | 215 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 993 mm | 1001 mm | 1006 mm | 1011 mm | 1021 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 719 mm | 757 mm | 783 mm | 804 mm | 834 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

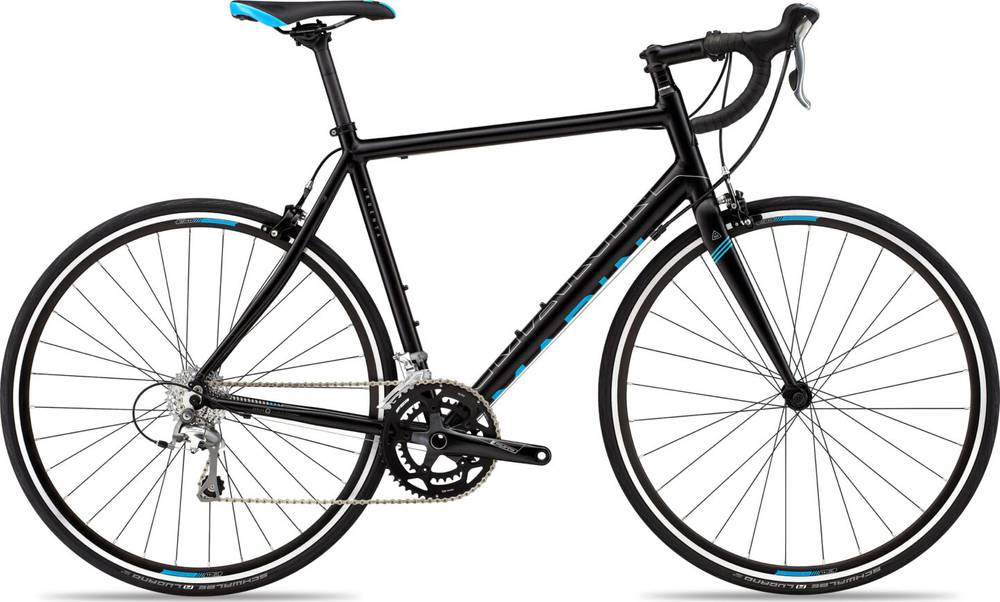

Model Overview
Argenta Elite is a Marin Argenta model. 10 bikes variations carry this model name so far. You can get a glimpse at all models from 2016, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for General Road bikes
According to our calculations, the average cost of a General Road bike that is reliable is 1915$. However, you could also get a good General Road bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Argenta Elite components
Fork material
Argenta Elite has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The Argenta Elite 2016 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Marin Argenta Elite is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
