Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 50mm -
Fork SunTour XCT
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 1 × 7 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 1 6061 Aluminum, 24” Wheels, V-Brake Mounts, 135mm Dropout
Suspension Fork
SR Suntour XCT Jr 24", Pre-Load Adjust Coil Spring, 50mm Travel
Drivetrain
Rear Derailleur
Shimano Altus, 7-Speed
Front Derailleur
---
Shift Levers
Shimano Revo Twist 1x7-Speed
Cassette
Shimano HG-20 7-Speed, 12-32T
Crank
Forged Alloy, 30T, 152mm, Ring Guard
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z50
Pedals
Kids Specific Nylon Pedal
Wheels
Front Hub
Formula, 32H
Rear Hub
Formula, 32H
Rims
Marin, Double Wall Alloy
Spokes
14g Stainless Steel
Tires
Vee Tire, Crown Gem, 24x2.25”, Wire Bead
Brakes
Brakes
Tektro MD280 Mechanical Disc, 160mm Rotor
Brake Levers
Kids Specific Short Reach Alloy Lever
Cockpit
Stem
Marin Alloy, 60mm
Handlebar
Marin Riser, 30mm Rise, 590mm Width
Grips
Marin Dual Density
Headset
FSA, Threaded
Seat
Saddle
Marin Kids MTB
Seatpost
Marin Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13" |
|---|---|
| Stack Reach Ratio | 1.51 mm |
| Bottom Bracket Height | 283 mm |
| Front Center | 548 mm |
| Rake | 40 mm |
| Stack | 508.75 mm |
| Reach | 337.92 mm |
| Top Tube Length | 491 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 321 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 105 mm |
| Chainstay Length | 406 mm |
| Wheelbase | 952 mm |
| Bottom Bracket Drop | 25 mm |
| Standover Height | 613 mm |
| Wheels | 24" |
About this model

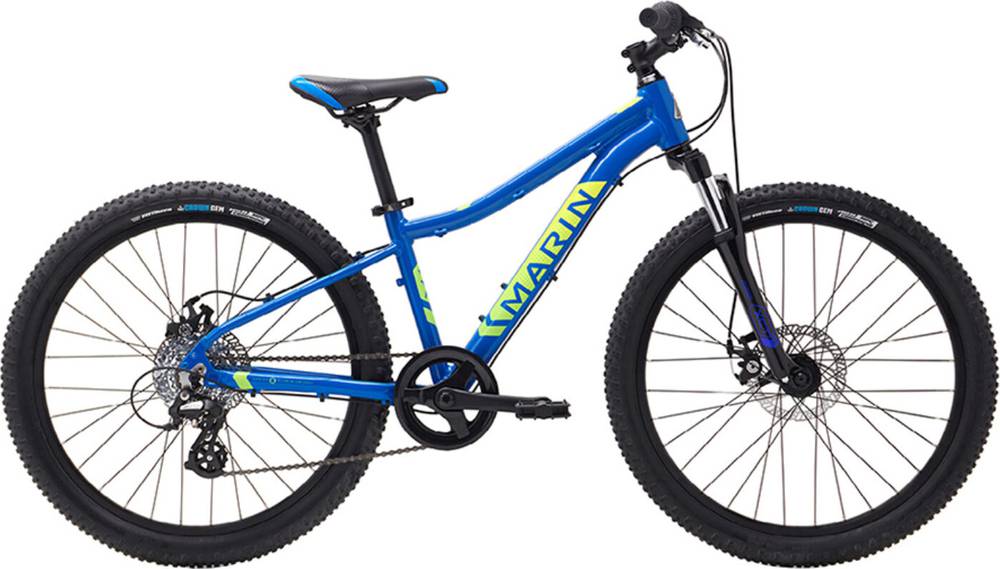

Bayview Trail 24″ Boys is part of the Marin Bayview model. There are 17 bikes that carry this model name. Take a sneak peek at all Marin Bayview bikes models from 2018, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Mountain bikes average price
According to our math, the average price for a trustworthy Mountain bike is 616$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Mountain bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Bayview Trail 24″ Boys components
Fork
Marin Bayview Trail 24″ Boys 2018 bike is equipped with the SunTour XCT fork, and has 50mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Bayview Trail 24″ Boys are the 24″ aluminum type. The 24″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
When you want to stop the bike in time, the brakes are vital. The Bayview Trail 24″ Boys has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
