Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 63mm -
Fork SunTour XCR
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 1 6061 Aluminum, 24” Wheels, Disc Brake Mounts
Suspension Fork
SR Suntour XCR-LO, 63mm Travel
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano Altus
Shift Levers
Shimano Altus 8-Speed
Cassette
Shimano Alivio 8-Speed, 11-34T
Crank
Forged Alloy, 32/22T, Ring Guard
Bottom Bracket
Sealed Cartridge Bearing, Square Taper
Chain
KMC Z51
Pedals
Kids Specific Resin Pedal
Wheels
Front Hub
Formula, 6-Bolt Disc, 32H
Rear Hub
Hub Rear: Formula, 6-Bolt Disc, 32H
Rims
WTB SC17, Double Wall, Disc Specific
Tires
Kenda K-832, 24x2.1”
Brakes
Brakes
Tektro Auriga Hydraulic Disc, 160mm Rotor
Brake Levers
Tektro Auriga Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Riser
Grips
Marin Dual Density
Headset
FSA, Threaded
Seat
Saddle
Marin Kids MTB
Seatpost
Marin Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13" |
|---|---|
| Stack Reach Ratio | 1.5 mm |
| Bottom Bracket Height | 254.6 mm |
| Front Center | 549 mm |
| Rake | 41 mm |
| Stack | 506.4 mm |
| Reach | 338.5 mm |
| Top Tube Length | 491.5 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 321 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 100 mm |
| Chainstay Length | 406 mm |
| Wheelbase | 954 mm |
| Bottom Bracket Drop | 25 mm |
| Standover Height | 601 mm |
| Wheels | 24" |
Model Overview

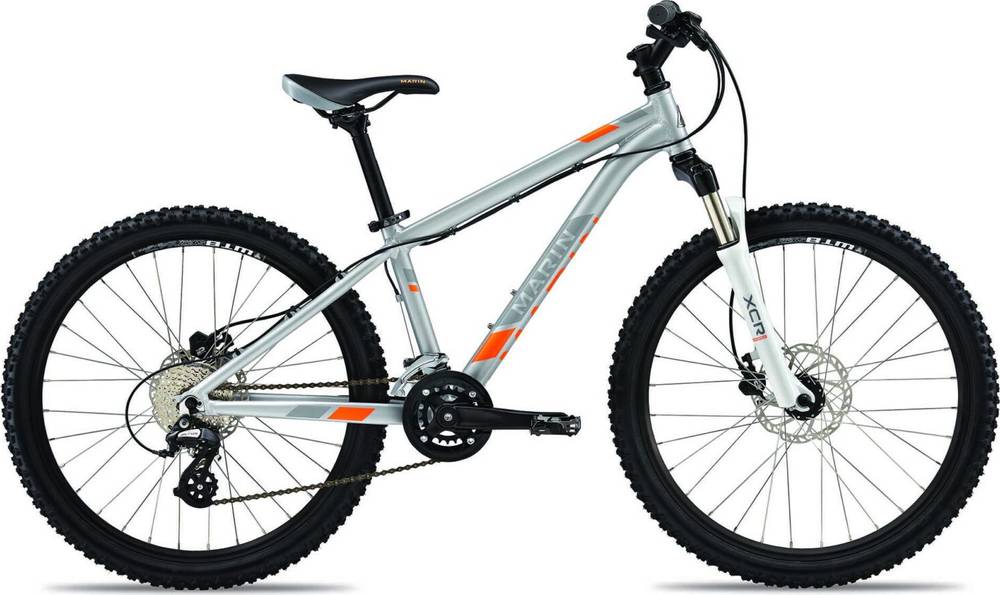

Bayview Trail Disc belongs to the Marin Bayview model. Marin launched 17 bikes of this model so far. Check out the entire range from 2016 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Mountain bikes average price
Our math shows that the average cost of a dependable Mountain bike is 616$. However, you could also get a good Mountain bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Bayview Trail Disc components
Fork
The Bayview Trail Disc comes factory-installed with the SunTour XCR fork. This has a travel range of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the Bayview Trail Disc model has 24″ aluminum wheels. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
Nothing is more important on a bike than its ability to brake properly. Marin Bayview Trail Disc is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
