Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 6061 Aluminum, 27.5" or 29” Wheels, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount
Suspension Fork
SR Suntour XCT HLO, 100mm Travel, Hydraulic Lockout
Drivetrain
Rear Derailleur
Shimano Altus, 8-Speed
Front Derailleur
FD-TY700
Shift Levers
Shimano SL-M310 3x8-Speed
Cassette
SunRace 8-Speed, 11-34T
Crank
Shimano FC-TY301, 42/32/22T
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z8
Pedals
Nylon Platform
Wheels
Front Hub
Joytech, Centerlock Disc, 32H
Rear Hub
Joytech, Centerlock Disc, 32H
Rims
Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
Spokes
14g Black Stainless Steel
Tires
Schwalbe Tough Tom, 27.5" or 29” x 2.25”
Brakes
Brakes
Tektro HDM-285 Hydraulic Disc, 180mm Rotor
Brake Levers
Tektro HDM-285 Hydraulic Disc
Cockpit
Stem
Marin Alloy, 60mm
Handlebar
Marin Mini-Riser, 10mm Rise, 720mm Width
Grips
Marin Dual Density
Headset
FSA No.10-P
Seat
Saddle
Marin MTB
Seatpost
Marin Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.38 mm | 1.34 mm | 1.38 mm | 1.34 mm | 1.32 mm |
| Bottom Bracket Height | 304.5 mm | 304.5 mm | 304.5 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 673 mm | 688 mm | 706 mm | 732 mm | 750 mm | 761 mm |
| Rake | 44 mm | 42 mm | 42 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 576.56 mm | 581.19 mm | 585.83 mm | 616.6 mm | 621.24 mm | 625.88 mm |
| Reach | 407.1 mm | 420.77 mm | 436.44 mm | 447.62 mm | 463.29 mm | 472.96 mm |
| Top Tube Length | 573 mm | 588 mm | 605 mm | 625 mm | 642 mm | 653 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 330 mm | 381 mm | 431 mm | 482 mm | 520 mm | 559 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 115 mm | 120 mm | 125 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1096 mm | 1111 mm | 1129 mm | 1168 mm | 1186 mm | 1197 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 48 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 637 mm | 677 mm | 721 mm | 776 mm | 807 mm | 836 mm |
| Wheels | 27" | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model

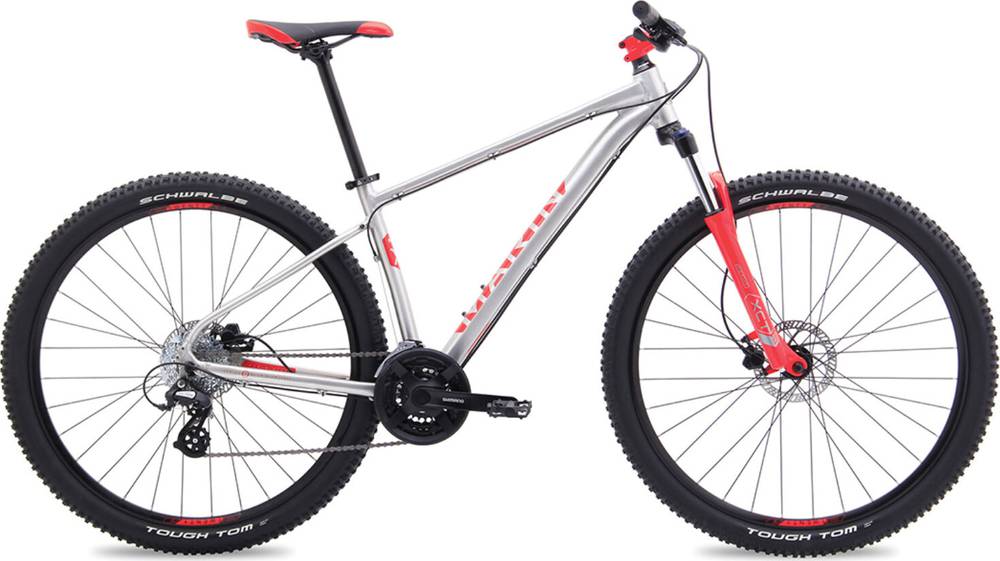

Bobcat Trail 3 completes the Marin Bobcat model. 36 bikes variations carry this model name so far. Take a sneak peek at all Marin Bobcat bikes models from 2018, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The Bobcat Trail 3 comes factory-installed with the SunTour XCT fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the Bobcat Trail 3 bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, you won’t have a problem finding one that suits you.
