Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCM HLO
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
Suspension Fork
SR Suntour XCM HLO, 120mm Travel, Hydraulic Lockout, 46mm Offset
Drivetrain
Rear Derailleur
Shimano Altus, 8-Speed
Front Derailleur
Altus Double
Shift Levers
Shimano SL-M315 2x8-Speed
Cassette
SunRace 8-Speed, 11-34T
Crank
Alloy Crank, Steel Chainrings, 36/22T
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z51
Pedals
Nylon Platform
Wheels
Front Hub
Forged Alloy, 6-Bolt Disc, 32H
Rear Hub
Forged Alloy, 6-Bolt Disc, 32H
Rims
Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
Spokes
14g Black Stainless Steel
Tires
MTB, 27.5/29x2.25"
Brakes
Brakes
Tektro M275 Hydraulic Disc, 160mm Rotor
Brake Levers
Tektro M275 Hydraulic Disc
Cockpit
Stem
Marin Alloy, 31.8 Bar Bore, 45mm
Handlebar
Marin 31.8 Riser, 12mm Rise, 780mm Width
Grips
Marin MTB, Closed End
Headset
FSA No.10-P
Seat
Saddle
Marin MTB
Seatpost
Marin Alloy, 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.36 mm | 1.42 mm | 1.37 mm | 1.33 mm |
| Bottom Bracket Height | 307 mm | 307 mm | 311.5 mm | 311.5 mm | 311.5 mm |
| Front Center | 713 mm | 725 mm | 744 mm | 766 mm | 783 mm |
| Rake | 44 mm | 44 mm | 51 mm | 51 mm | 51 mm |
| Trail | 100 mm | 100 mm | 95 mm | 95 mm | 95 mm |
| Stack | 597.3 mm | 602 mm | 627.3 mm | 632 mm | 636.5 mm |
| Reach | 433 mm | 443 mm | 443 mm | 463 mm | 478 mm |
| Top Tube Length | 599 mm | 610.5 mm | 617.5 mm | 638.8 mm | 655 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 381 mm | 431 mm | 431 mm | 482 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 105 mm | 110 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 423 mm | 423 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1131 mm | 1143 mm | 1175 mm | 1197 mm | 1214 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 657 mm | 703 mm | 712 mm | 742 mm | 772 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 180 cm | 189 cm | 199 cm |
About this model

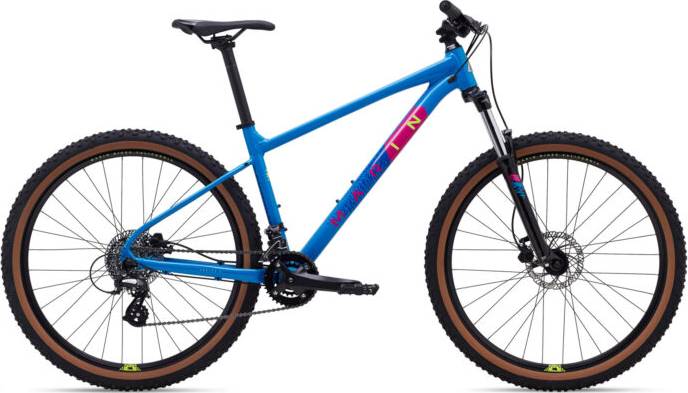

Bobcat Trail 3 is part of the Marin Bobcat model. Marin released 36 bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Marin Bobcat Trail 3 2020 is the most affordable bike of this model and has a price of 599$. On the other hand, Marin Bobcat Trail 5 2020, is the most expensive and costs 899$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 599$. Comparing the average cost of a Trail bike to this one, you will see that Bobcat Trail 3 price is 361.1% lower.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
Marin Bobcat Trail 3 2020 bike is equipped with the SunTour XCM HLO fork, and has 120mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When it comes to wheels, the Bobcat Trail 3 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Marin Bobcat Trail 3 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Marin Bobcat Trail 3 bike has 5 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
