Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour XCM HLO
-
Groupset Altus, microSHIFT -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 6061 Aluminum, 27.5" or 29” Wheels, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount
Suspension Fork
SR Suntour XCM HLO-DS, 9mm QR, 100mm Travel, Hydraulic Lockout
Drivetrain
Rear Derailleur
Shimano Altus, 9-Speed, Shadow Design
Front Derailleur
MicroSHIFT, FD-M462B, Band Clamp
Shift Levers
Shimano Acera 2x9
Cassette
SunRace 9-Speed, 11-36T
Crank
SR Suntour, XCM, 36x22T
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC X9
Pedals
Nylon Platform
Wheels
Front Hub
Forged Alloy, 6-Bolt Disc, 32H
Rear Hub
Forged Alloy, 6-Bolt Disc, 32H
Rims
Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
Spokes
14g Black Stainless Steel
Tires
Vee Tire, Crown Gem 29x2.3"/27.5x2.3", Dual Control Compound, Wire Bead
Brakes
Brakes
Tektro M275 Hydraulic Disc, 180mm Rotor
Brake Levers
Tektro M275 Hydraulic
Cockpit
Stem
Marin Alloy, 45mm
Handlebar
Marin Riser, 12mm Rise, 780mm Width
Grips
Marin MTB, Closed End
Headset
FSA No.10-P
Seat
Saddle
Marin MTB
Seatpost
Marin Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.38 mm | 1.34 mm | 1.38 mm | 1.34 mm | 1.32 mm |
| Bottom Bracket Height | 304.5 mm | 304.5 mm | 304.5 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 673 mm | 688 mm | 706 mm | 732 mm | 750 mm | 761 mm |
| Rake | 44 mm | 44 mm | 44 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 576.56 mm | 581.19 mm | 585.83 mm | 616.6 mm | 621.24 mm | 625.88 mm |
| Reach | 407.1 mm | 420.77 mm | 436.44 mm | 447.62 mm | 463.29 mm | 472.96 mm |
| Top Tube Length | 573 mm | 588 mm | 605 mm | 625 mm | 642 mm | 653 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 72.7 ° | 72.7 ° | 72.7 ° |
| Seat Tube Length | 330 mm | 381 mm | 431 mm | 482 mm | 520 mm | 559 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 115 mm | 120 mm | 125 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1096 mm | 1111 mm | 1129 mm | 1168 mm | 1186 mm | 1197 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 48 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 637 mm | 677 mm | 721 mm | 776 mm | 807 mm | 836 mm |
| Wheels | 27" | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |

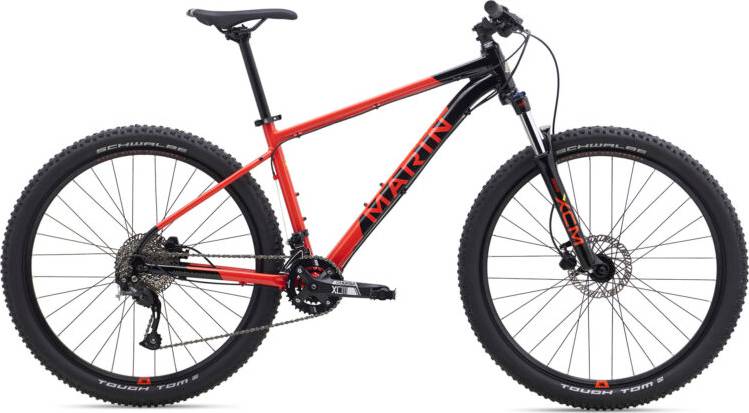

About this model
Bobcat Trail 4 completes the Marin Bobcat model. There are 36 bikes that carry this model name. You can easily view all of the Marin Bobcat bikes models from 2019, here.
Model range prices
The most economical model, the Marin Bobcat Trail 3 2019 has a starting price of 599$. Marin Bobcat Trail 5 2019 on the other hand is the most expensive at 989$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 699$. Comparing the average cost of a Crosscountry bike to this one, you will see that Bobcat Trail 4 price is 172.53% lower.
Overview of components
Fork
This bike has the SunTour XCM HLO fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The Bobcat Trail 4 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Bobcat Trail 4 comes in 6 sizes, that range from 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, you won’t have a problem finding one that suits you.
