Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 6061 Aluminum, 27.5” or 29" Wheels, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount
Suspension Fork
RockShox Recon Silver, TK Coil Spring, 100mm Travel (80mm Size XS & S)
Drivetrain
Rear Derailleur
Shimano Deore Shadow Plus SGS 10-Speed
Front Derailleur
- - -
Shift Levers
Shimano Deore 1x10-Speed
Cassette
SunRace 10-Speed, 11-42T
Crank
Marin Forged Alloy 1x10, Hollow Spindle, Steel Narrow-Wide 32T Chainring, 76mm BCD
Bottom Bracket
External Sealed Cartridge Bearings
Chain
KMC X10
Pedals
Nylon Platform
Wheels
Front Hub
Formula, Centerlock Disc, 32H
Rear Hub
Formula, Centerlock Disc, 32H
Rims
Marin Aluminum Double Wall, 27mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Spokes
14g Black Stainless Steel
Tires
Schwalbe Tough Tom, 27.5” or 29" x 2.25"
Brakes
Brakes
Shimano BR-M315 Hydraulic Disc, 180mm Rotor
Brake Levers
Shimano BL-365 Hydraulic
Cockpit
Stem
Marin Alloy, 60mm
Handlebar
Marin Mini-Riser, 10mm Rise, 720mm Width
Grips
Marin Dual Density
Headset
FSA No.10-P
Seat
Saddle
Marin MTB
Seatpost
Marin Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.38 mm | 1.34 mm | 1.38 mm | 1.34 mm | 1.32 mm |
| Bottom Bracket Height | 304.5 mm | 304.5 mm | 304.5 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 673 mm | 688 mm | 706 mm | 732 mm | 750 mm | 761 mm |
| Rake | 44 mm | 42 mm | 42 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 96 mm | 89 mm | 89 mm | 89 mm |
| Stack | 576.56 mm | 581.19 mm | 585.83 mm | 616.6 mm | 621.24 mm | 625.88 mm |
| Reach | 407.1 mm | 420.77 mm | 436.44 mm | 447.62 mm | 463.29 mm | 472.96 mm |
| Top Tube Length | 573 mm | 588 mm | 605 mm | 625 mm | 642 mm | 653 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 330 mm | 381 mm | 431 mm | 482 mm | 520 mm | 559 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 115 mm | 120 mm | 125 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1096 mm | 1111 mm | 1129 mm | 1168 mm | 1186 mm | 1197 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 48 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 637 mm | 677 mm | 721 mm | 776 mm | 807 mm | 836 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |

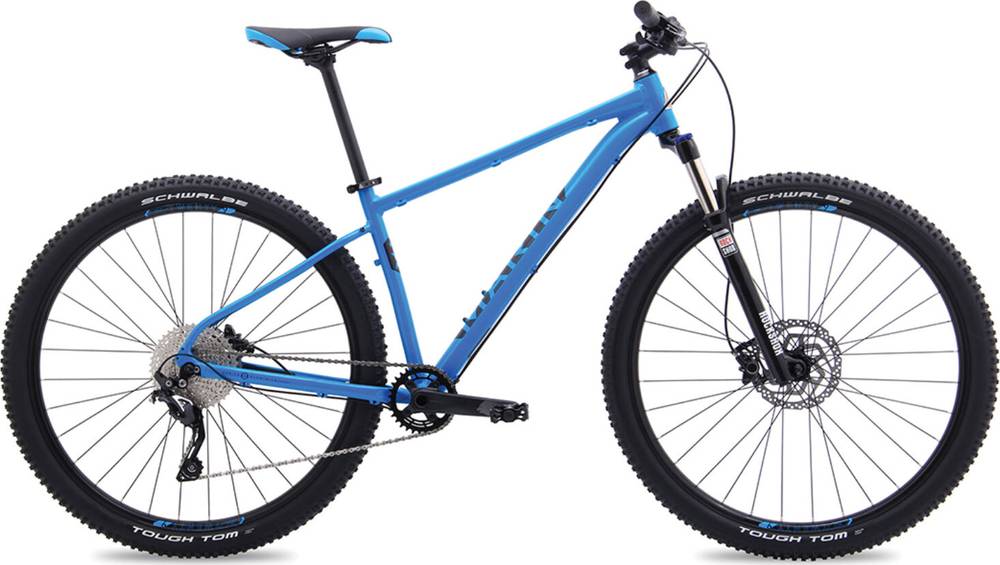

Model Overview
Bobcat Trail 5 is part of the Marin Bobcat model. 36 bikes variations carry this model name so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
The RockShox Recon Silver RL is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on Bobcat Trail 5 are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Marin Bobcat Trail 5 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 6 sizes. They vary from 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
