Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 75mm -
Fork SunTour
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 1 6061 Aluminum, 26” Wheels, 68mm BB shell, 135mm Forged Dropouts
Suspension Fork
SR Suntour M3030, 75mm Travel
Drivetrain
Rear Derailleur
Shimano Tourney, RD-TY300
Front Derailleur
Shimano FD-TX500
Shift Levers
Shimano Tourney 7-Speed, ST-EF41-L
Cassette
Sunrace 7-Speed, 11-34T
Crank
Shimano FC-TY301, 42/34/24T
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z50
Pedals
Resin Platform
Wheels
Front Hub
Formula, 32H
Rear Hub
Formula, 32H
Rims
Marin, Double Wall Alloy
Tires
Marin, Double Wall Alloy
Brakes
Brakes
Forged Alloy Linear Pull
Brake Levers
Shimano w/ Integrated Shifters
Cockpit
Stem
Marin Alloy
Handlebar
Marin Riser, 25mm Rise
Grips
Marin Dual Density
Headset
FSA No.10-P
Seat
Saddle
Marin MTB
Seatpost
Marin Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM |
|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.35 mm |
| Bottom Bracket Height | 302.5 mm | 302.5 mm |
| Front Center | 648 mm | 663 mm |
| Rake | 39 mm | 39 mm |
| Trail | 90 mm | 90 mm |
| Stack | 555.46 mm | 560.13 mm |
| Reach | 402.57 mm | 416.14 mm |
| Top Tube Length | 573 mm | 588 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 381 mm |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 105 mm |
| Chainstay Length | 428 mm | 428 mm |
| Wheelbase | 1073 mm | 1088 mm |
| Bottom Bracket Drop | 35 mm | 35 mm |
| Standover Height | 635 mm | 675 mm |
| Wheels | 26" | 26" |
About this model

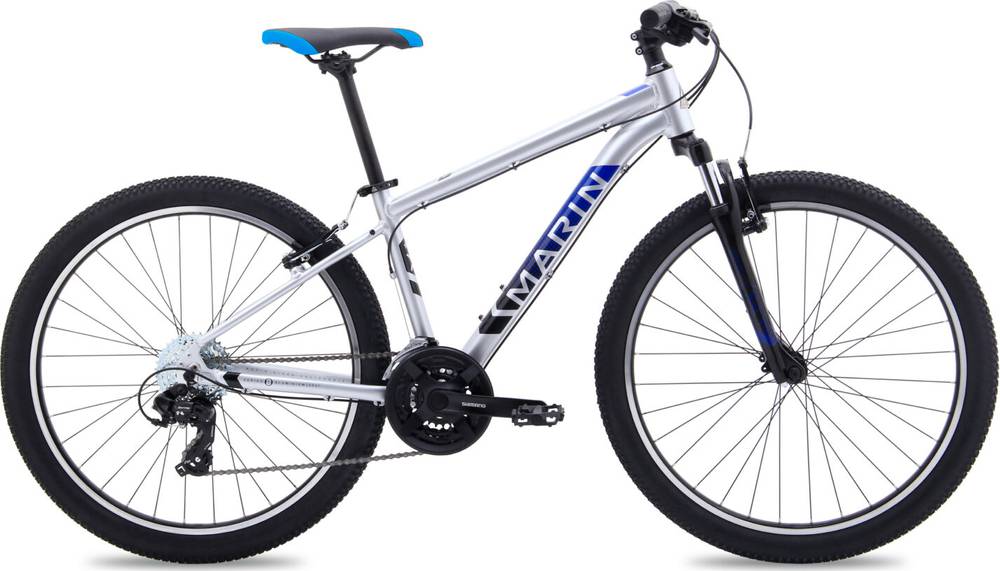

Bolinas Ridge 26′ is a Marin Bolinas model. There are 22 bikes that carry this model name. Take a sneak peek at all Marin Bolinas bikes models from 2017, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Bolinas Ridge 26′ components
Fork
The Bolinas Ridge 26′ comes factory-installed with the SunTour fork. This has a travel range of 75mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The Bolinas Ridge 26′ 2017 bike is equipped with 26″ aluminum wheels when leaving the factory. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Bolinas Ridge 26′ has Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
