Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 75mm -
Fork SunTour
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 1 6061 Aluminum, 26” Wheels
Suspension Fork
SR Suntour M3030, 75mm Travel
Drivetrain
Rear Derailleur
Shimano Tourney
Front Derailleur
Shimano FD-TX50
Shift Levers
Shimano Tourney 7-Speed
Cassette
Sunrace 7-Speed, 11-34T
Crank
Forged Alloy, 42/34/24T
Bottom Bracket
Sealed Cartridge Bearing, Square Taper
Chain
KMC Z51
Pedals
Resin Platform
Wheels
Front Hub
Formula, 32H
Rear Hub
Formula, 32H
Rims
Maddux Double Wall, Machined Sidewall
Tires
Vee Tire Galaxy, 26x2.1
Brakes
Brakes
Forged Alloy Linear Pull
Brake Levers
Shimano w/ Integrated Shifters
Cockpit
Stem
Marin Alloy
Handlebar
Marin Riser
Grips
Marin Dual Density
Headset
FSA No.10-P
Seat
Saddle
Marin MTB
Seatpost
Marin Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.49 mm | 1.43 mm | 1.39 mm | 1.4 mm | 1.42 mm |
| Bottom Bracket Height | 305.5 mm | 305.5 mm | 305.5 mm | 305.5 mm | 305.5 mm | 305.5 mm |
| Front Center | 641 mm | 656 mm | 671 mm | 692 mm | 714 mm | 725 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 82 mm | 85 mm | 87 mm | 87 mm | 83 mm | 87 mm |
| Stack | 591.31 mm | 591.31 mm | 591.31 mm | 600.65 mm | 619.32 mm | 637.99 mm |
| Reach | 379.6 mm | 396.61 mm | 413.61 mm | 430.75 mm | 442.04 mm | 449.33 mm |
| Top Tube Length | 563 mm | 578 mm | 595 mm | 615 mm | 632 mm | 645 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 382.1 mm | 431.8 mm | 482 mm | 520 mm | 559 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1065 mm | 1080 mm | 1095 mm | 1116 mm | 1138 mm | 1149 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Standover Height | 640 mm | 682 mm | 723 mm | 765 mm | 799 mm | 832 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model

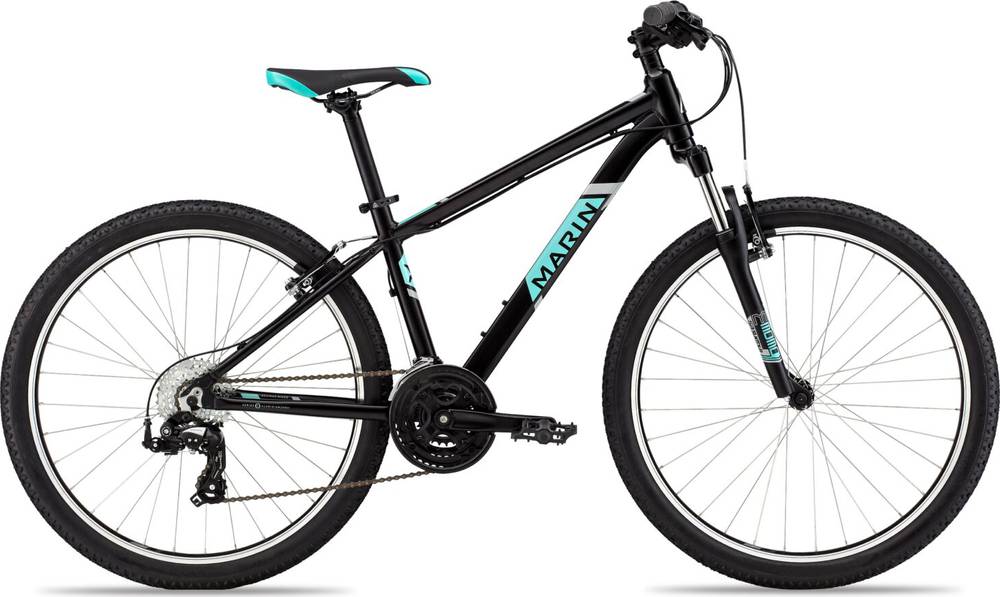

Bolinas Ridge 6.0 belongs to the Marin Bolinas model. 22 bikes variations carry this model name so far. Take a sneak peek at all Marin Bolinas bikes models from 2016, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Bolinas Ridge 6.0 components
Fork
The SunTour is included from the factory. It has a travel distance of 75mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on Bolinas Ridge 6.0 are the 26″ aluminum type. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
For your safety, it is important to have quality breaks on your bike. Marin Bolinas Ridge 6.0 has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Marin Bolinas Ridge 6.0 bike has 6 sizes, in the range of 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
