Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 167cm
MD
164cm - 177cm
LG
174cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 1 6061 Aluminum, 27.5” Wheels, 68mm BB shell, 135mm Forged Dropouts, Disc Brake
Suspension Fork
SR Suntour XCM Disc, 120mm Travel, Preload Adjustment
Drivetrain
Rear Derailleur
Shimano Acera, 8-Speed
Front Derailleur
Shimano Altus
Shift Levers
Shimano SLM315 Rapid Fire, 2x8-Speed
Cassette
Shimano HG-200, 8-Speed, 11-32T
Crank
Forged Alloy, Steel Chainrings, 36/22T
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z8
Pedals
Nylon Platform
Wheels
Front Hub
Forged Alloy, 6-Bolt Disc, 32H
Rear Hub
Forged Alloy, 6-Bolt Disc, 32H
Rims
Double Wall Alloy
Tires
MTB, 27.5x2.25"
Brakes
Brakes
hydraulicDisc
Brake Levers
Tektro M275 Hydraulic Disc
Cockpit
Stem
Alloy, 31.8mm, 45mm
Handlebar
31.8 Riser, 20mm Rise, 740mm Width
Grips
Entity MTB, Closed End
Headset
44mm Zero Stack, 8mm Cone
Seat
Saddle
Entity MTB
Seatpost
Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.52 mm | 1.55 mm |
| Bottom Bracket Height | 299 mm | 299 mm | 299 mm |
| Front Center | 646 mm | 661 mm | 681 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 91 mm | 91 mm | 105 mm |
| Stack | 616 mm | 616 mm | 656 mm |
| Reach | 389.5 mm | 404.5 mm | 423 mm |
| Top Tube Length | 576 mm | 591 mm | 611 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 456 mm | 506 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 100 mm | 105 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1078 mm | 1093 mm | 1113 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm |
| Standover Height | 719 mm | 759 mm | 799 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 157 cm | 164 cm | 174 cm |
| Rider Max Height | 167 cm | 177 cm | 182 cm |

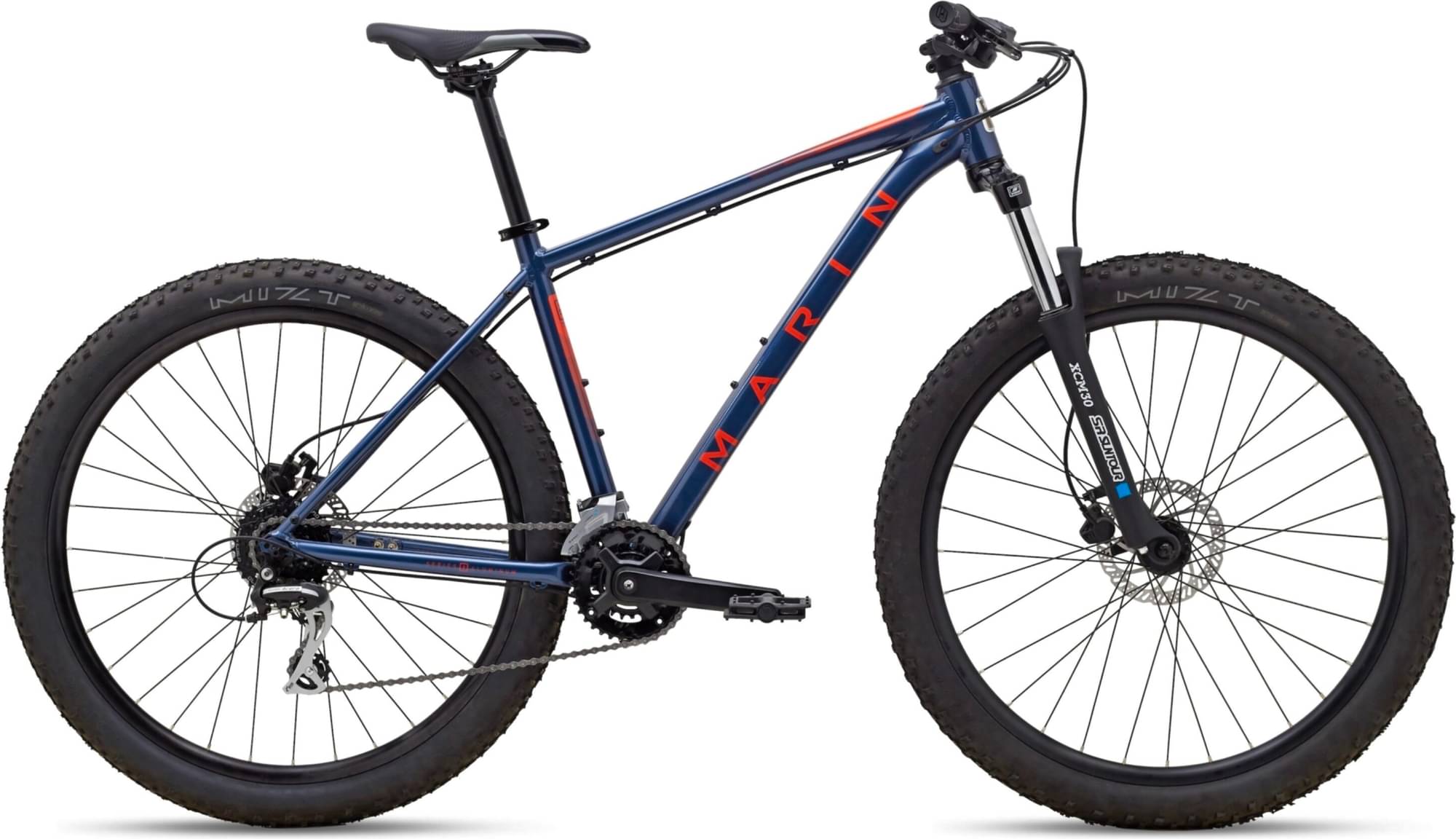

About this model
Eldridge Grade completes the Marin Eldridge model. 4 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Marin Eldridge Grade 2020 is the most economical model, with a starting price of 649$. Marin Eldridge Grade 1 2020 on the other hand costs 699$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2020 for 649$. Comparing the average cost of a Trail bike to this one, you will see that Eldridge Grade price is 325.58% smaller.
Overview of components
Fork
The Suntour XCM is included from the factory. It has a travel distance of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the Eldridge Grade bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Marin Eldridge Grade is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Marin Eldridge Grade bike has 3 sizes, in the range of 157 cm – 182 cm (5.15 ft – 5.97 ft). In conclusion, finding one for you shouldn’t be a problem.
