Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Tourney, Shimano -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
149cm - 156cm
SM
153cm - 167cm
MD
164cm - 177cm
LG
174cm - 187cm
XL
184cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 1 Fitness, 6061 Aluminum, 700C Wheels, Disc Brake, Internal Cable Routing, Fender, Rack and Kickstand Mounts
Suspension Fork
Cr-Mo Steel, Straight Blade, Disc Mount, Fender and Rack Eyelets
Drivetrain
Rear Derailleur
Shimano Tourney, 7-Speed
Front Derailleur
Shimano TY510
Shift Levers
Shimano Shifter/Brake Lever Combo, 3x7-Speed
Cassette
SunRace 7-Speed, 11-34T
Crank
Alloy Crank, Steel Chainrings, 48/38/28T, Ring Guard
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z8
Pedals
Commute Platform
Wheels
Front Hub
Forged Aluminum Alloy, Disc, 32H
Rear Hub
Forged Aluminum Alloy, Disc, 32H
Rims
Marin Aluminum Double Wall, Disc Specific
Tires
Fitness 700Cx35mm
Brakes
Brakes
mechanicalDisc
Brake Levers
Shimano w/ Integrated Shifters
Cockpit
Stem
Marin Alloy Threadless
Handlebar
Marin Alloy, 30mm Rise
Grips
Marin Commute
Headset
FSA, Threadless
Seat
Saddle
Marin Fitness Plush
Seatpost
Marin Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.43 mm | 1.41 mm | 1.39 mm | 1.4 mm |
| Bottom Bracket Height | 283.5 mm | 283.5 mm | 283.5 mm | 283.5 mm | 283.5 mm |
| Front Center | 615 mm | 634 mm | 661 mm | 688 mm | 712 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm |
| Stack | 554 mm | 568.3 mm | 587 mm | 606 mm | 634.3 mm |
| Reach | 382 mm | 397 mm | 417 mm | 437 mm | 452 mm |
| Top Tube Length | 547 mm | 566.2 mm | 591.8 mm | 617.4 mm | 640.8 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 520 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 140 mm | 155 mm | 175 mm | 195 mm | 225 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1047 mm | 1067 mm | 1093 mm | 1120 mm | 1145 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 657 mm | 702 mm | 742 mm | 777 mm | 806 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 149 cm | 153 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 156 cm | 167 cm | 177 cm | 187 cm | 190 cm |

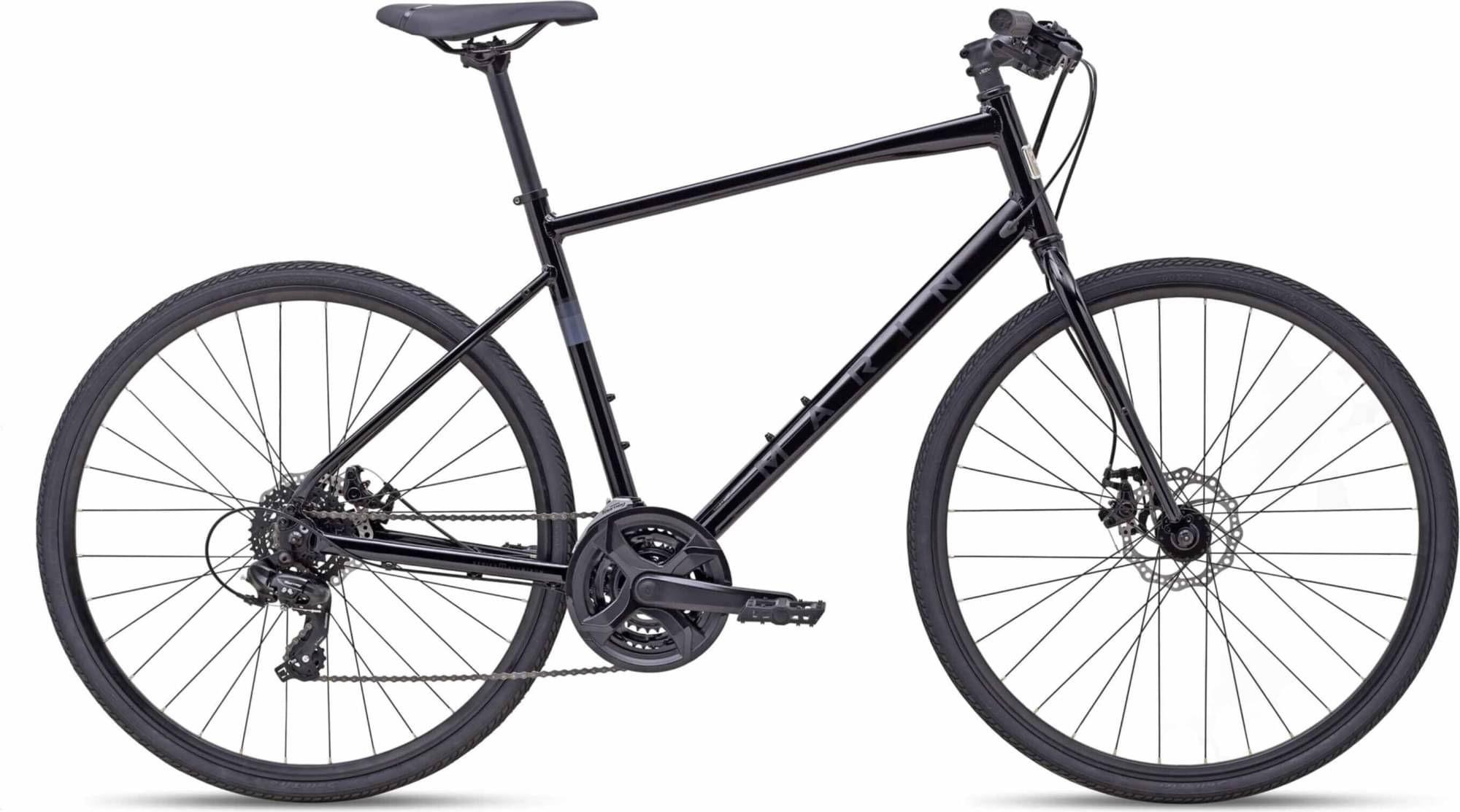

Model Overview
Fairfax 1 is part of the Marin Fairfax model. There are 57 bikes that carry this model name. You can easily view all of the Marin Fairfax bikes models from 2022, here.
Model range prices
The most economical model, the Marin Fairfax ST 1 2022 has a starting price of 599$. Marin Fairfax 3 2022 on the other hand is the most expensive at 1069$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Fitness bikes average price
If you want an acceptable Fitness bike you should know that the average price is 656$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fitness bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 599$. Doing a quick comparison, we notice that Fairfax 1 price is 9.52% smaller than the average cost of a Fitness bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
Fairfax 1 has a steel fork, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
When it comes to wheels, the Fairfax 1 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Marin Fairfax 1 bike has 5 sizes, in the range of 149 cm – 190 cm (4.89 ft – 6.23 ft). In conclusion, finding one for you shouldn’t be a problem.
