Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset SRAM, VIA Centro -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series Three 6061 Aluminum, 700c Wheels, Relieved Head Tube and BB, Internal Cable Routing, Post Mount Disc Specific Forged Dropouts
Suspension Fork
RFE Carbon with Alloy Steerer tube
Drivetrain
Rear Derailleur
SRAM Via GT 2x10-Speed
Front Derailleur
SRAM Via Centro 2x10-Speed
Shift Levers
SRAM SL500, 2x10-Speed Trigger
Cassette
SRAM PG1020, 11-36, 10-Speed
Crank
SRAM S1000 2x10, 48/32T
Bottom Bracket
SRAM GXP
Chain
KMC X10
Pedals
Full Alloy Sport Flat
Wheels
Front Hub
Formula, 32 Hole
Rear Hub
Formula, 32 Hole
Rims
Maddux SR300 700c, 30mm Tall with Sleeve Joint, 32 Hole
Tires
Continental Sport Contact II 700x32c with Safety System Puncture Protection And Reflective Sidewall
Brakes
Brakes
Tektro Gemini Hydraulic Disc, 6” Rotor
Brake Levers
Tektro Gemini
Cockpit
Stem
Marin OS Alloy Threadless, 31.8mm Bar Clamp
Handlebar
Double Butted Flat Top, 6061 Alloy, OS-31.8mm, 700mm Wide
Grips
Ergon GS1 Locking Ergonomic
Headset
FSA Orbit C, 1 1/8
Seat
Saddle
Ergon SM30
Seatpost
Marin 3D Forged with Alloy Micro Adjust, 15mm Offset, 400mm Length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.48 mm | 1.5 mm | 1.52 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Front Center | 591 mm | 606 mm | 621 mm | 636 mm | 656 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 555.89 mm | 574.97 mm | 594.04 mm | 613.11 mm | 641.73 mm |
| Reach | 382.74 mm | 392.09 mm | 401.44 mm | 409.94 mm | 421.19 mm |
| Top Tube Length | 548 mm | 563 mm | 578 mm | 598 mm | 618 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 482.6 mm | 520.7 mm | 558.8 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 135 mm | 155 mm | 175 mm | 195 mm | 225 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1012 mm | 1027 mm | 1043 mm | 1057 mm | 1077 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 677 mm | 723 mm | 768 mm | 801 mm | 837 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

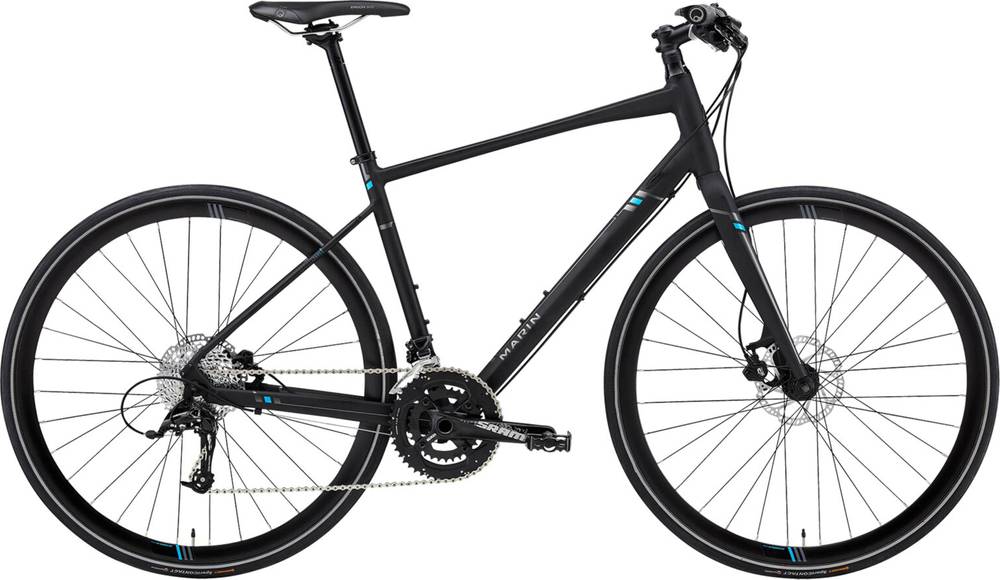

Fairfax SC5 completes the Marin Fairfax model. Marin launched 57 bikes of this model so far. You can easily view all of the Marin Fairfax bikes models from 2015, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Fitness bikes average price
According to our math, the average price for a trustworthy Fitness bike is 656$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fitness bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the Fairfax SC5 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Fairfax SC5 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
