Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Rival 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 4 6066/6061 Aluminum, 700C Wheels, Tapered Head Tube, Relieved BB, Internal Cable Routing, Post Mount Disc, 142x12mm Naild 12.3.9 Thru-Axle
Suspension Fork
Naild NavIt Carbon, Tapered Alloy Steerer, Naild Locking Thru-Axle, IceIt Brake Cooling Fin
Drivetrain
Rear Derailleur
SRAM Rival 1
Front Derailleur
-
Shift Levers
SRAM Rival 1x11 Speed
Cassette
SRAM XG-1150 11-Speed, 10-42T
Crank
SRAM Rival 1, X-Sync 42T
Bottom Bracket
SRAM GXP
Chain
KMC X11
Pedals
Commute Platform
Wheels
Front Hub
Forged Aluminum Alloy, 100x15mm, 6-Bolt Disc, 32H
Rear Hub
Forged Aluminum Alloy, 142x12mm, Alloy Axle, Quad Cartridge Sealed Bearings, SRAM XD Driver, 6-Bolt Disc, 32H
Rims
Marin Aluminum Double Wall, 21mm Inner, 30mm Tall, Disc Specific, Tubeless Compatible
Tires
Schwalbe G-ONE Evo, 700Cx30, Kevlar Puncture Protection, Folding Bead, Tubeless Compatible
Brakes
Brakes
SRAM Rival Hydraulic Disc, 160mm Rotor
Brake Levers
SRAM Rival 22 DoubleTap Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Compact 12º Flared Drop, Flat Top
Grips
Marin Shock Absorbing Microfiber Tape
Headset
FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 3/8”
Seat
Saddle
Marin Beyond Road Concept Elite
Seatpost
Marin Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.58 mm | 1.55 mm | 1.57 mm | 1.56 mm | 1.59 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 550 mm | 567 mm | 588 mm | 600 mm | 620 mm | 629 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 62 mm | 60 mm | 60 mm | 59 mm | 59 mm | 59 mm |
| Stack | 551.8 mm | 567 mm | 581.2 mm | 601.2 mm | 620.3 mm | 639.4 mm |
| Reach | 344.4 mm | 359.7 mm | 375.4 mm | 383.8 mm | 398 mm | 401 mm |
| Top Tube Length | 502 mm | 527 mm | 547 mm | 567 mm | 587 mm | 602 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 72 ° | 72.25 ° | 72.25 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 955 mm | 973 mm | 993 mm | 1006 mm | 1026 mm | 1035 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 762 mm | 778 mm | 795 mm | 814 mm | 833 mm | 851 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

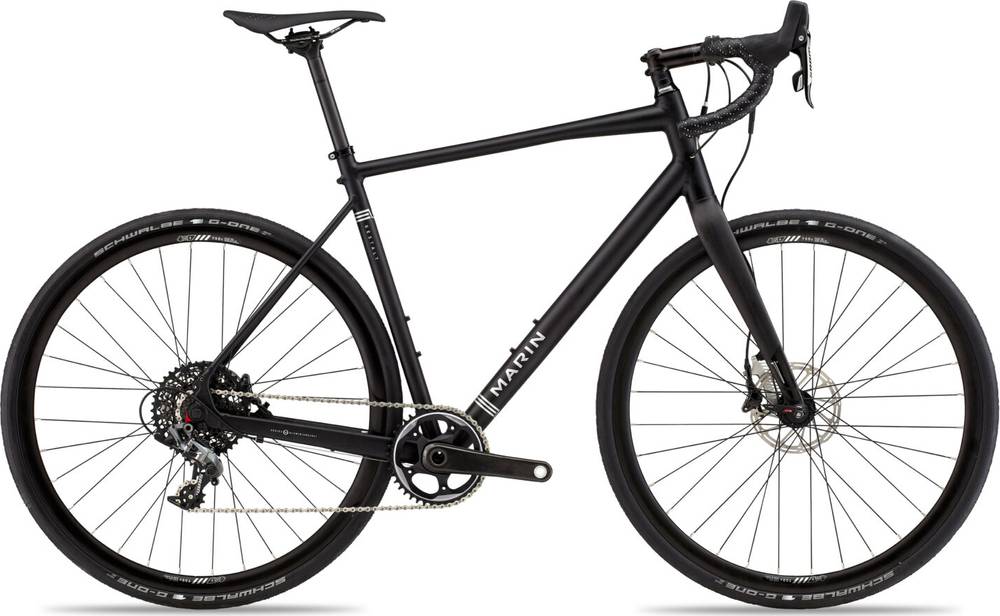

Gestalt 3 is a Marin Gestalt model. Marin launched 42 bikes of this model so far. Take a sneak peek at all Marin Gestalt bikes models from 2017, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Gestalt 3 components
Fork material
Gestalt 3 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on Gestalt 3 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Marin Gestalt 3 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
