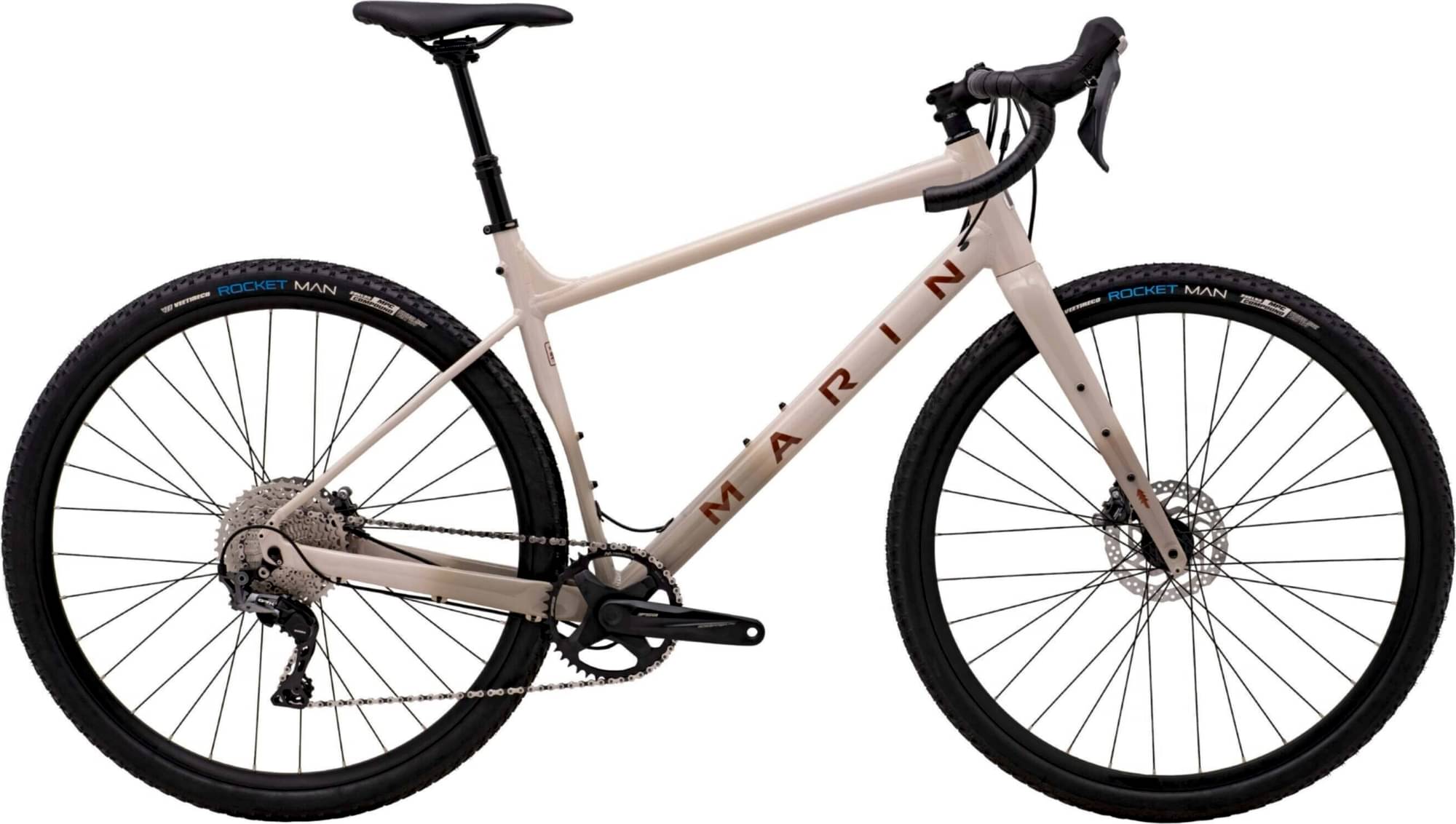

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 600, FSA -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 169cm
MD
166cm - 179cm
LG
176cm - 189cm
XL
187cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Suspension Fork
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Drivetrain
Rear Derailleur
Shimano GRX RDX812, Shadow w/ Clutch
Front Derailleur
-
Shift Levers
Shimano GRX GX810, 1x11-Speed, Integrated Dropper Lever
Cassette
Shimano CS-M5100 11-Speed, 11-42T
Crank
FSA Gossamer Pro, Megatooth 42T Chainring, BB386EVO Alloy Spindle
Bottom Bracket
FSA MegaExo Threaded
Chain
KMC X11
Pedals
-
Wheels
Front Hub
Forged Aluminum Alloy, 100x12mm, Disc, 32H
Rear Hub
Forged Aluminum Alloy, 142x12mm, Disc, 32H
Rims
Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible
Tires
Vee Tire Co. Rocket Man, 700x44, Tubeless Compatible
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano GRX Hydraulic w/ Shifter and Integrated Dropper Lever
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Butted Alloy, Compact 16º Flared Drop
Grips
Marin Shock Absorbing Perforated Tape
Headset
FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Seat
Saddle
Marin Beyond Road Concept Elite
Seatpost
TranzX YSP38J Dropper Post, 105mm/85mm Travel, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.35 mm | 1.35 mm | 1.36 mm |
| Bottom Bracket Height | 282.5 mm | 282.5 mm | 282.5 mm | 282.5 mm |
| Front Center | 653 mm | 680 mm | 710 mm | 743 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 90 mm | 90 mm | 90 mm | 90 mm |
| Stack | 539.6 mm | 558 mm | 581.1 mm | 613.5 mm |
| Reach | 392 mm | 412 mm | 432 mm | 452 mm |
| Top Tube Length | 538.7 mm | 574.3 mm | 600.9 mm | 630.2 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 460 mm | 485 mm | 505 mm | 530 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 130 mm | 150 mm | 175 mm | 210 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1057 mm | 1084 mm | 1114 mm | 1147 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm |
| Standover Height | 670 mm | 679 mm | 700 | 726 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 166 cm | 176 cm | 187 cm |
| Rider Max Height | 169 cm | 179 cm | 189 cm | 193 cm |
Model Overview
Gestalt XR is part of the Marin Gestalt model. 42 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Marin Gestalt 2023 is the most affordable bike of this model and has a price of 999$. On the other hand, Marin Gestalt XR 2023, is the most expensive and costs 2399$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 2399$. Comparing this to the average Gravel bike price, we see that the price is 2.63% lower.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
Gestalt XR has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The Gestalt XR 2023 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Gestalt XR has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 160 cm – 193 cm (5.25 ft – 6.33 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Marin Gestalt XR includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
