Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 120mm -
Travel Rear 120mm -
Fork X Fusion
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 6061 Aluminum Frame, 24" wheel with clearance for 26", 120mm Travel, MultiTrac Suspension Platform, 135mm Open Dropout (Upgradeable to 142x12mm Thru-Axle)
Suspension Fork
X-Fusion Velvet RL 26", 120mm Travel, Compression and Rebound Adjustment, 100x15mm Thru-Axle
Drivetrain
Rear Derailleur
Shimano Deore Shadow Plus Direct Mount 10-Speed
Front Derailleur
- - -
Shift Levers
Shimano Deore 1x10-Speed
Cassette
SunRace 10-Speed, 11-42T
Crank
Marin Forged Alloy 1x10, Hollow Spindle, Steel Narrow-Wide 30T Chainring, 76mm BCD
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC X10
Pedals
Kids Specific Nylon Pedal
Wheels
Front Hub
Formula, 100x15mm, Centerlock Disc, 32H
Rear Hub
Joytech, 135mm, Quad Sealed Bearings, Centerlock Disc, 32H
Rims
Marin, Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific, Tubless Compatible
Spokes
14g Stainless Steel
Tires
Vee Tire, 24x2.25", Wire Bead
Brakes
Brakes
Shimano BR-M315 Hydraulic Disc, 180mm Rotor
Brake Levers
Shimano BL-M315 Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy, 45mm
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 15mm Rise, 720mm Width, 4º Up, 9º Back
Grips
Marin Dual Density
Headset
FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin Speed Concept
Seatpost
Marin, Two Bolt Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13" |
|---|---|
| Stack Reach Ratio | 1.41 mm |
| Bottom Bracket Height | 305 mm |
| Front Center | 590 mm |
| Rake | 42 mm |
| Stack | 539.24 mm |
| Reach | 383 mm |
| Top Tube Length | 539 mm |
| Seat Tube Angle | 73.5 ° |
| Seat Tube Length | 335 mm |
| Head Tube Angle | 67.5 ° |
| Head Tube Length | 105 mm |
| Chainstay Length | 431 mm |
| Wheelbase | 1021 mm |
| Bottom Bracket Drop | 10 mm |
| Standover Height | 624 mm |
| Wheels | 24" |
Model Overview

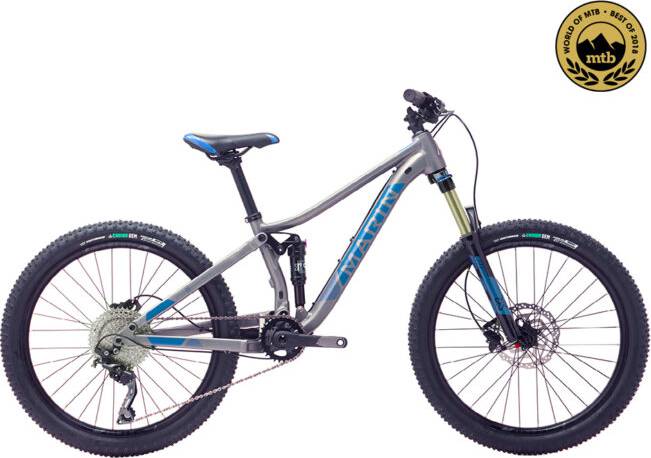

Hawk Hill JR is part of the Marin Hawk model. 13 bikes variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Marin Hawk Hill JR 2019 is the cheapest bike model and costs 1599$. Marin Hawk Hill 3 2019 is the most expensive one and costs 2649$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Youth bikes
If you want to purchase a solid Youth bike, it is important to know that the average cost is 278$. However, you could also get a good Youth bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2019 and its price was 1599$. In conclusion, this bike price is 475.18% higher than the price of the average Youth bike.
Overview of components
Fork
The Hawk Hill JR comes factory-installed with the X Fusion fork. This has a travel range of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the Hawk Hill JR bike is equipped with the 24″ aluminum model. The 24″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
