Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tourney, Shimano -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series One 6061 Aluminum, 700c Wheel
Suspension Fork
Curved Blade Steel Rigid, 700c, 1 1/8”
Drivetrain
Rear Derailleur
Shimano TX
Front Derailleur
Shimano TX
Shift Levers
Shimano 7 Speed Revo Twist Shifters
Cassette
Shimano HG20, 12-32, 7-Speed
Crank
SR Suntour XCC, 48/38/28
Bottom Bracket
Sealed Cartridge
Chain
KMC Z50
Pedals
Composite Sport Flat Pedal
Wheels
Front Hub
Formula, 32 Hole
Rear Hub
Formula Cassette, 32 Hole
Rims
Alex DC26, Double Wall with CNC Side Walls
Tires
Kenda Kahn 700 x 38c with Puncture Protection
Brakes
Brakes
Forged Alloy Linear Pull with Power Modulator
Brake Levers
Aluminum Linear-Pull Brake Lever
Cockpit
Stem
Aluminum Alloy Quill Stem
Handlebar
Double Butted 6061 Alloy, 25.4mm Clamp Diameter, 30mm Rise
Grips
Dual Density
Headset
Threaded Headset
Seat
Saddle
Marin City Sport Plush
Seatpost
Marin Alloy Micro Adjust, 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Front Center | 624 mm | 639 mm | 654 mm | 663 mm | 678 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 588 mm | 603 mm | 618 mm | 633 mm | 648 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 381 mm | 431.8 mm | 482.6 mm | 520.7 mm | 558.8 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 140 mm | 170 mm | 185 mm | 200 mm | 220 mm |
| Chainstay Length | 458 mm | 458 mm | 458 mm | 458 mm | 458 mm |
| Wheelbase | 1073 mm | 1089 mm | 1104 mm | 1113 mm | 1128 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

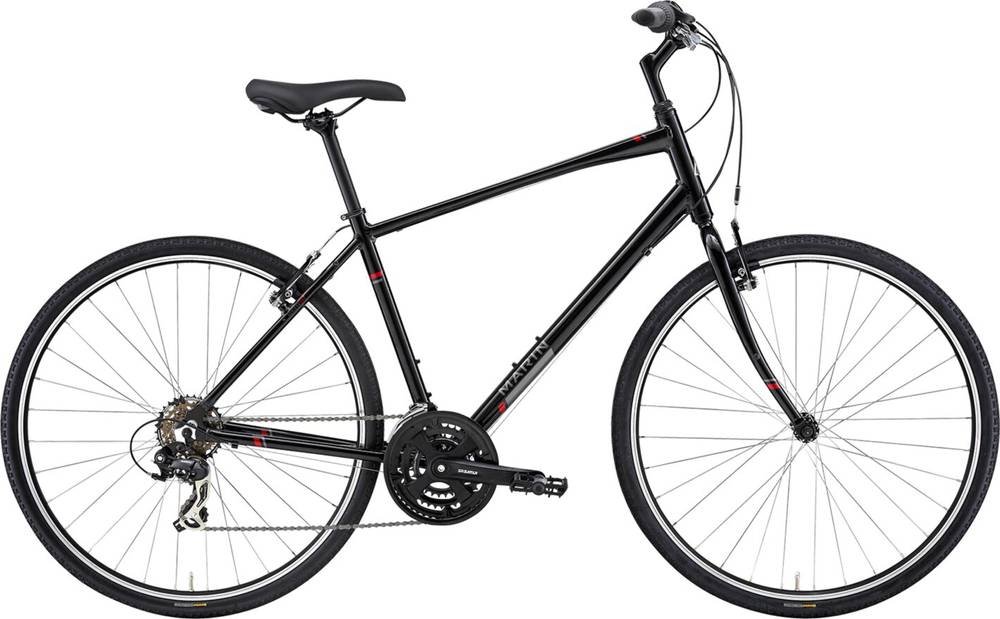

Model Overview
Larkspur CS1 completes the Marin Larkspur model. There are 25 bikes that carry this model name. Check out the entire range from 2015 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Fitness bikes
If you want to purchase a solid Fitness bike, it is important to know that the average cost is 656$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
The fork is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels size
The wheels on Larkspur CS1 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Larkspur CS1 comes with Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
Sizes
Marin Larkspur CS1 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
