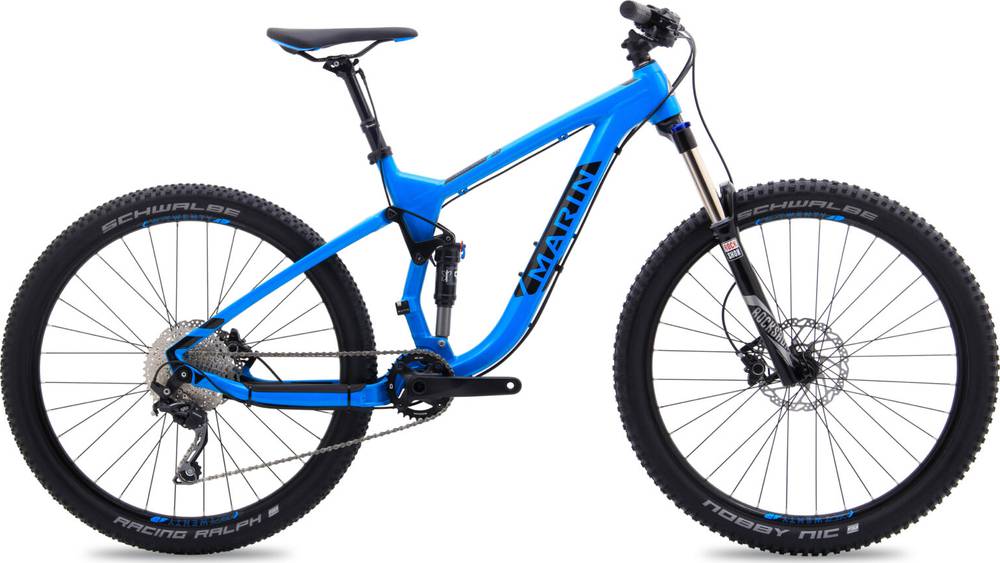

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Sektor
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 4 6061 Aluminum Frame, 27.5” Wheels, 140mm Travel IsoTrac Suspension Platform, Chainstay Mounted Post Mount Disc Brake, 142x12mm Thru-Axle
Suspension Fork
RockShox Sektor Silver RL 27.5”, 140mm Travel, Compression and Rebound Adjustment, Solo Air
Drivetrain
Rear Derailleur
Shimano Deore Shadow Plus SGS
Front Derailleur
Marin Bear Claw Bottle Opener
Shift Levers
Shimano Deore 1x10-Speed
Cassette
Sunrace 10-Speed, 11-42T
Crank
Marin Forged Alloy 1x10, Hollow Spindle, Steel Narrow-Wide 32T Chainring, 76mm BCD
Bottom Bracket
External Sealed Cartridge Bearings
Chain
KMC X10
Pedals
-
Wheels
Front Hub
Formula, 100x15mm, Centerlock Disc, 32H
Rear Hub
Formula, 142x12mm, Quad Sealed Bearings, Centerlock Disc, 32H
Rims
Marin Aluminum Double Wall, 27mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Tires
F: Schwalbe Nobby Nic Performance 27.5
Brakes
Brakes
Shimano BR-M315 Hydraulic Disc, 180mm Rotor
Brake Levers
Shimano BL-M315 Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 15mm rise, 780mm width, 4º up, 9º back
Grips
Marin Dual Density
Headset
SA Orbit, Sealed Cartridge Bearings, 1 1/8
Seat
Saddle
Marin Speed Concept
Seatpost
Trans-X Dropper Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.33 mm | 1.31 mm |
| Bottom Bracket Height | 329.6 mm | 329.6 mm | 329.7 mm | 329.8 mm |
| Front Center | 711 mm | 735 mm | 759 mm | 787 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 100 mm | 100 mm | 100 mm | 100 mm |
| Stack | 599.6 mm | 608.8 mm | 617.8 mm | 636.4 mm |
| Reach | 424.5 mm | 444.5 mm | 464.5 mm | 484.5 mm |
| Top Tube Length | 586.1 mm | 614.9 mm | 641 mm | 671.3 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 406.5 mm | 445.7 mm | 479.7 mm | 518.8 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1151 mm | 1175 mm | 1199 mm | 1227 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm | 23 mm |
| Standover Height | 714 mm | 732 mm | 756 mm | 774 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Mount Vision 5 completes the Marin Mount model. Marin released 23 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The RockShox Sektor is included from the factory. It has a travel distance of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the Mount Vision 5 bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Marin Mount Vision 5 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
