Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Revelation RC
-
Groupset X1 -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Frame w/ Alloy Swingarm, 27.5” Wheels, 140mm Travel IsoTrac Suspension Platform
Suspension Fork
RockShox Revelation RL 27.5”, Solo Air, Tapered Alloy Steerer, 15mm Thru-Axle, 140mm Travel
Drivetrain
Rear Derailleur
SRAM X1
Shift Levers
SRAM X1 1x11-Speed
Cassette
Sunrace 11-Speed, 11-42T
Crank
Forged Alloy 1x11, Hollow CrMo Spindle, Narrow-Wide 32T
Bottom Bracket
External Sealed Cartridge Bearing
Chain
KMC X11L
Wheels
Front Hub
Formula, 100x15mm, Sealed Cartridge Bearing, 6-Bolt Disc, 32H
Rear Hub
Formula, 142x12mm, Alloy Axle, Quad Cartridge Sealed Bearing, Centerlock Disc, 32H
Rims
Maddux HD490, Double Wall, Disc Specific, 25mm Inner, Tubeless Readyc
Tires
Front: Maxxis Minion DHF, 27.5x2.3”, Rear: Maxxis Ardent, 27.5x2.3”
Brakes
Brakes
Magura MT4 Hydraulic Disc, 180mm Storm Rotor
Brake Levers
Magura MT4 Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Riser, 780mm Width
Grips
Marin Locking
Headset
FSA Orbit, Sealed Cartridge Bearing, 1 1/8
Seat
Saddle
WTB Volt Comp SL
Seatpost
KS Dropzone Dropper Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.4 mm | 1.38 mm | 1.39 mm |
| Bottom Bracket Height | 329.6 mm | 329.6 mm | 329.7 mm | 329.8 mm |
| Front Center | 691 mm | 707 mm | 724 mm | 741 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 98 mm | 98 mm | 96 mm | 99 mm |
| Stack | 594 mm | 603.1 mm | 612.2 mm | 630.6 mm |
| Reach | 419.5 mm | 431.9 mm | 444.2 mm | 454.1 mm |
| Top Tube Length | 588 mm | 602.9 mm | 617.9 mm | 633 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 406.5 mm | 445.7 mm | 479.7 mm | 518.8 mm |
| Head Tube Angle | 67.8 ° | 67.8 ° | 67.8 ° | 67.7 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1131 mm | 1147 mm | 1164 mm | 1181 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm | 23 mm |
| Standover Height | 714 mm | 732 mm | 756 mm | 774 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

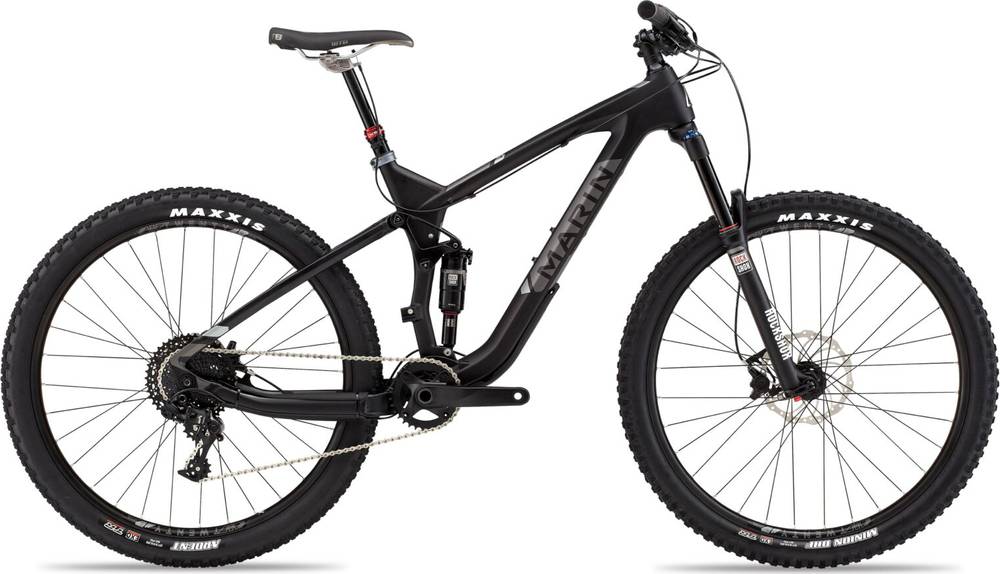

Mount Vision 7 is a Marin Mount model. 23 bikes variations carry this model name so far. You can easily view all of the Marin Mount bikes models from 2016, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
This bike has the RockShox Revelation RC fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on Mount Vision 7 are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Marin Mount Vision 7 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Marin Mount Vision 7 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Marin Mount Vision 7 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
