Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Yari RC
-
Groupset SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Frame w/ Alloy Swingarm, 27.5” Wheels, 140mm Travel IsoTrac Suspension Platform, Chainstay Mounted Post Mount Disc Brake, 142x12mm Thru-Axle
Suspension Fork
RockShox Yari RC 27.5”, 140mm Travel, Compression and Rebound Adjustment, Solo Air Spring, Alloy Tapered Steerer, 100x15mm Maxle Ultimate, 42mm Offset
Drivetrain
Rear Derailleur
Shimano RD-M7000, SLX GS, Direct Attachment
Front Derailleur
Marin Bear Claw Bottle Opener
Shift Levers
Shimano SL-7000R 11-Speed
Cassette
Sunrace 11-Speed, 11-42T
Crank
Marin Forged Alloy 1x11, Hollow CrMo Spindle, Direct Mount Narrow-Wide 32T Chainring
Bottom Bracket
External Sealed Cartridge Bearings
Chain
KMC X11L
Pedals
-
Wheels
Front Hub
Formula, 100x15mm, Sealed Cartridge Bearings, Centerlock Disc, 32H
Rear Hub
Formula, 142x12mm, Alloy Axle, Quad Cartridge Sealed Bearings, Centerlock Disc, 32H
Rims
Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Tires
F: Schwalbe Nobby Nic Performance 27.5
Brakes
Brakes
Magura MT4 Hydraulic Disc, 180mm Storm Rotor
Brake Levers
Magura MT4 Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 15mm rise, 780mm width, 4º up, 9º back
Grips
Marin Single Clamp Locking
Headset
FSA Orbit, Sealed Cartridge Bearings, 1 1/8
Seat
Saddle
WTB Volt Comp SL
Seatpost
KS Dropzone Dropper Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.4 mm | 1.38 mm | 1.39 mm |
| Bottom Bracket Height | 329.6 mm | 329.6 mm | 329.7 mm | 329.8 mm |
| Front Center | 691 mm | 707 mm | 724 mm | 741 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 98 mm | 98 mm | 96 mm | 99 mm |
| Stack | 594 mm | 603.1 mm | 612.2 mm | 630.6 mm |
| Reach | 419.5 mm | 431.9 mm | 444.2 mm | 454.1 mm |
| Top Tube Length | 588 mm | 602.9 mm | 617.9 mm | 633 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 406.5 mm | 445.7 mm | 479.7 mm | 518.8 mm |
| Head Tube Angle | 67.8 ° | 67.8 ° | 67.8 ° | 67.7 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1131 mm | 1147 mm | 1164 mm | 1181 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm | 23 mm |
| Standover Height | 714 mm | 732 mm | 756 mm | 774 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

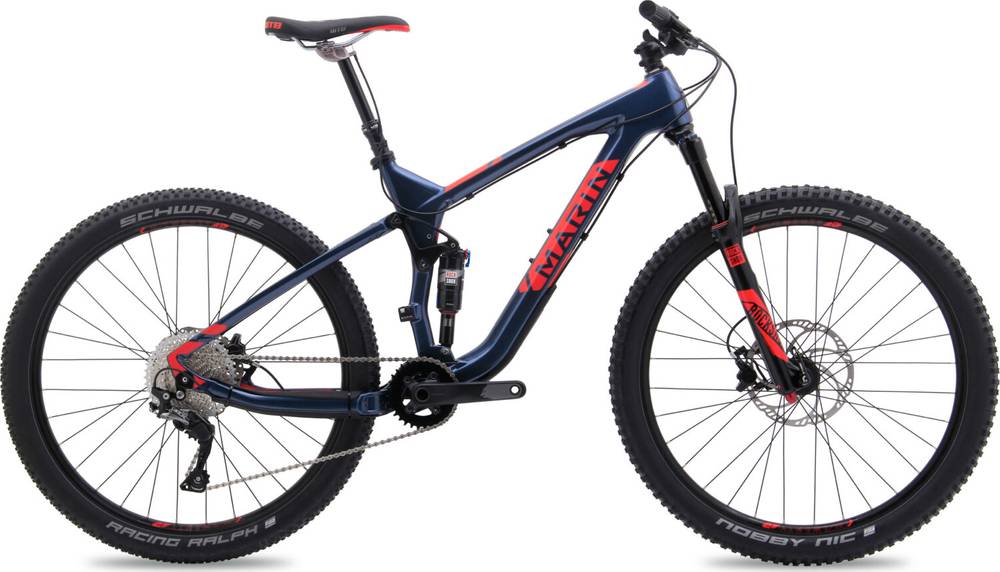

Mount Vision 7 is part of the Marin Mount model. Marin released 23 bikes variations of this model so far. Take a sneak peek at all Marin Mount bikes models from 2017, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Mount Vision 7 components
Fork
The Mount Vision 7 comes factory-installed with the RockShox Yari RC fork. This has a travel range of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
Mount Vision 7 has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
As for the wheels, Marin Mount Vision 7 2017, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Mount Vision 7 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Mount Vision 7 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Marin Mount Vision 7 includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
