Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Groupset XTR -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Frame and Swingarm, 27.5” Wheels, 140mm Travel IsoTrac Suspension Platform
Suspension Fork
BOS Deville AM 27.5”, 3-Way Adjust Damper, 140mm Travel
Drivetrain
Rear Derailleur
Shimano XTR Shadow Plus
Shift Levers
Shimano XTR 1x11-Speed
Cassette
Shimano XTR 11-Speed, 11-40T
Crank
Shimano XTR Hollowtech II, 32T
Bottom Bracket
Shimano Hollowtech II
Chain
Shimano HG700
Wheels
Front Hub
Shimano XTR, 100x15mm, Centerlock Disc, 32H
Rear Hub
Shimano XTR, 142x12mm, Centerlock Disc, 32H
Rims
WTB Ci24 Carbon, 24mm Inner, Tubeless Ready
Tires
Front: WTB Trail Boss, 27.5x2.4” Rear: WTB Riddler, 27.5x2.4”, Folding, Tubeless Ready
Brakes
Brakes
Shimano XTR Trail Hydraulic Disc, 180mm Centerlock Rotor
Brake Levers
Shimano XTR Trail Hydraulic
Cockpit
Stem
RaceFace Turbine 3D Forged Alloy
Handlebar
RaceFace SixC Carbon, 20mm Rise, 785mm Width
Grips
Marin Locking
Headset
FSA Orbit, Sealed Cartridge Bearing, 1 1/8
Seat
Saddle
WTB Volt Team, Carbon Rails
Seatpost
RockShox Reverb Dropper Post, Internal Routing
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.4 mm | 1.38 mm | 1.39 mm |
| Bottom Bracket Height | 329.6 mm | 329.6 mm | 329.7 mm | 329.8 mm |
| Front Center | 691 mm | 707 mm | 724 mm | 741 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 98 mm | 98 mm | 96 mm | 99 mm |
| Stack | 594 mm | 603.1 mm | 612.2 mm | 630.6 mm |
| Reach | 419.5 mm | 431.9 mm | 444.2 mm | 454.1 mm |
| Top Tube Length | 588 mm | 602.9 mm | 617.9 mm | 633 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 406.5 mm | 445.7 mm | 479.7 mm | 518.8 mm |
| Head Tube Angle | 67.8 ° | 67.8 ° | 67.8 ° | 67.7 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1131 mm | 1147 mm | 1164 mm | 1181 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm | 23 mm |
| Standover Height | 714 mm | 732 mm | 756 mm | 774 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

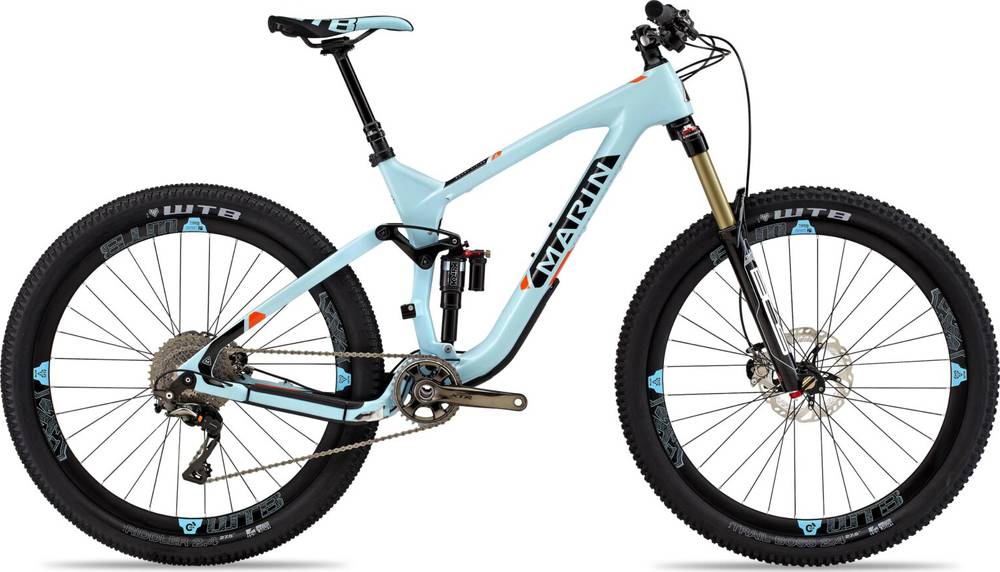

About this model
Mount Vision Pro is part of the Marin Mount model. Marin released 23 bikes variations of this model so far. Check out the entire range from 2016 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Mount Vision Pro components
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on Mount Vision Pro are the 27.5″ carbon type. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mount Vision Pro has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Marin Mount Vision Pro bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Marin Mount Vision Pro includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
