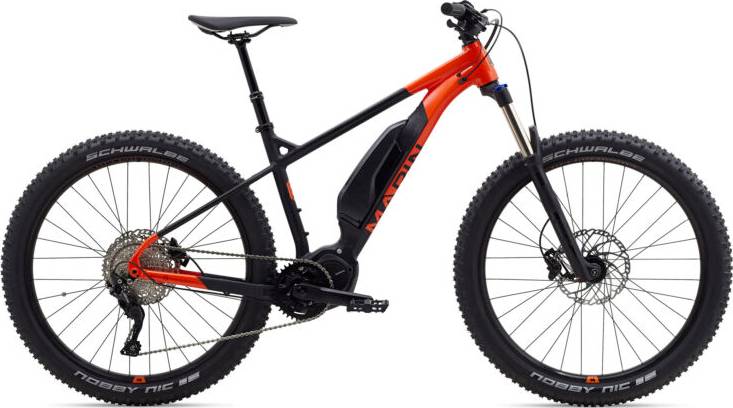

Marin Nail Trail E1 2020
2020 E-bike
Estimate price |
2,699$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano E8010, 500Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
169cm - 179cm
LG
176cm - 184cm
XL
181cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 E 6061 Aluminim, 27.5+ wheels, Post mount, forged drop outs, 148x12 thru axle
Suspension Fork
RockShox Recon RL 27.5+, 140mm Travel, Compression and Rebound Adjustment, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset
Drivetrain
Rear Derailleur
Shimano Deore Shadow Plus Direct Mount 10-Speed
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
SunRace 10-Speed, 11-46T
Crank
Marin Forged Alloy, Steel Narrow-Wide 38T Chainring
Chain
KMC X10
Pedals
Nylon Platform
Wheels
Front Hub
Forged Alloy, 110x15mm, 6-Bolt Disc, 32H
Rear Hub
Forged Alloy, 148x12mm, Quad Sealed Bearings, 6-Bolt Disc, 32H
Rims
Marin Aluminum Double Wall, 38mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Spokes
14g Black Stainless Steel
Tires
Vee Tire, Crown Gem 27.5x2.8", Dual Control Compound, Synthesis Sidewall, Folding Bead, Tubeless Compatible
Brakes
Brakes
Shimano BR-MT201 Hydraulic Disc, 203mm Rotor
Brake Levers
Shimano BR-MT201 Hydraulic Disc
Cockpit
Stem
Marin 3D Forged Alloy, 35mm
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm rise, 5º Up, 9º Back
Grips
Marin Single Clamp Locking
Headset
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin Speed Concept
Seatpost
TranzX YSP18 Dropper Post, 120mm of Travel, 30.9mm
Motor & Battery
Motor
Shimano STEPS E8000
Battery
Shimano E8010, 500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.47 mm | 1.42 mm | 1.38 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 722 mm | 740 mm | 756 mm | 778 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 116 mm | 117 mm | 121 mm | 117 mm |
| Stack | 633.08 mm | 637.7 mm | 642.32 mm | 646.94 mm |
| Reach | 417.83 mm | 433.59 mm | 452.36 mm | 468.12 mm |
| Top Tube Length | 582.27 mm | 601.83 mm | 624.1 mm | 642.63 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 381 mm | 431 mm | 482 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 105 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1149 mm | 1167 mm | 1183 mm | 1205 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 669 mm | 682 mm | 719 mm | 750 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 162 cm | 169 cm | 176 cm | 181 cm |
| Rider Max Height | 172 cm | 179 cm | 184 cm | 188 cm |
Model Overview
Nail Trail E1 completes the Marin E Nail model. There are 6 e-bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Marin Nail Trail E1 2020 is the cheapest e-bike model and costs 2699$. Marin Nail Trail E2 2020 is the most expensive one and costs 3499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Marin Nail Trail E1 price was 2699$. Doing a quick comparison, we notice that Nail Trail E1 price is 24.68% smaller than the average cost of a Trail e-bike.
Overview of components
Fork
This e-bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the Nail Trail E1 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Marin Nail Trail E1 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 162 cm – 188 cm (5.31 ft – 6.17 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Marin Nail Trail E1 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
