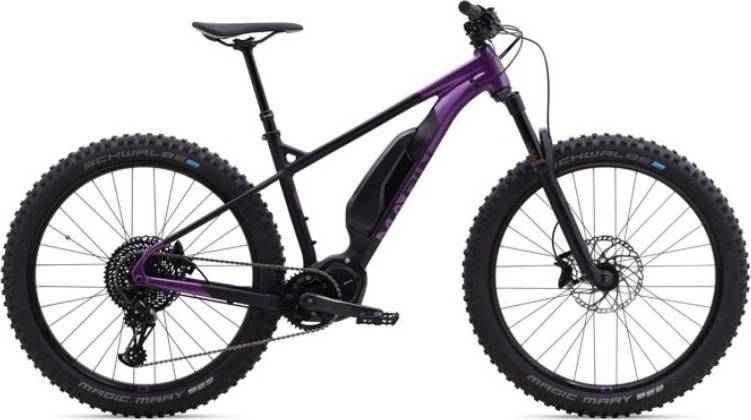

Marin Nail Trail E2 2019
2019 E-bike
Estimate price |
4,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Revelation RC
-
Groupset EX1, Shimano -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano E8010, 500Wh -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
169cm - 179cm
LG
176cm - 184cm
XL
181cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 E 6061 Aluminum, 27.5+ wheels, Post Mount Disc Specific Forged Dropouts, 148x12mm Thru-axle
Suspension Fork
RockShox Revelation RC 27.5+, 140mm Travel, Compression and Rebound Adjustment, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM EX1, 8-speed
Front Derailleur
N/A
Shift Levers
SRAM EX1, 8 speed
Cassette
SRAM EX1, 11-48T
Crank
Shimano FC-E8050, Hollowtech II, 38T, Boost Spacing
Chain
SRAM PCEX1
Chain Guide
N/A
Pedals
Nylon Platform
Wheels
Front Hub
Forged Alloy, 110x15mm, Centerlock Disc, 32H
Rear Hub
Forged Alloy, 148x12mm, Quad Sealed Bearings, Centerlock Disc, 32H
Rims
Marin Aluminum Double Wall, 38mm Inner,Pinned Joint, Disc Specific, Tubeless Compatible
Spokes
14g Black Stainless Steel
Tires
Vee Tire, Crown Gem 27.5x2.8", Dual Control Compound, Synthesis Sidewall, Folding Bead, Tubeless Compatible
Brakes
Brakes
Shimano MT-520 4-Piston Hydraulic Disc, 203mm Rotor
Brake Levers
Shimano MT-501 Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy, 35mm
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4º Up, 9º Back
Grips
Marin Single Clamp Locking
Headset
FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin Speed Concept
Seatpost
X-Fusion Manic, 1x Plastic Remote, Size S 120mm Travel, All Other Sizes: 150mm Travel
Motor & Battery
Motor
Shimano STEPS E8000
Battery
Shimano E8010, 500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm |
| Top Tube Length | 507 mm | 605 mm | 625 mm | 642 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 381 mm | 431 mm | 482 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 105 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 162 cm | 169 cm | 176 cm | 181 cm |
| Rider Max Height | 172 cm | 179 cm | 184 cm | 188 cm |
Model Overview
Nail Trail E2 is part of the Marin E Nail model. Marin released 6 e-bikes variations of this model so far. You can easily view all of the Marin E Nail e-bikes models from 2019, here.
Model range prices
Marin Nail Trail E1 2019 is the most economical model, with a starting price of 3499$. Marin Nail Trail E2 2019 on the other hand costs 4999$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Marin Nail Trail E2 price was 4999$. In conclusion, this e-bike price is 48.56% more expensive than the price of the average Trail e-bike.
Overview of components
Fork
Marin Nail Trail E2 2019 e-bike is equipped with the RockShox Revelation RC fork, and has 140mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The Nail Trail E2 2019 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Marin Nail Trail E2 e-bike has 4 sizes, in the range of 162 cm – 188 cm (5.31 ft – 6.17 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Marin model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
