Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Claris, FSA -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Double Butted CrMo Beyond Road, 700C Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount
Suspension Fork
CrMo, Fender and Rack Eyelets, IS Disc Mount
Drivetrain
Rear Derailleur
Shimano Claris 8-Speed
Front Derailleur
Shimano Claris
Shift Levers
Shimano Claris 2x8-Speed
Cassette
SunRace 8-Speed, 11-32T
Crank
FSA Tempo Compact, 50/34T
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC Z8
Pedals
Commute Platform
Wheels
Front Hub
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rear Hub
Forged Aluminum Alloy, 6-Bolt Disc, 32H
Rims
Marin Aluminum Double Wall, 19mm Inner, Disc Specific
Spokes
14g Black Stainless Steel
Tires
Schwalbe Spicer, 700Cx30
Brakes
Brakes
Promax Render R Road Mechanical Disc, 160mm Rotor
Brake Levers
Shimano w/ Integrated Shifters
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Butted Alloy, Compact 12º Flared Drop
Grips
Marin Comfort Tape
Headset
FSA No.8D, Sealed Cartridge Bearings
Seat
Saddle
Marin Beyond Road Concept
Seatpost
Marin Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 47cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.54 mm | 1.52 mm | 1.53 mm | 1.53 mm | 1.53 mm | 1.53 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 269 mm | 269 mm | 269 mm | 269 mm |
| Front Center | 591 mm | 585 mm | 590 mm | 599 mm | 620 mm | 583 mm | 629 mm |
| Rake | 57 mm | 57 mm | 45 mm | 45 mm | 45 mm | 57 mm | 45 mm |
| Trail | 59 mm | 70 mm | 65 mm | 59 mm | 59 mm | 62 mm | 59 mm |
| Stack | 543.26 mm | 557.4 mm | 576.52 mm | 592.64 mm | 611.72 mm | 536.57 mm | 621.25 mm |
| Reach | 361.8 mm | 362.48 mm | 380.42 mm | 386.42 mm | 400.59 mm | 351.75 mm | 406.75 mm |
| Top Tube Length | 517 mm | 527 mm | 547 mm | 567 mm | 587 mm | 600 mm | 602 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 74.5 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm | 530 mm | 550 mm | 440 mm | 570 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 72 ° | 72.5 ° | 72.5 ° | 70 ° | 72.5 ° |
| Head Tube Length | 130 mm | 145 mm | 155 mm | 170 mm | 190 mm | 125 mm | 200 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1002 mm | 995 mm | 1001 mm | 1010 mm | 1031 mm | 994 mm | 1040 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 723 mm | 743 mm | 760 mm | 779 mm | 798 mm | 699 mm | 814 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

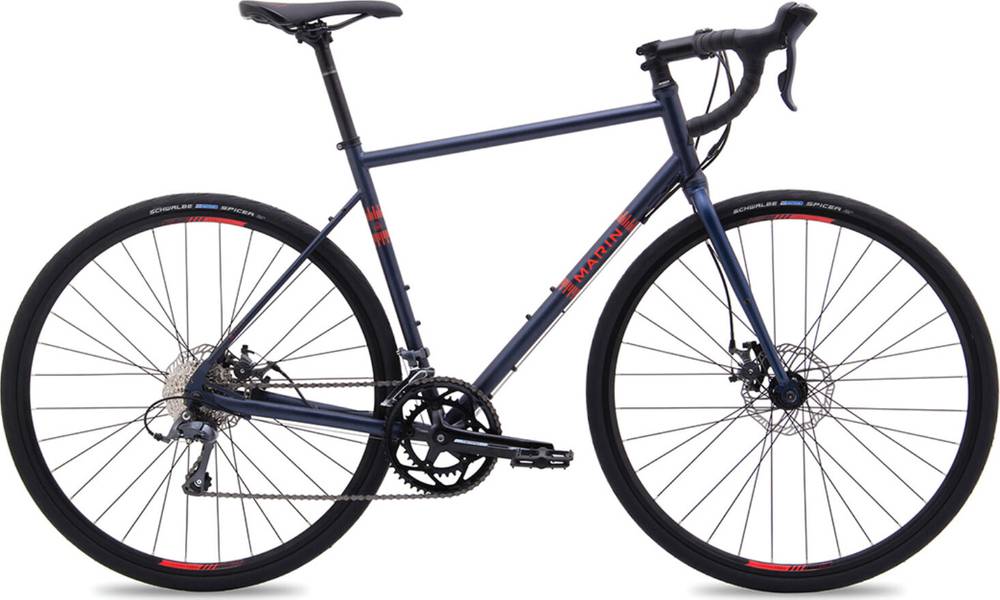

Nicasio completes the Marin Nicasio model. Marin launched 25 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Nicasio components
Fork material
The fork is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
The Nicasio 2018 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
