Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 650b -
Groupset Rival 1, FSA -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 CrMo, Beyond Road Geometry, Thru-Axle, Disc Brake, Integrated Headset, Fender and Rack Mounts
Suspension Fork
Marin Full Carbon w/ Taper Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Drivetrain
Rear Derailleur
SRAM Rival 1
Front Derailleur
-
Shift Levers
SRAM Rival 1x11 Speed, Left Side Modified For Dropper Post Lever
Cassette
e*thirteen TRS 11-Speed, 9-44T
Crank
FSA Gossamer Pro, 1x11 Megatooth, 42T Chainring, BB392EVO Alloy Spindle
Bottom Bracket
FSA BB-EVO7000, BSA Threaded
Chain
KMC X11
Pedals
Commute Platform
Wheels
Front Hub
Forged Aluminum Alloy, 100x15mm, 6-Bolt Disc, 32H
Rear Hub
Forged Aluminum Alloy, 142x12mm, Alloy Axle, Quad Cartridge Sealed Bearings, SRAM XD Driver, 6-Bolt Disc, 32H
Rims
WTB KOM i25, 25mm Inner, Tubeless Compatible
Spokes
14g Black Stainless Steel
Tires
WTB Byway, 650Bx47, Folding Bead, Tubeless Compatible
Brakes
Brakes
SRAM Rival Hydraulic
Brake Levers
SRAM Rival Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Butted Alloy, Compact 12º Flared Drop
Grips
Marin Shock Absorbing Perforated Tape
Headset
FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Seat
Saddle
Marin Beyond Road Concept
Seatpost
TranzX YSP11 Dropper Post, 105mm Travel, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.55 mm | 1.53 mm | 1.54 mm | 1.53 mm | 1.53 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 269 mm | 269 mm | 269 mm |
| Front Center | 589 mm | 595 mm | 605 mm | 615 mm | 635 mm | 645 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 64 mm | 61 mm | 58 mm | 58 mm | 58 mm |
| Stack | 552 mm | 566 mm | 577 mm | 593.5 mm | 612.4 mm | 622 mm |
| Reach | 364.5 mm | 365 mm | 377 mm | 386.2 mm | 400.4 mm | 406.5 mm |
| Top Tube Length | 517 mm | 527 mm | 547 mm | 567 mm | 587 mm | 602 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 130 mm | 145 mm | 155 mm | 170 mm | 190 mm | 200 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1000 mm | 1006 mm | 1016 mm | 1026 mm | 1047 mm | 1056 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 723 mm | 743 mm | 760 mm | 779 mm | 798 mm | 814 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 |
About this model

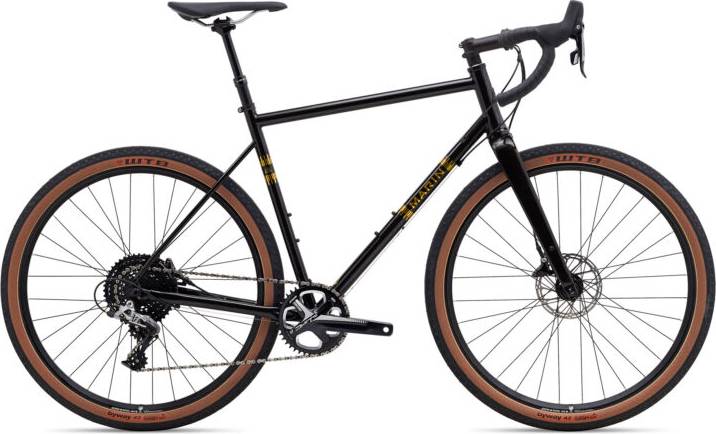

Nicasio Ridge completes the Marin Nicasio model. There are 25 bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Marin Nicasio 1 2020 is the most economical model, with a starting price of 759$. Marin Nicasio Ridge 2020 on the other hand costs 2699$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2699$. Comparing this to the average Gravel bike price, we see that the price is 9.63% more expensive.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on Nicasio Ridge are the aluminum type. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Marin Nicasio Ridge has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Dropper post
The Marin model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
