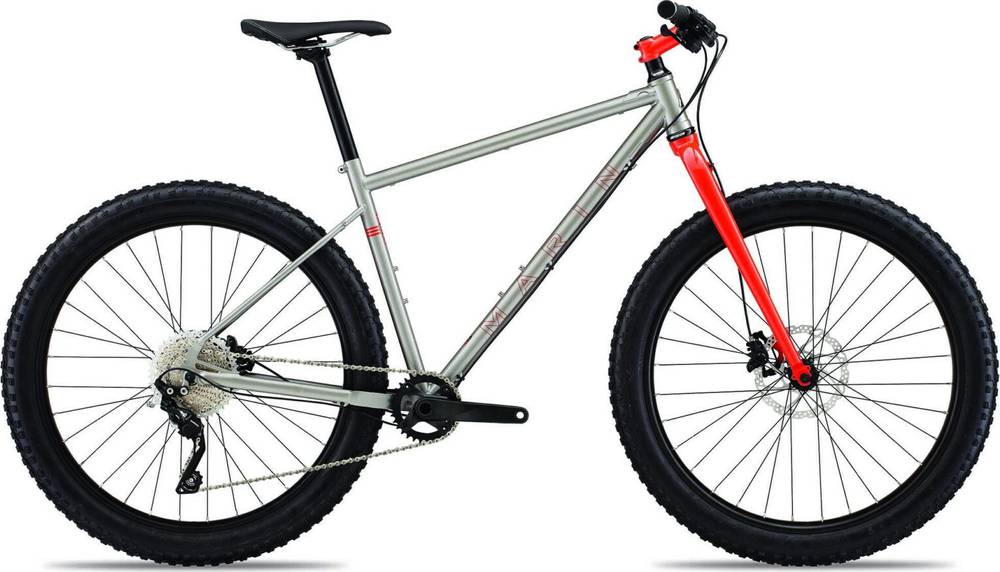

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Wheels 27.5" -
Groupset X7, X5 -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Double Butted CrMo, w/rack, fender and frame bag mounts, tapered headtube
Suspension Fork
CrMo, with lowrider rack and fender mount, suspension-corrected w/tapered steerer tube
Drivetrain
Rear Derailleur
SRAM X7 Type-2
Shift Levers
SRAM X5 10-speed
Cassette
Sunrace 10-Speed, 11-42T
Crank
Forged Alloy 1x10, Hollow Spindle, Narrow-Wide 32T
Bottom Bracket
External Sealed Cartridge Bearing
Chain
KMC X10
Pedals
Aluminum Platform
Wheels
Front Hub
Formula, 100mm, Centerlock Disc, 32H
Rear Hub
Formula, 135mm, Quad Cartridge Sealed Bearings, Centerlock Disc, 32h
Rims
Maddux DD40 27.5+, Double Wall, 40mm Inner, Tubeless Ready
Tires
Kenda Havok, 27.5x2.8
Brakes
Brakes
Shimano BR-M445 Hydraulic Disc, 180mm Centerlock Rotor
Brake Levers
Shimano BR-M445 Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy
Handlebar
Marin Mini-Riser, 10mm Rise 740mm Width
Grips
Marin Locking
Headset
FSA Orbit, Sealed Cartridge Bearing, 1 1/8
Seat
Saddle
Marin MTB
Seatpost
Marin Alloy Light
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.44 mm | 1.38 mm | 1.39 mm | 1.42 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 654 mm | 687 mm | 710 mm | 723 mm | 745 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 87 mm | 82 mm | 83 mm | 82 mm | 82 mm |
| Stack | 602 mm | 602 mm | 607 mm | 621 mm | 649 mm |
| Reach | 389 mm | 417 mm | 439 mm | 446 mm | 457 mm |
| Top Tube Length | 568 mm | 596 mm | 619 mm | 642 mm | 662 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 381 mm | 431 mm | 482 mm | 520 mm | 559 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 100 mm | 105 mm | 120 mm | 150 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1083 mm | 1116 mm | 1139 mm | 1152 mm | 1174 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 702 mm | 742 mm | 775 mm | 813 mm | 854 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
About this model
Pine Mountain 1 is part of the Marin Pine model. 21 bikes variations carry this model name so far. You can easily view all of the Marin Pine bikes models from 2016, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Pine Mountain 1 components
Fork material
When it comes to the fork, this bike has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
As for the wheels, Marin Pine Mountain 1 2016, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Marin Pine Mountain 1 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
