Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 169cm
MD
166cm - 177cm
LG
174cm - 184cm
XL
181cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 Double Butted CrMo, 29" Wheels, Boost 141x9mm Open Dropout, 73mm Threaded BB, Plentiful Gear Mounts (custom bag templates here)
Suspension Fork
RockShox Recon RL, 120mm Travel, Compression and Rebound Adjustment, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset
Drivetrain
Rear Derailleur
Shimano Deore, RDM5100, 11-Speed
Front Derailleur
-
Shift Levers
Shimano Deore, SLM5100, 11-Speed
Cassette
Shimano Deore, CSM5100, 11-Speed, 11-51T
Crank
Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring
Bottom Bracket
External Sealed Cartridge Bearings
Chain
KMC X11
Pedals
Nylon Platform
Wheels
Front Hub
Forged Alloy, 110x15mm, Disc, 32H
Rear Hub
Forged Alloy, 141x9mm, Disc, 32H
Rims
Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible
Tires
Vee Tire Co. Flow Snap, 29x2.6", Wire Bead
Brakes
Brakes
Hydraulic Disc
Brake Levers
Tektro Hydraulic
Cockpit
Stem
Marin 3D Forged Alloy, 35mm
Handlebar
Marin Bedroll Bar, 50mm Rise, 780 Width, 10? Backsweep, 6? Upsweep
Grips
Marin Bear Paw Locking
Headset
FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seat
Saddle
Marin Pine Mountain Trail
Seatpost
Marin Alloy, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.41 mm | 1.34 mm | 1.27 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Center | 722 mm | 754 mm | 781 mm | 812 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 121 mm | 121 mm | 121 mm | 121 mm |
| Stack | 627 mm | 631.4 mm | 636 mm | 640.6 mm |
| Reach | 418 mm | 448 mm | 473 mm | 503 mm |
| Top Tube Length | 586.5 mm | 618 mm | 644 mm | 675 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 381 mm | 431 mm | 482 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 110 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1143 mm | 1175 mm | 1202 mm | 1234 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 695 mm | 740 mm | 784 mm | 816 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 166 cm | 174 cm | 181 cm |
| Rider Max Height | 169 cm | 177 cm | 184 cm | 190 cm |
Model Overview

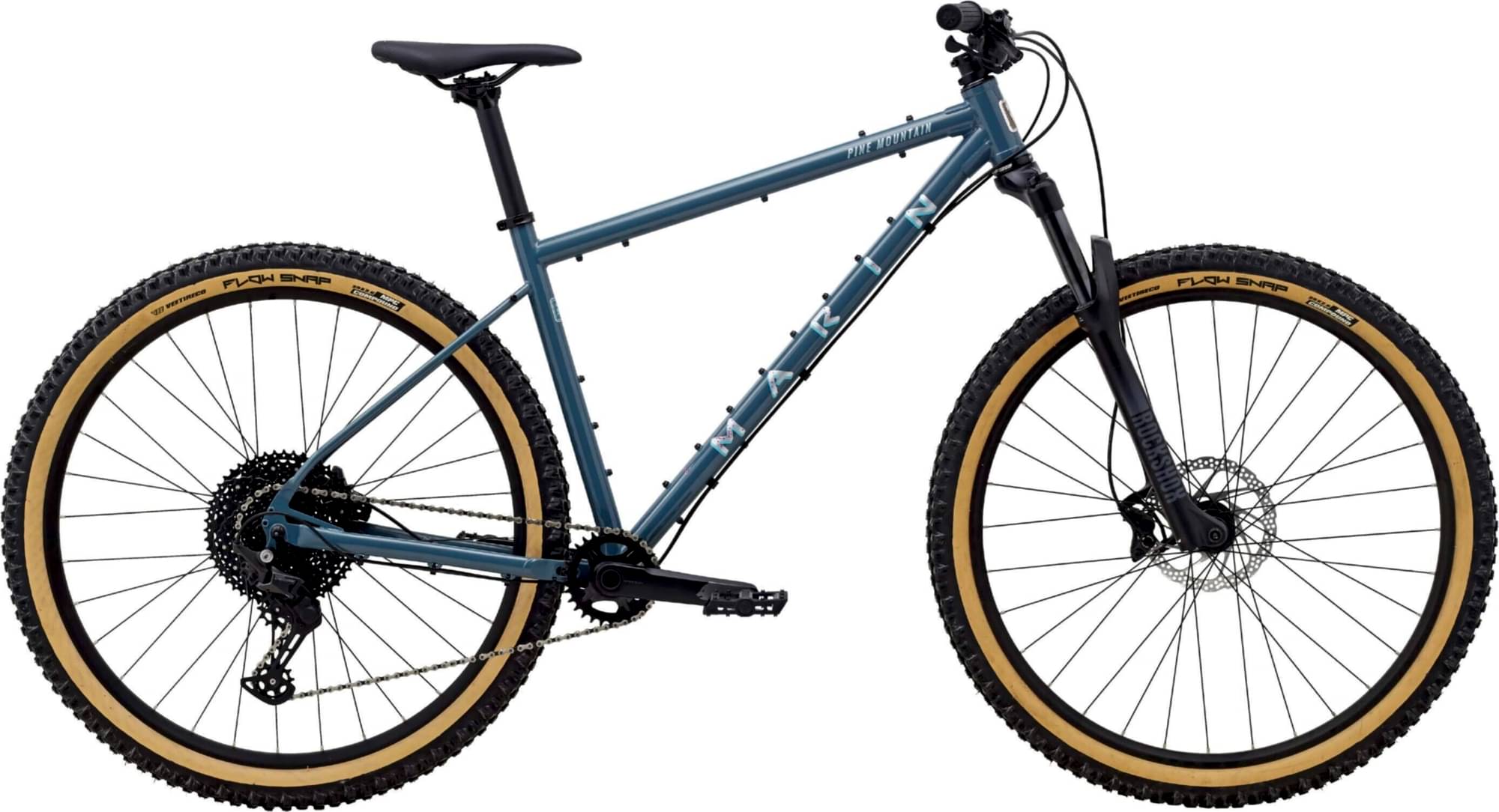

Pine Mountain 1 is a Marin Pine model. 21 bikes variations carry this model name so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Marin Pine Mountain 1 2024 is the most affordable bike of this model and has a price of 1499$. On the other hand, Marin Pine Mountain 2 2024, is the most expensive and costs 2399$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Marin Pine Mountain 1 price was 1499$. If we compare this with the average Trail bike cost we notice that the price is 84.26% lower.
Overview of components
Fork
This bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
When leaving the production line, the Pine Mountain 1 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Pine Mountain 1 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Marin Pine Mountain 1 bike has 4 sizes, in the range of 160 cm – 190 cm (5.25 ft – 6.23 ft). In conclusion, it won’t take much to find one that’s right for you.
